LAN-4
[CAN]
PRECAUTIONS
Precautions for Trouble Diagnosis
BKS001IP
CAN SYSTEM
● Do not apply voltage of 7.0 V or higher to the measurement terminals.
● Use the tester with its open terminal voltage being 7.0 V or less.
● Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before
checking the circuit.
Precautions for Harness Repair
BKS001IQ
CAN SYSTEM

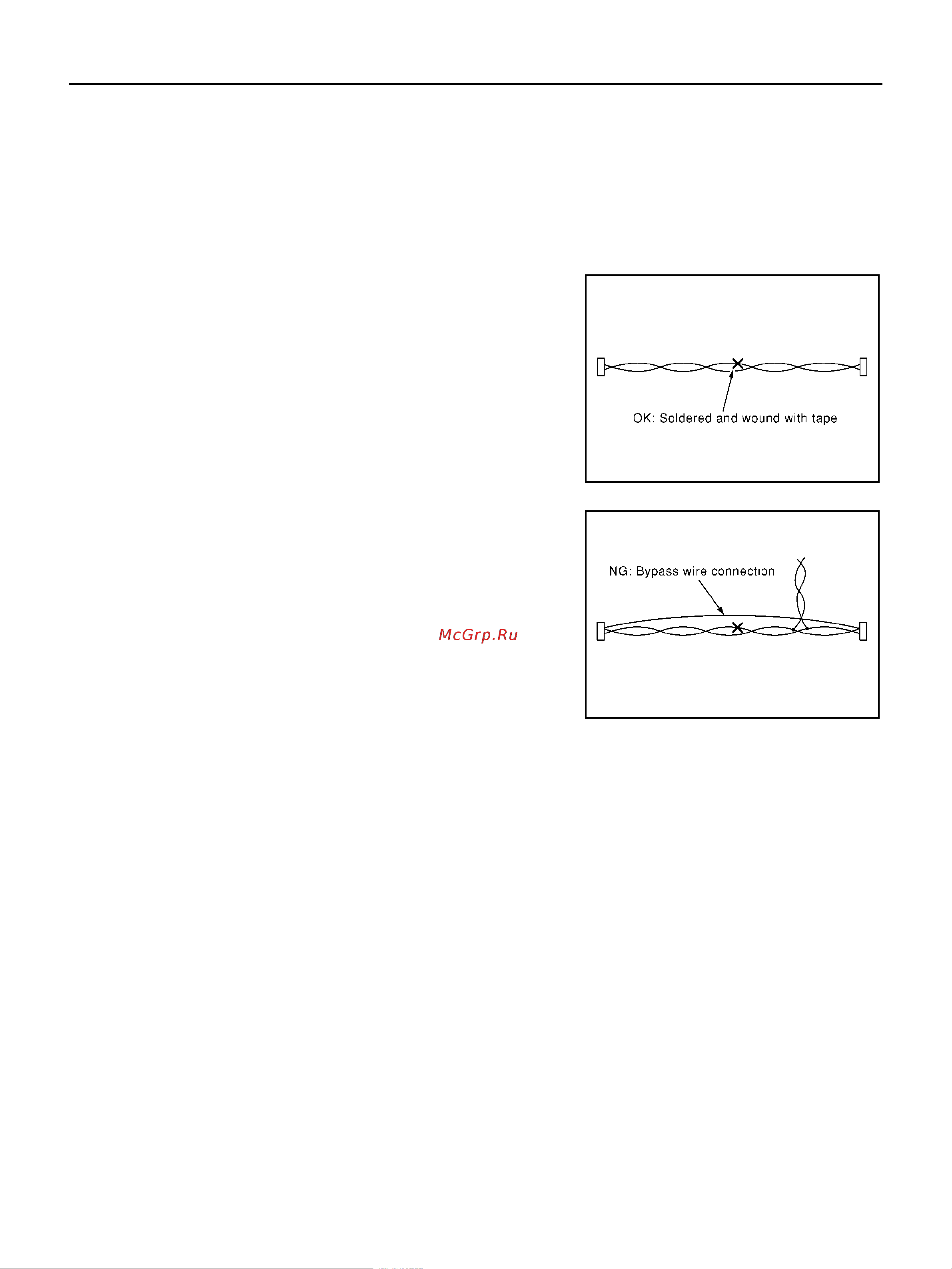

● Solder the repaired parts, and wrap with tape. [Frays of twisted
line must be within 110 mm (4.33 in).]
● Do not perform bypass wire connections for the repair parts.
(The spliced wire will become separated and the characteristics
of twisted line will be lost.)
PKIA0306E
PKIA0307E
