TROUBLE DIAGNOSES WORK FLOW
LAN-11
[CAN]
C
D
E
F
G
H
I
J
L
M
A
B
LAN

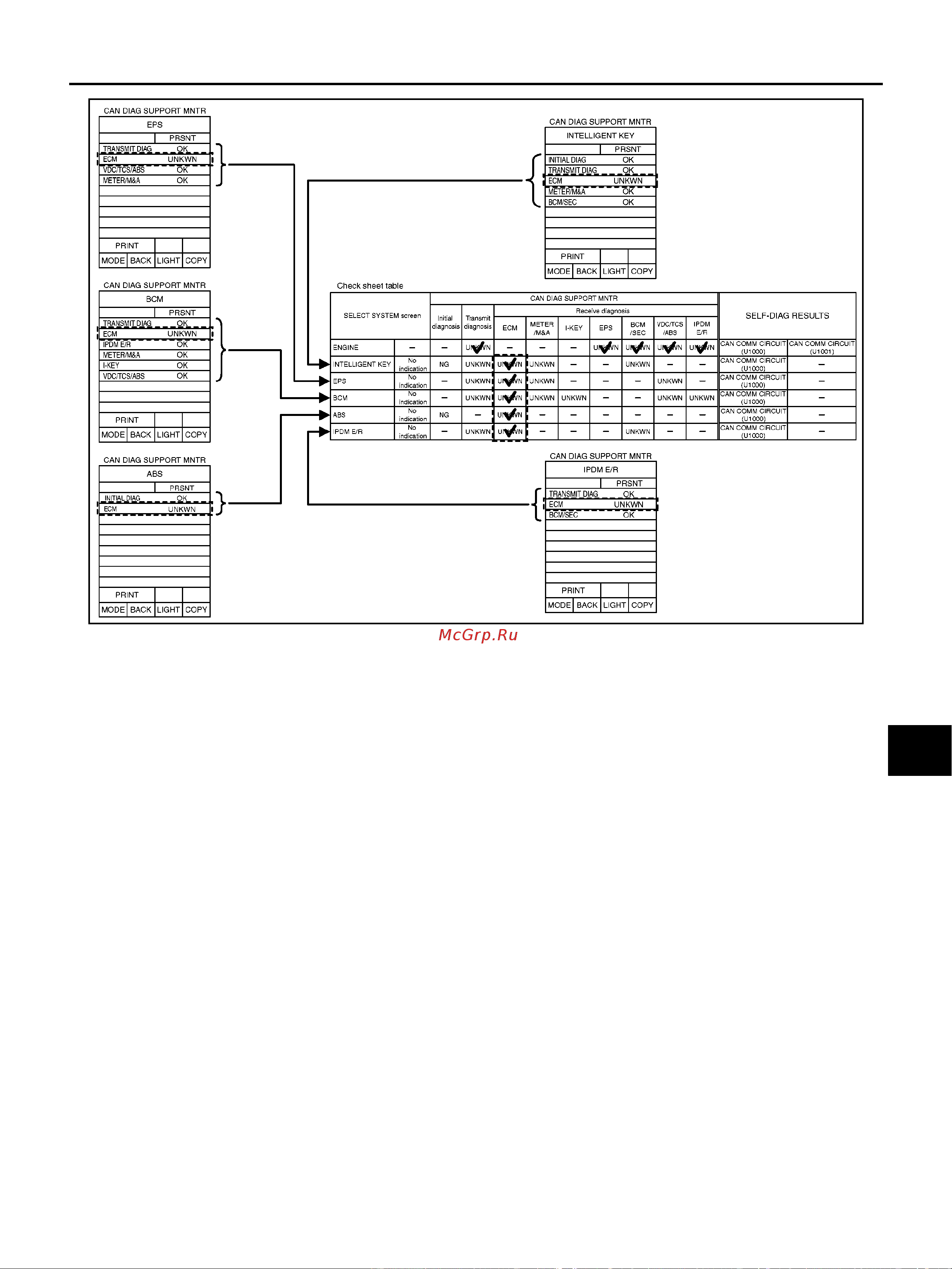

3. Confirm the unit name that “UNKWN” is displayed on the copy of “CAN DIAG SUPPORT MNTR” screen
of “INTELLIGENT KEY”, “EPS”, “BCM”, “ABS” and “IPDM E/R” as well as “ENGINE”. And then, put a
check mark to the check sheet table.
NOTE:
● For “INTELLIGENT KEY”, “UNKWN” is displayed on “ECM”. Put a check mark to it.
● For “EPS”, “UNKWN” is displayed on “ECM”. Put a check mark to it.
● For “BCM”, “UNKWN” is displayed on “ECM”. Put a check mark to it.
● For “ABS”, “UNKWN” is displayed on “ECM”. Put a check mark to it.
● For “IPDM E/R”, “UNKWN” is displayed on “ECM”. Put a check mark to it.
PKIC9391E
