Setting the Image Conversion Method in Detail
Images can be converted as desired using RGB balance adjustment and 4-step threshold adjust-
ment.
z Click “Dithering”.
The Dithering screen will appear.
x Click “OFF”.
c Click “Details”.

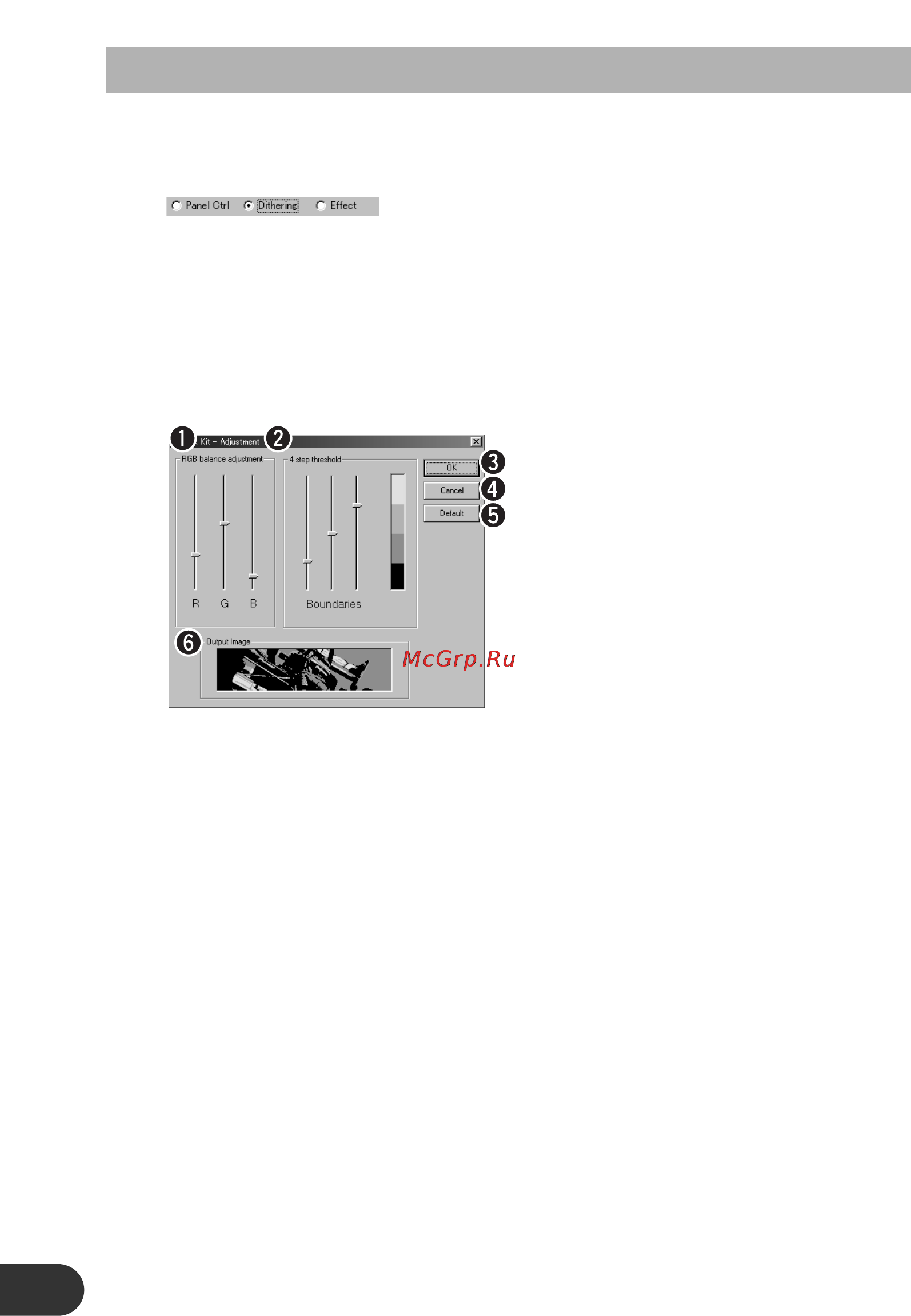

The Image Conversion Detailed Settings screen will appear.
v Set the conversion method in detail.
q RGB balance adjustment: The balance of R (red), G (green) and B (blue) are adjusted
to enhance colors that became hard to see during image con-
version.
w 4-step threshold: The range of each step during 4-step conversion can be set
using threshold values. Conversion can be made by widening
the range of steps to enhance from the original image.
e OK: Confirms the adjustment contents and closes the Image
Conversion Detailed Settings screen.
r Cancel: Cancels the adjustment contents and closes the Image
Conversion Detailed Settings screen.
t Default: Returns the adjustment contents to the default settings.
y Output Image: Displays the output image of after the adjustment.
b When completed with settings, click “OK”.
The setting contents will be reflected on the image and the Image Conversion Detailed
Setting screen will be closed.
