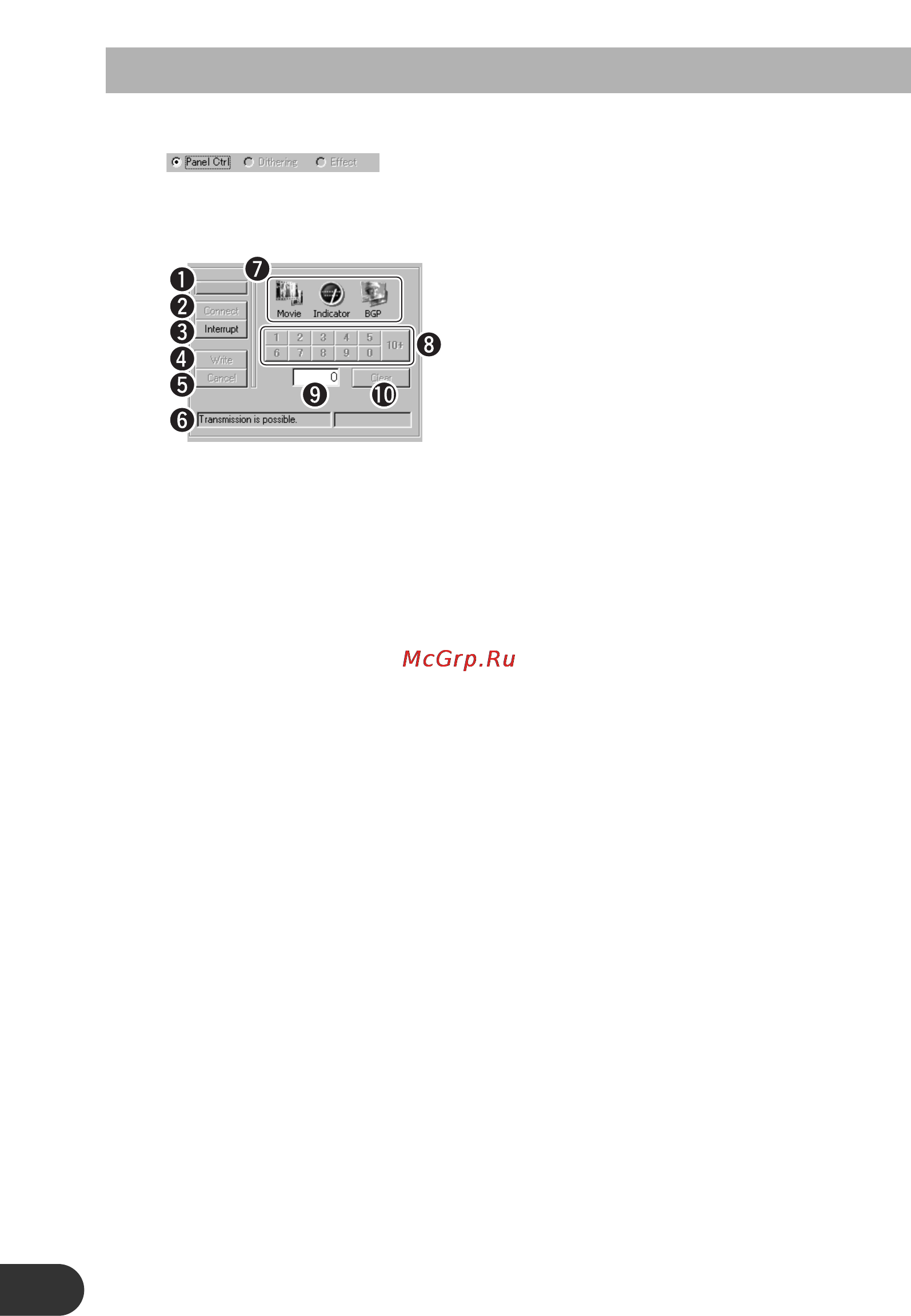

Writing Images to the Front Panel
z Click “Panel Ctrl”.
The Front Panel Communication screen will appear.
x Click “Connect”.
q Lamp: The lamp will light green when communication with the
front panel is being performed correctly.The lamp will flash
during connection.
w Connect: Starts communication with the front panel.
e Interrupt: Terminates communication with the front panel.
r Write: Writes opened image data to the selected image number.
(Writing cannot be performed if the correct image type and
image number are not selected.)
t Cancel: Cancels the writing process. (For movies, frames that have
been written prior to the cancel operation will be stored in
the front panel memory.)
y Communication information: Communication status with the front panel is displayed.
u Selecting an image type: Display and write image type (Movie, Indicator, BGP) can
be selected. (When writing images, writing cannot be per-
formed if the same image type as the opened data is not
selected.)
i Designating numbers: Display and write image number can be specified.When
specifying a 2 digit number, first click “10+” and then enter
the 2nd digit.The allowed numbers vary depending on the
selected image type. Furthermore, blue numbers indicate
image numbers that can be rewritten. (Black numbers are
for display-purposes only and cannot be rewritten.)
o Number display box: Currently selected image number is displayed.
!0 Clear: The image number displayed in the number display box is
canceled.
Note:
• For Indicator, only Indicator images the Pioneer homepage can be written.
(Indicator images cannot be created with this software.)
• For movies, the writing process will take 5 – 10 minutes. Since the writing process will take
longer with preview playback on, stop preview playback before starting the write process.
26
