IDE RAID Drives Configuration (GigaRAID) - 6 -

Ác

Åé

¤¤

¤å

Auto Configuration

Auto Configuration will guide you to set an array and this is the simplest and fastest way to create

your first array. You should see a screen similar to Figure 6 below after pressing 1 from the Main Menu.

Auto Configuration Menu: You can use the ARROW keys or SPACEBAR to cycle through RAID mode

options under the Setup Array Type as item. The supported RAID modes include RAID0, RAID1,

RAID0+1, JBOD, and Normal (standard ATA mode). The folllowing is an example of RAID 0 creation.

Array Configuration: This section displays the information about the RAID set you select, such as RAID

mode and RAID array size.

After selecting the RAID mode, press CTRL+Y to save the settings. Press Y to confirm your selection.

And press any key to return to the Main Menu. This action completes RAID configuration.



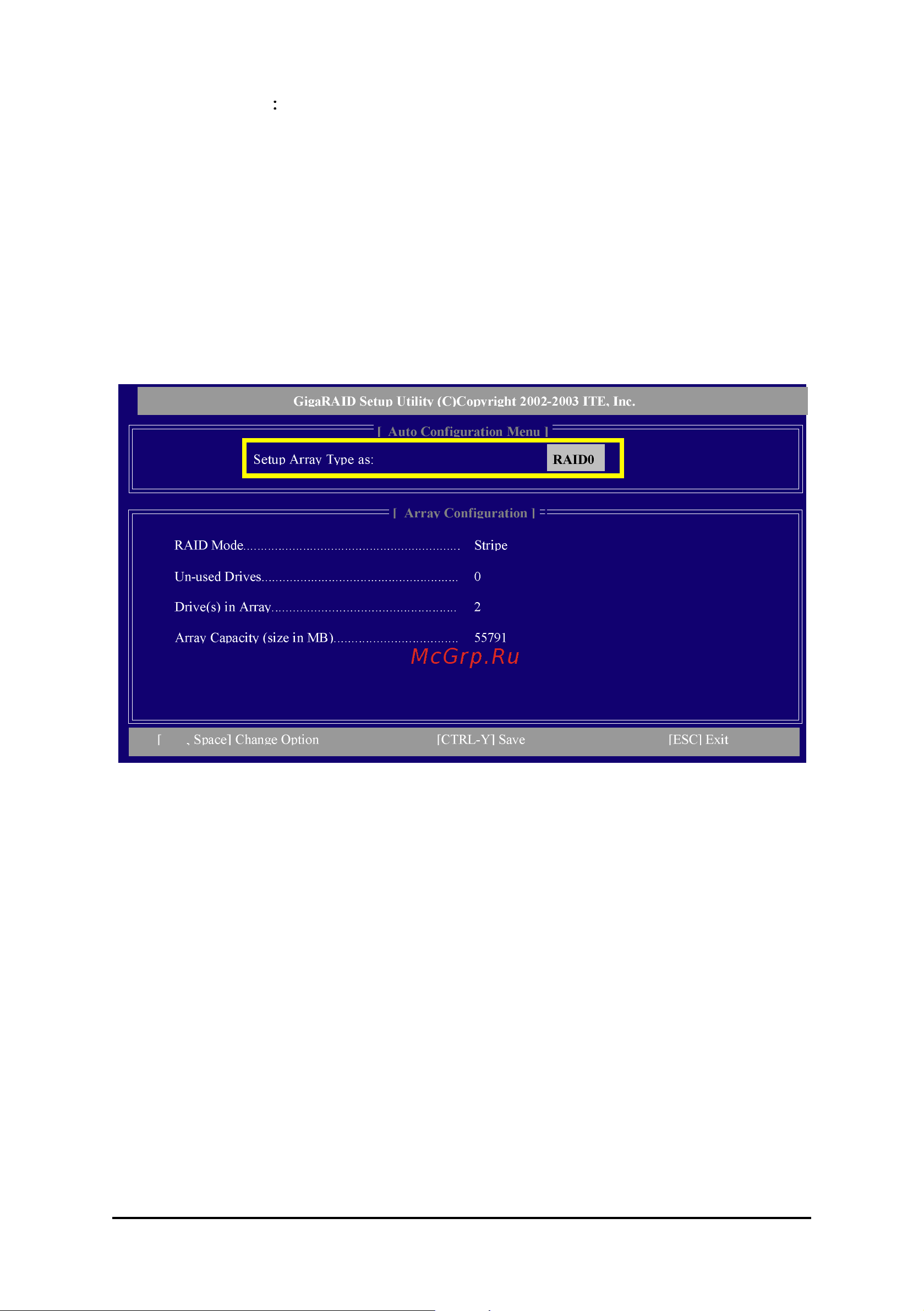

Figure 6
