Configuring IDE RAID Hard Drive Страница: 11

Gigabyte GA-8I915P Duo Pro Configuring IDE RAID Hard Drive онлайн [11/14] 44293

VIA VT6410 IDE RAID Drives Configuration- 11 -

Step 3:

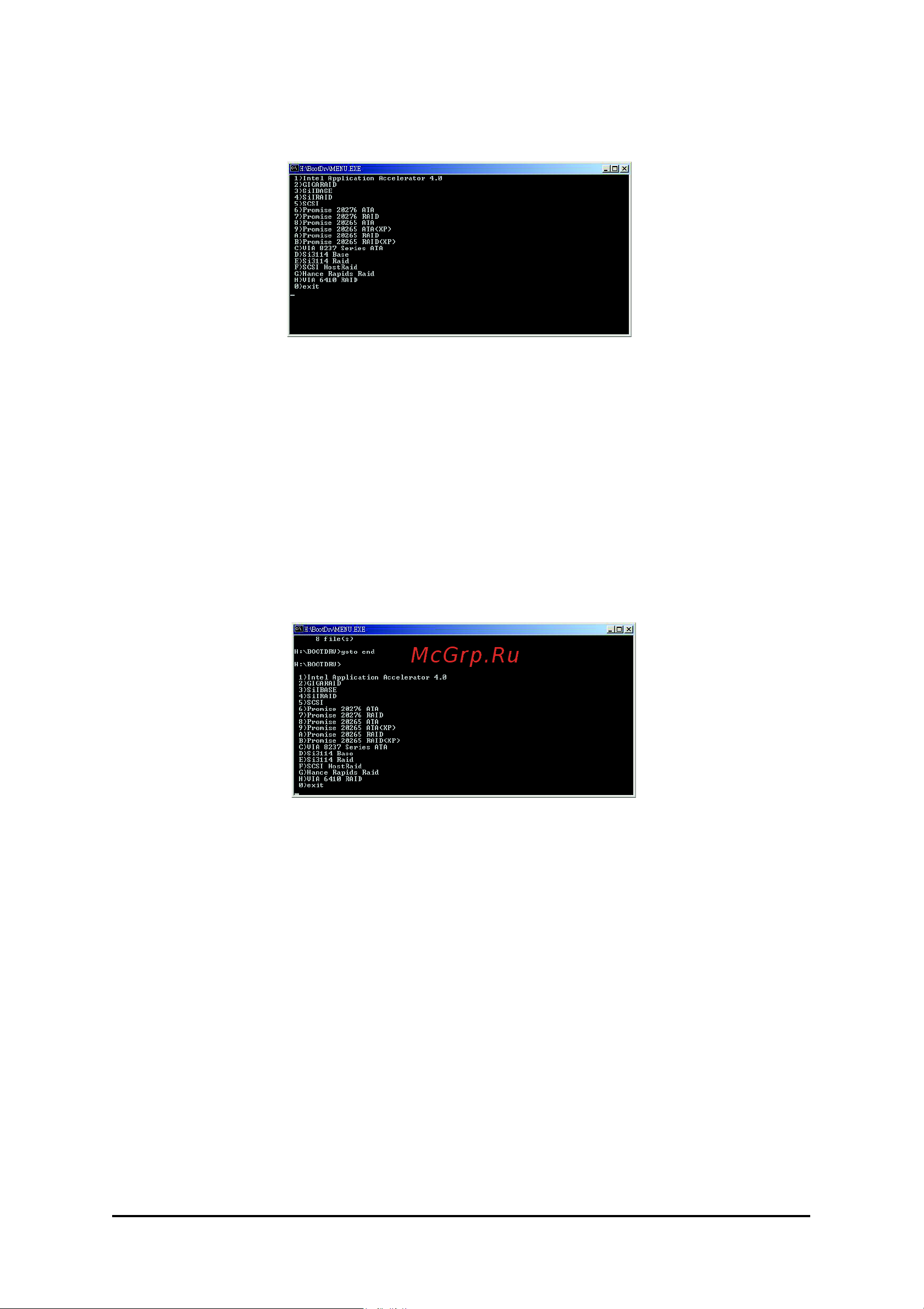

Double-click MENU.exe. An MS-DOS prompt screen similar to Figure 16 will appear.

Figure 17

Figure 16

Step 4:

Insert an empty floppy disk and press H to select VIA 6410 RAID. Then it will take about one minute

to copy the IDE RAID driver from the motherboard driver CD to the floppy disk.

Step 5:

Press 0 to exit when the procedure is completed (Figure 17). You have copied the IDE RAID driver

successfully.
