Daikin RZQ100B7W1B [35/48] Piping diagram

Daikin RZQ200B7W1B [35/48] Piping diagram
2
7
Split Sky Air • Outdoor Units
33
Outdoor Units • R410A • RZQ-B

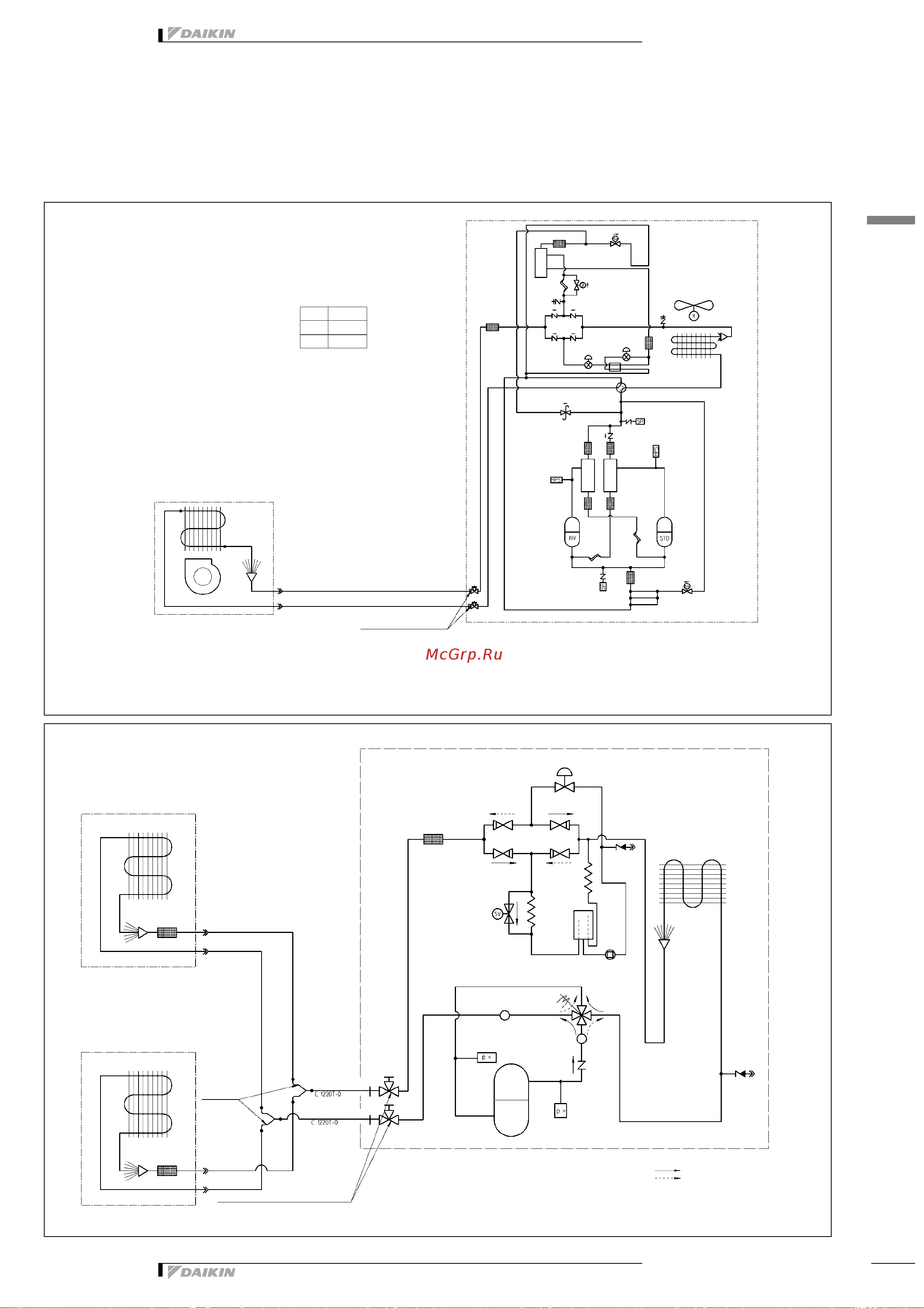

7 Piping diagram
3TW26565-1
RZQ200-250B (Pair)
Low pressure sensor
Indoor heat
exchanger
Fan
Stop valve (with service port on field piping
side J 7.9mm flare connection)
Filter
Electronic expansion
valve
Check
valve
High pressure switch
Compressor
Receiver
Heat exchanger pipe
Check
valve
Check valve
Check
valve
Outdoor unit
O
Check valve
L
Flare connection
M
Screw connection
N
Flange connection Z Pinched pipe
P
Spinned pipe
Pressure
regulating
valve
Filter
Solenoid
valve
High pressure
switch
Solenoid
valve
Filter
Capillary
tube
Capillary tube
4-way valve
Capillary
tube
Field piping J22.20
Field piping J A
Check
valve
Note: The pipes between the branch and the
indoor units should have the same size as the
indoor connections.
Indoor unit
Electronic expansion
valve
Fan
Solenoid
valve
Heat exchanger
Filter
Filter
Filter
Filter
Filter
High pressure sensor
Compressor
Oil separator
Oil separator
A Model
9.52 RZQ200B
12.70 RZQ250B
3TW26735-2
RZQ71B (Twin)
Indoor unit
Field piping J15.9
Field piping J9.5
Low pressure
sensor
Heat exchanger
Filter
Stop valve
(with service port 5/16’ flare)
Filter
Electronic expansion
valve
4-way valve
Compressor
Receiver
Service port
5/16
Heat exchanger
Muffler
One way valve
One way valve One way valve
Outdoor unit
O
Check valve
L
Flare connection
M
Screw connection
N
Flange connection Z Pinched pipe
P
Spinned pipe
Heating
Cooling
One way valve
Service port
5/16
High pressure
switch
One way
valve
Muffler
Capillary
tube
Strainer
Solenoid valve
Filter
Heat exchanger
Indoor unit
Field piping
Field piping
Branch duct
connection
Field piping
Field piping
Option
Note: 1. The pipes between the branch and the indoor units should have the same
size as the indoor connections.
