Daikin RZQ100B7W1B [42/48] Sound data
![Daikin RZQ125B7W1B [42/48] Sound data](/views2/1794902/page42/bg2a.png)
• Outdoor Units • R410A • RZQ-B
• Split Sky Air • Outdoor Units
40
2
9

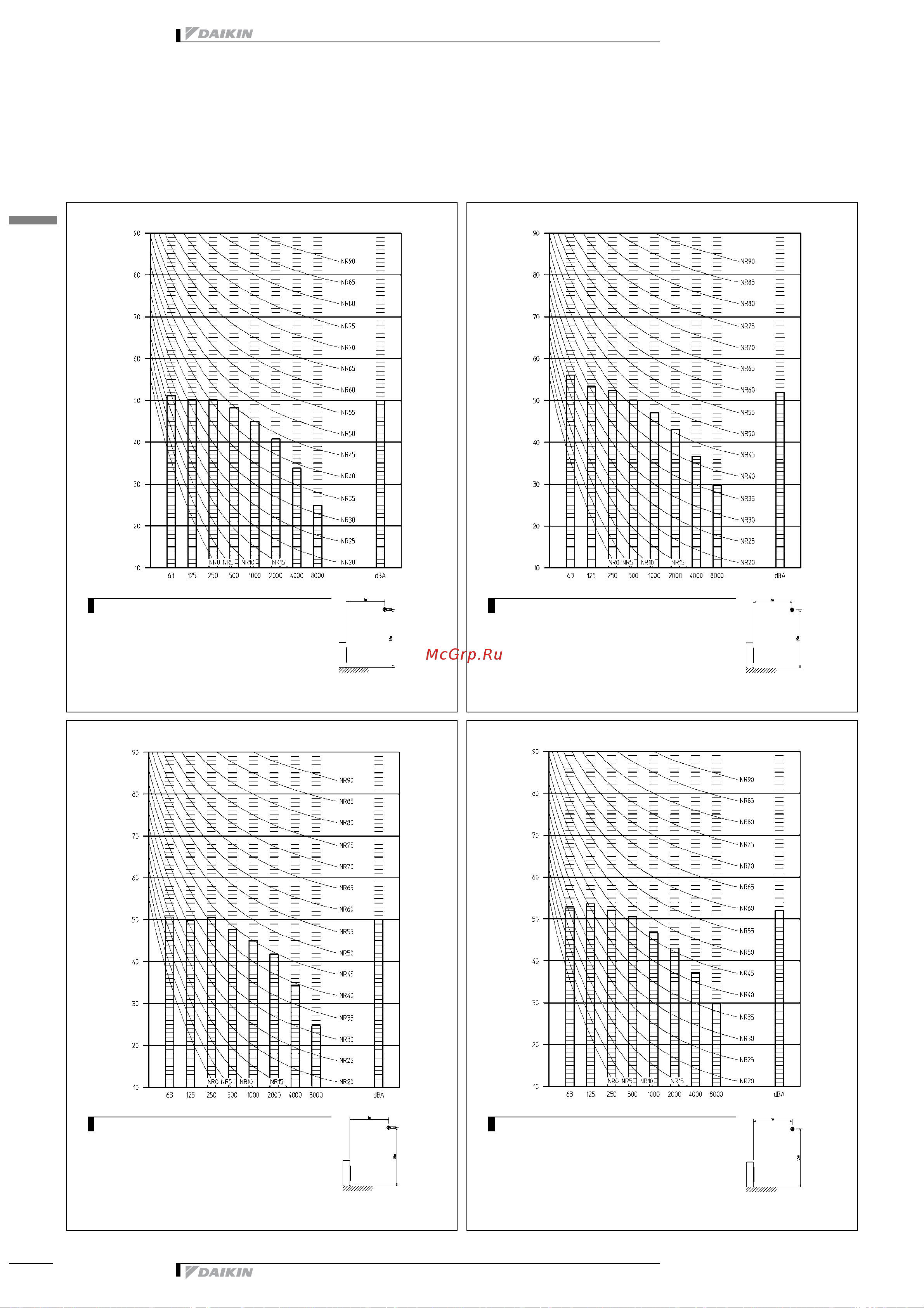

9 Sound data
9 - 1 Sound pressure spectrum
3TW26757-1
Sound pressure level [dB(A)]
Octave band center frequency (Hz)
RZQ125B8V3B - Cooling
RZQ125B7W1B
NOTES
1 Data is valid at free field condition
2 Data is valid at nominal conditions.
3
dB(A) = A-weighted sound pressure level (A-scale
according to IEC)
4 Reference acoustic pressure 0dB = 20μPa
Measuring location
(discharge side)
3TW26757-2
Sound pressure level [dB(A)]
Octave band center frequency (Hz)
RZQ125B8V3B - Heating
RZQ125B7W1B
NOTES
1 Data is valid at free field condition
2 Data is valid at nominal conditions.
3
dB(A) = A-weighted sound pressure level (A-scale
according to IEC)
4 Reference acoustic pressure 0dB = 20μPa
Measuring location
(discharge side)
3TW26787-1
Sound pressure level [dB(A)]
Octave band center frequency (Hz)
RZQ140B8V3B - Cooling
NOTES
1 Data is valid at free field condition
2 Data is valid at nominal conditions.
3
dB(A) = A-weighted sound pressure level (A-scale
according to IEC)
4 Reference acoustic pressure 0dB = 20μPa
Measuring location
(discharge side)
3TW26787-2
Sound pressure level [dB(A)]
Octave band center frequency (Hz)
RZQ140B8V3B - Heating
NOTES
1 Data is valid at free field condition
2 Data is valid at nominal conditions.
3
dB(A) = A-weighted sound pressure level (A-scale
according to IEC)
4 Reference acoustic pressure 0dB = 20μPa
Measuring location
(discharge side)
