9 x Technical data
Daikin EKSRPS4
Daikin Control and pump unit for solar systems
008.1624644 – 08/2015
Operating and installation instructions
41

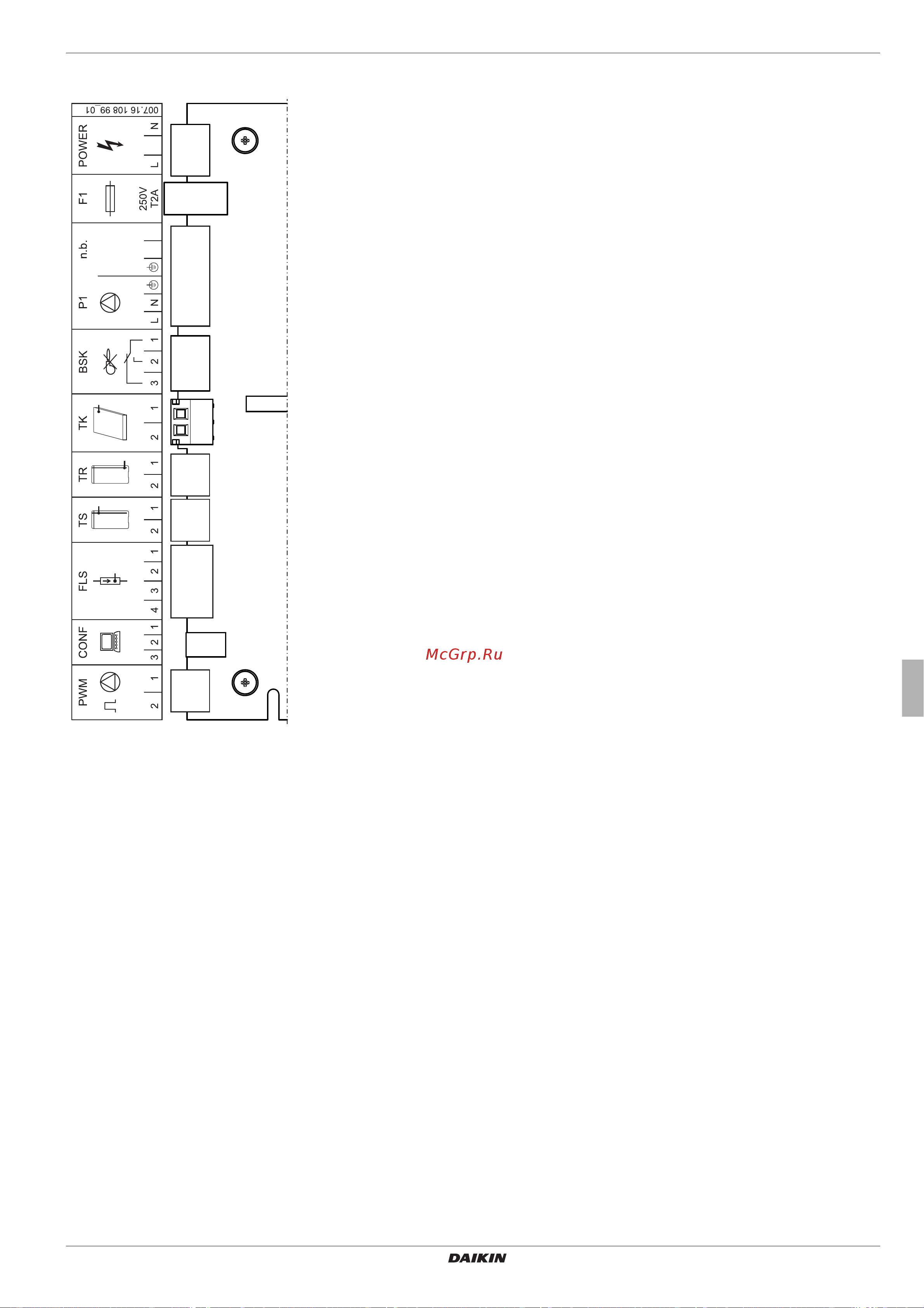

9.3 Connection allocation EKSRPS4 controller
BSK Burner inhibit contact
CONF
Programming socket for
Software update
F1 Fuse
FLS FlowSensor
n. B. not used
P1 Solar operating pump
Power
Mains supply
PWM
external pump connec-
tion (PWM-signal)
TS Storage cylinder temper-
ature sensor
TR Return flow temperature
sensor
TK Collector temperature
sensor
Fig. 9-3 Connection assignment
