Operating and installation instructions
6
Daikin EKSRPS4
Daikin Control and pump unit for solar systems
008.1624644 – 08/2015
3 x Product description
3 Product description
3.1 Design and components of the solar system

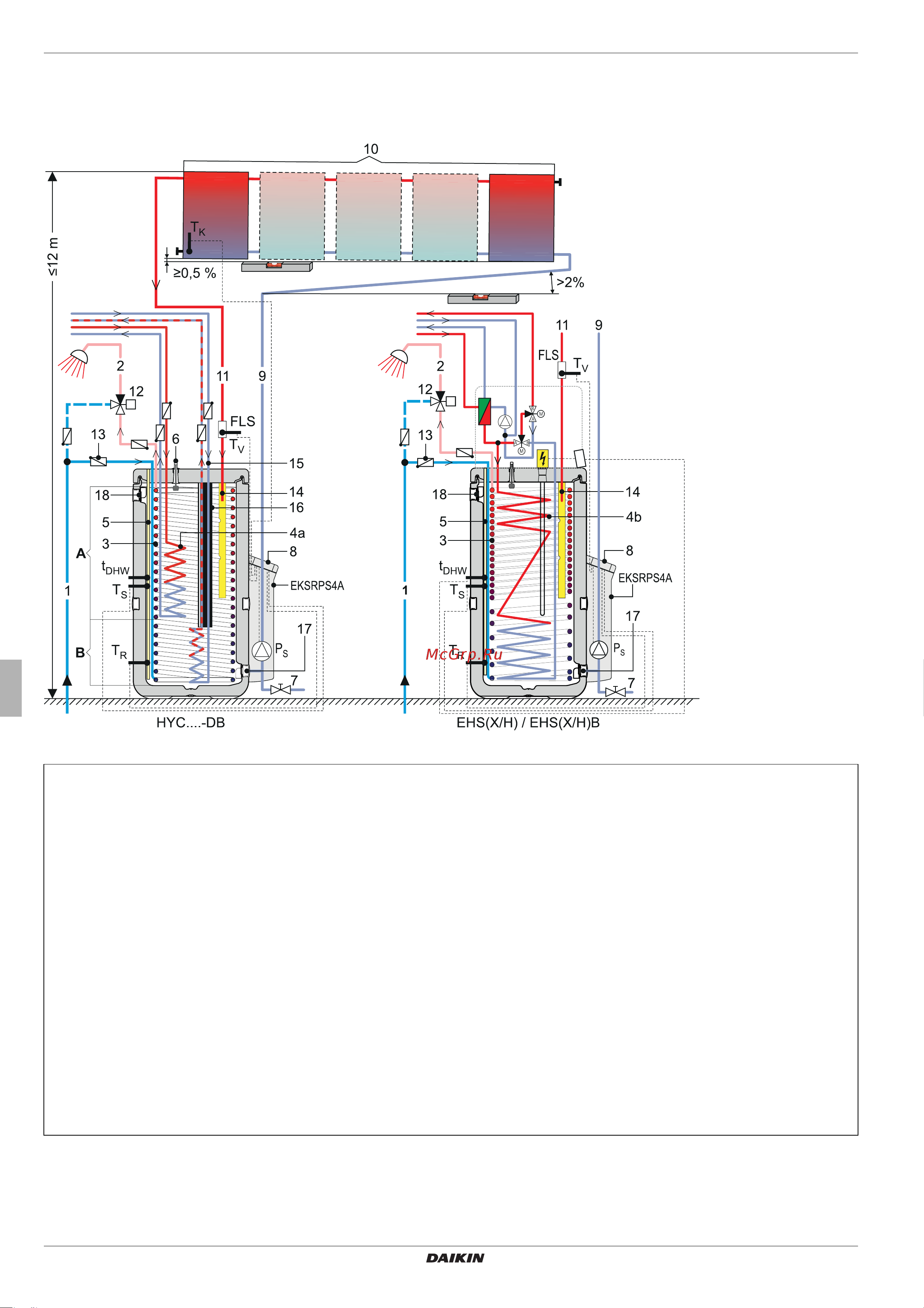

Fig. 3-1 Standard design of a Daikin solar system (Daikin recommends a double-sided connection)
1 Cold water connection line
2 Domestic water (hot) distribution line
3 Stainless steel corrugated heat exchanger for domestic water
(hot)
4a Stainless steel corrugated heat exchanger for storage tank charg-
ing
4b Stainless steel corrugated heat exchanger for storage tank charg-
ing and heating support
5 Submersion sleeve for storage, return temperature sensors
6 Fill level display
7 Filling and draining cock (KFE BA accessory)
8 Solar R4 controller
9 Solar return line (at the bottom on the solar panel)
10 Solar panel array
11 Solar flow line (at the top on the solar panel)
12 Thermal mixing valve (scalding protection, provided by customer)
13 Convection brake (accessory)
14 Solar flow layering pipe
15 Corrugated stainless steel heat exchanger for heating support
16 Thermal insulation sleeve for corrugated stainless steel heat ex-
changer for heating support
17 Solar return connection
18 Safety overflow connection
A Zone with water for domestic use
B Solar zone
FLS Solar FlowSensor (flow measurement)
P
S
Solar operating pump
EKSRPS4
Control and pump unit for solar systems
t
DHW
Storage temperature sensor
T
K
Solar panel temperature sensor
T
R
Solar return flow temperature sensor
T
S
Solar storage tank temp. sensor
T
V
Solar flow temperature sensor
EHS(X/H)B
Solar tank with integrated interior heat pump device
HYC - DB
EKHWP energy storage
Tab. 3-1 Legend for fig. 3-1
