CAUTION

• Perform correct motor-pump alignment. Special attention must be given to pulley and exible coupling drives

(max acceptable angle discrepancy 3°).

• In case of pulley application, it may be necessary to reduce the allowed performances. In those cases please

contact the Manufacturer’s After-Sales Service

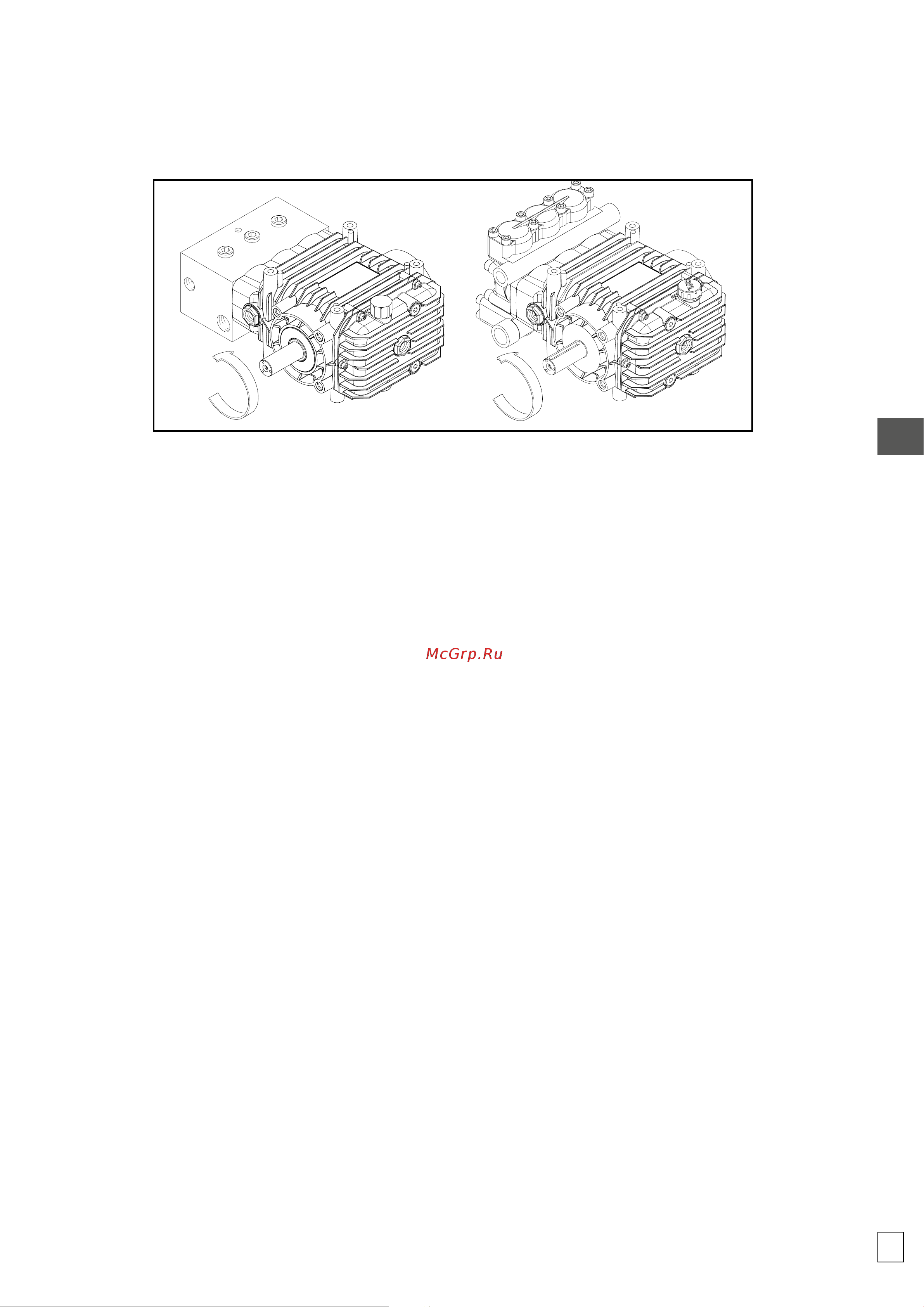

• Keep to the exact direction of rotation as indicated in the illustration:

• Pump application must be such that during operation, an oil temperature of 80 °C/176 °F is never exceeded.

• If the pump is painted on the outside, protect the water drainage area located between the head and the crankcase

and the PTO oil guard.

For the main dimensions, refer to Fig. 1.

The pumps of the CL-CLW series are available in versions for various applications:

• solid shaft;

• solid through shaft;

• available for SAE C hydraulic motor with four holes.

The Manufacturer’s After-Sales Service is at the disposal of Skilled Technicians to provide all related information:

• to identify the most suitable application and its correct execution;

• as regards the precautions to be adopted in the event of continuous operation being required;

• as regards particularly heavy-duty use.

The pump applications must, in any case, be performed according to the best rules of mechanical engineering.
