- Built in 23
- Condensate 23
- English section d 23
- Included with the slim duct unit is factory pr ovided insulating tape this tape should be placed voer the refrigerant piping connections at the indoor unit to prevent sweating 23
- Installation page 23 23
- Introduction overview 23
- Pump and float switch 23

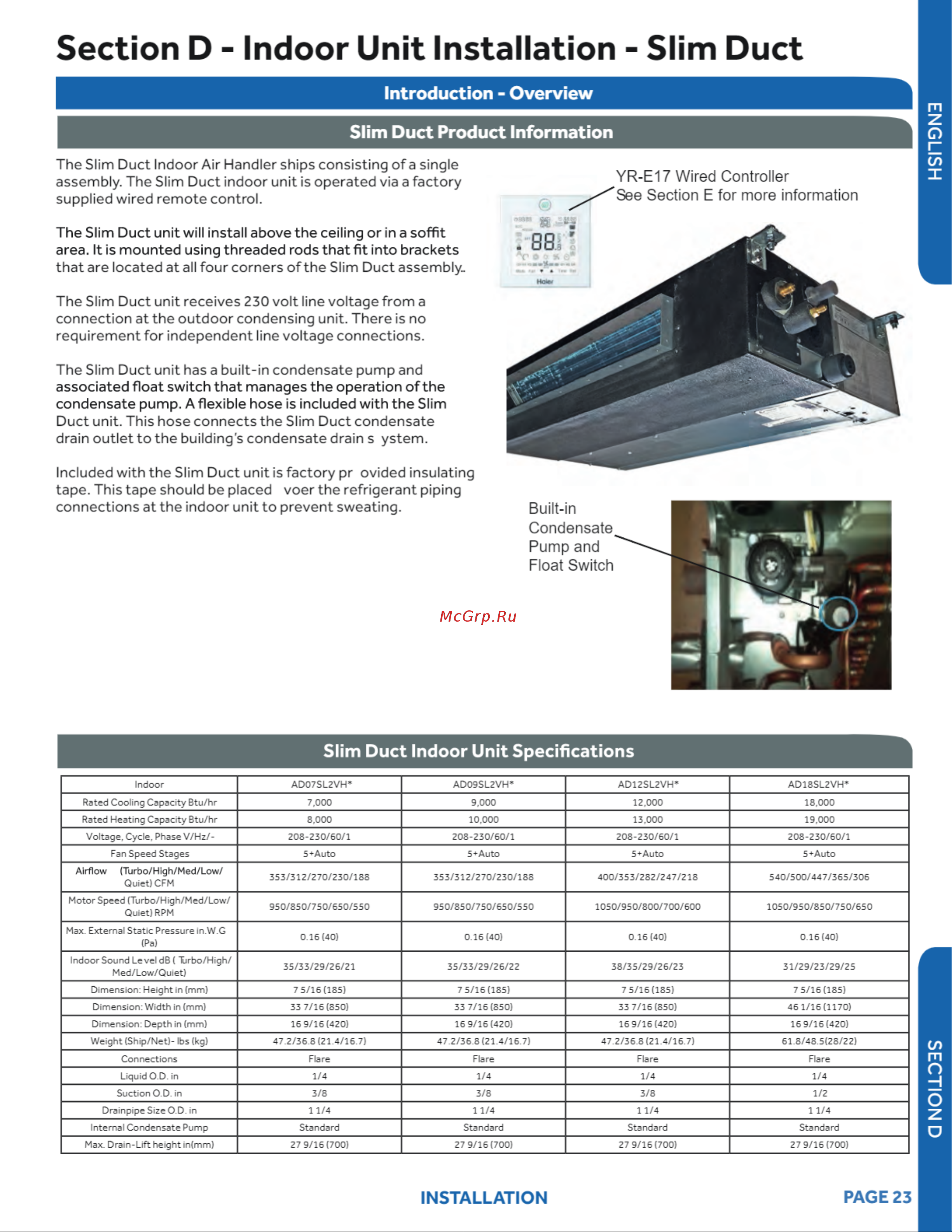

- Section d indoor unit installation slim duct 23
- Slim duct indoor unit specifications 23
- Slim duct product information 23
- The slim duct indoor air handler ships consisting of a single assembly the slim duct indoor unit is operated via a factory supplied wired remote control 23
- The slim duct unit has a built in condensate pump and associated float switch that manages the operation of the condensate pump a flexible hose is included with the slim duct unit this hose connects the slim duct condensate drain outlet to the building s condensate drain s ystem 23
- The slim duct unit receives 230 volt line voltage from a connection at the outdoor condensing unit there is no requirement for independent line voltage connections 23
- The slim duct unit will install above the ceiling or in a soffit area it is mounted using threaded rods that fit into brackets that are located at all four corners of the slim duct assembly 23
- Yr e17 wired controller see section e for more information 23
