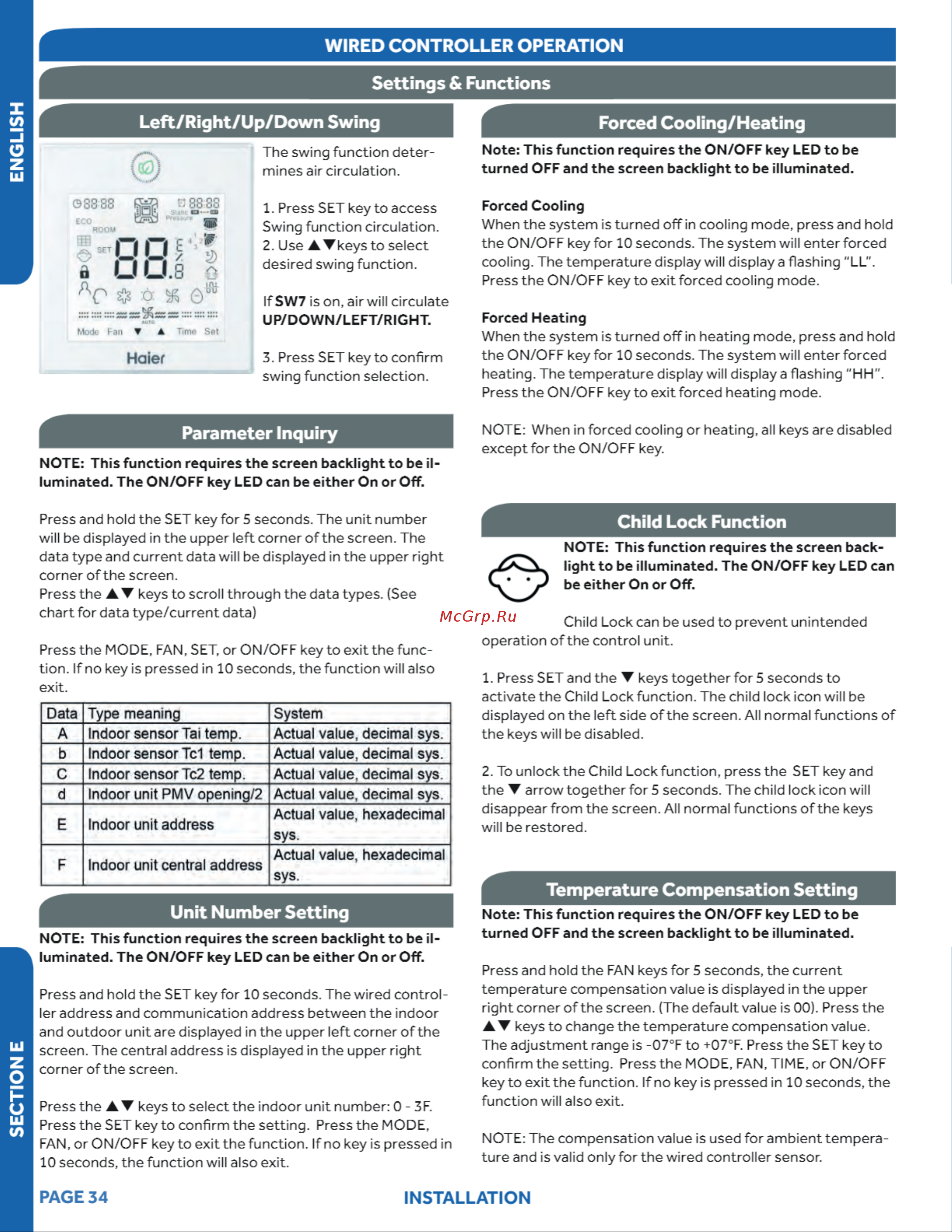

WIRED CONTROLLER OPERATION ENGLISH Settings Functions Left Right Up Down Swing 88 88 W ROOM К a tnt Forced Cooling Heating The swing function deter mines air circulation Note This function requires the ON OFF key LED to be turned OFF and the screen backlight to be illuminated 1 Press SET key to access Swing function circulation 2 Use AV keys to select desired swing function Forced Cooling When the system is turned off in cooling mode press and hold the ON OFF key for 10 seconds The system will enter forced cooling The temperature display will display a flashing LL Press the ON OFF key to exit forced cooling mode If SW7 is on air will circulate UP DOWN LEFT RIGHT Mode Fan A mt Set Haier 3 Press SET key to confirm swing function selection Forced Heating When the system is turned off in heating mode press and hold the ON OFF key for 10 seconds The system will enter forced heating The temperature display will display a flashing HH Press the ON OFF key to exit forced heating mode NOTE When in forced cooling or heating all keys are disabled except for the ON OFF key Parameter Inquiry NOTE This function requires the screen backlight to be il luminated The ON OFF key LED can be either On or Off Press and hold the SET key for 5 seconds The unit number will be displayed in the upper left corner of the screen The data type and current data will be displayed in the upper right corner of the screen Press the AV keys to scroll through the data types See chart for data type current data Press the MODE FAN SET or ON OFF key to exit the func tion If no key is pressed in 10 seconds the function will also exit Data A b C d E F System Actual value decimal sys Actual value decimal sys Actual value decimal sys Actual value decimal sys Actual value hexadecimal Indoor unit address sys Actual value hexadecimal Indoor unit central address sys Type meaning Indoor sensor Tai temp Indoor sensor Tc1 temp Indoor sensor Tc2 temp Indoor unit PMV opening 2 Child Lock Function NOTE This function requires the screen back light to be illuminated The ON OFF key LED can be either On or Off Child Lock can be used to prevent unintended operation ofthe control unit 1 Press SET and the V keys together for 5 seconds to activate the Child Lock function The child lock icon will be displayed on the left side of the screen All normal functions of the keys will be disabled 2 To unlock the Child Lock function press the SET key and the V arrow together for 5 seconds The child lock icon will disappear from the screen All normal functions of the keys will be restored Temperature Compensation Setting Unit Number Setting SECTION E NOTE This function requires the screen backlight to be il luminated The ON OFF key LED can be either On or Off Press and hold the SET key for 10 seconds The wired control ler address and communication address between the indoor and outdoor unit are displayed in the upper left corner of the screen The central address is displayed in the upper right corner of the screen Press the AV keys to select the indoor unit number 0 3F Press the SET key to confirm the setting Press the MODE FAN or ON OFF key to exit the function If no key is pressed in 10 seconds the function will also exit PAGE 34 Note This function requires the ON OFF key LED to be turned OFF and the screen backlight to be illuminated Press and hold the FAN keys for 5 seconds the current temperature compensation value is displayed in the upper right corner ofthe screen The default value is 00 Press the AV keys to change the temperature compensation value The adjustment range is 07 F to 07 F Press the SET key to confirm the setting Press the MODE FAN TIME or ON OFF key to exit the function If no key is pressed in 10 seconds the function will also exit NOTE The compensation value is used for ambient tempera ture and is valid only for the wired controller sensor INSTALLATION
