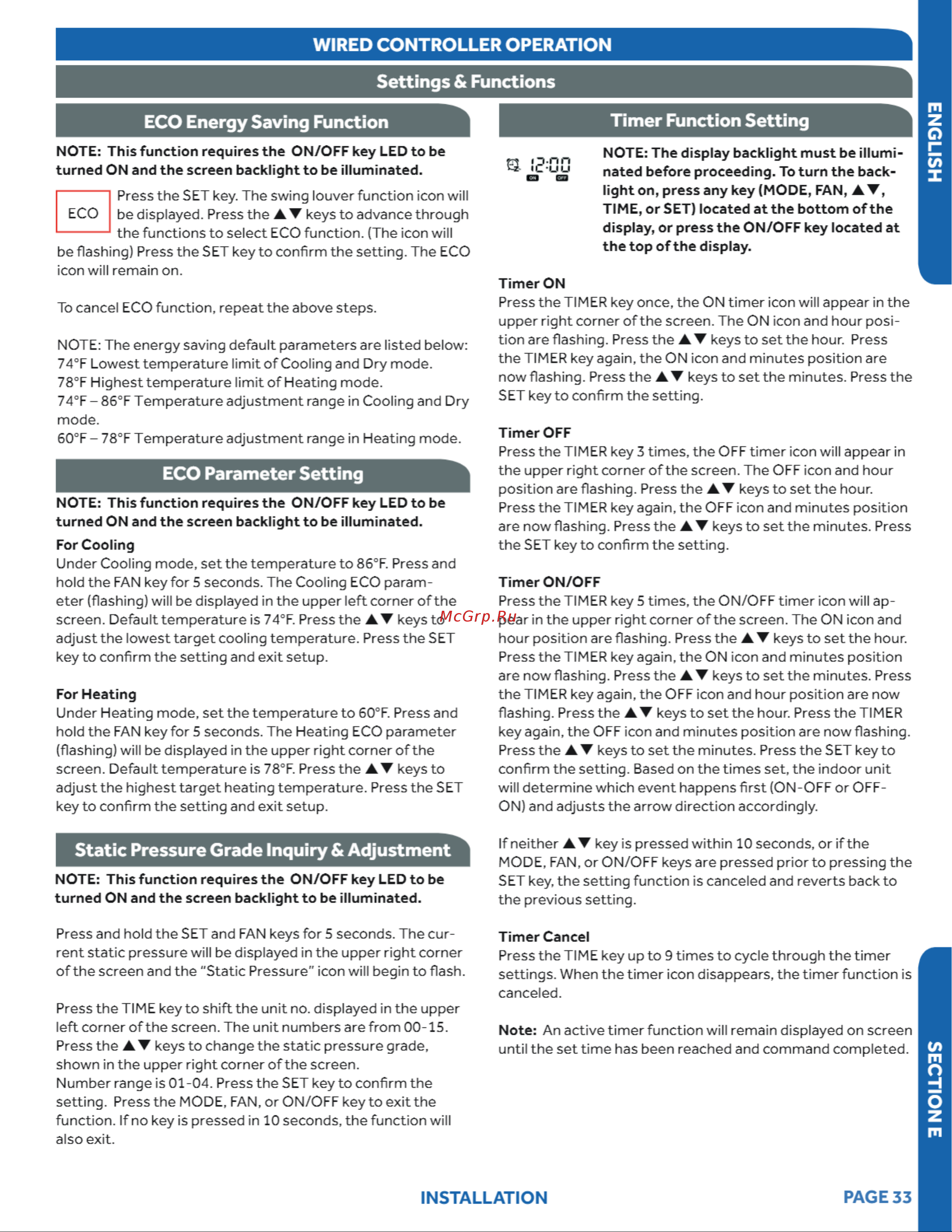

WIRED CONTROLLER OPERATION Settings Functions NOTE This function requires the ON OFF key LED to be Pt Q nn turned ON and the screen backlight to be illuminated Press the SET key The swing louver function icon will be displayed Press the AV keys to advance through the functions to select ECO function The icon will be flashing Press the SET key to confirm the setting The ECO icon will remain on ECO To cancel ECO function repeat the above steps NOTE The energy saving default parameters are listed below 74 F Lowest temperature limit of Cooling and Dry mode 78 F Highest temperature limit of Heating mode 74 F 86 F Temperature adjustment range in Cooling and Dry mode 60 F 78 F Temperature adjustment range in Heating mode ECO Parameter Setting NOTE This function requires the ON OFF key LED to be turned ON and the screen backlight to be illuminated For Cooling Under Cooling mode set the temperature to 86 F Press and hold the FAN key for 5 seconds The Cooling ECO param eter flashing will be displayed in the upper left corner of the screen Default temperature is 74 F Press the AV keys to adjust the lowest target cooling temperature Press the SET key to confirm the setting and exit setup For Heating Under Heating mode set the temperature to 60 F Press and hold the FAN key for 5 seconds The Heating ECO parameter flashing will be displayed in the upper right corner of the screen Default temperature is 78 F Press the AV keys to adjust the highest target heating temperature Press the SET key to confirm the setting and exit setup Static Pressure Grade Inquiry Adjustment NOTE This function requires the ON OFF key LED to be turned ON and the screen backlight to be illuminated Press and hold the SET and FAN keys for 5 seconds The cur rent static pressure will be displayed in the upper right corner of the screen and the Static Pressure icon will begin to flash Timer ON Press the TIMER key once the ON timer icon will appear in the upper right corner of the screen The ON icon and hour posi tion are flashing Press the AV keys to set the hour Press the TIMER key again the ON icon and minutes position are now flashing Press the AV keys to set the minutes Press the SET key to confirm the setting Timer OFF Press the TIMER key 3 times the OFF timer icon will appear in the upper right corner of the screen The OFF icon and hour position are flashing Press the AV keys to set the hour Press the TIMER key again the OFF icon and minutes position are now flashing Press the AV keys to set the minutes Press the SET key to confirm the setting Timer ON OFF Press the TIMER key 5 times the ON OFF timer icon will ap pear in the upper right corner of the screen The ON icon and hour position are flashing Press the AV keys to set the hour Press the TIMER key again the ON icon and minutes position are now flashing Press the AV keys to set the minutes Press the TIMER key again the OFF icon and hour position are now flashing Press the AV keys to set the hour Press the TIMER key again the OFF icon and minutes position are now flashing Press the AV keys to set the minutes Press the SET key to confirm the setting Based on the times set the indoor unit will determine which event happens first ON OFF or OFFON and adjusts the arrow direction accordingly If neither AV key is pressed within 10 seconds or if the MODE FAN or ON OFF keys are pressed prior to pressing the SET key the setting function is canceled and reverts back to the previous setting Timer Cancel Press the TIME key up to 9 times to cycle through the timer i settings When the timer icon disappears the timer function is I canceled Note An active timer function will remain displayed on screen I until the set time has been reached and command completed I INSTALLATION SECTION E Press the TIME key to shift the unit no displayed in the upper left corner of the screen The unit numbers are from 00 15 Press the A V keys to change the static pressure grade shown in the upper right corner of the screen Number range is 01 04 Press the SET key to confirm the setting Press the MODE FAN or ON OFF key to exit the function If no key is pressed in 10 seconds the function will also exit NOTE The display backlight must be illumi nated before proceeding To turn the back light on press any key MODE FAN AV TIME or SET located at the bottom of the display or press the ON OFF key located at the top of the display ENGLISH Timer Function Setting ECO Energy Saving Function PAGE 33
