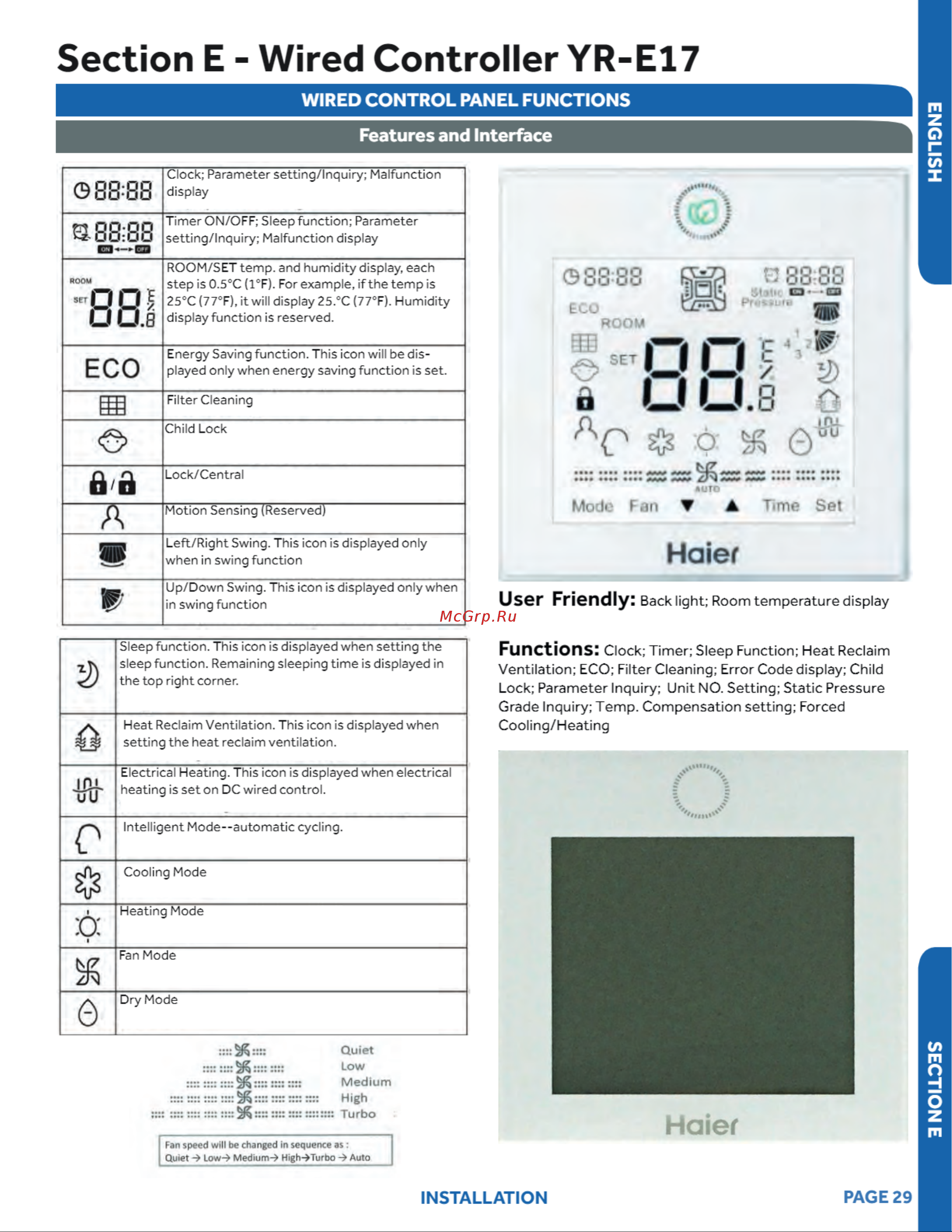

Section E Wired Controller YR E17 ENGLISH WIRED CONTROL PANEL FUNCTIONS Features and Interface 88 88 S88 88 EJ CT ROOM 881 ECO nn Clock Parameter setting lnquiry Malfunction display Timer ON OFF Sleep function Parameter setting lnquiry Malfunction display ROOM SET temp and humidity display each step is 0 5 C IT For example if the temp is 25 C 77 F it will display 25 C 77 F Humidity display function is reserved Energy Saving function This icon will be dis played only when energy saving function is set Filter Cleaning Child Lock ââ A Lock Central Motion Sensing Reserved Left Right Swing This icon is displayed only when in swing function r Up Down Swing This icon is displayed only when in swing function Sleep function This icon is displayed when setting the sleep function Remaining sleeping time is displayed in the top right corner Heat Reclaim Ventilation This icon is displayed when setting the heat reclaim ventilation Tu Haier User Friendly Back light Room temperature display Functions Clock Timer Sleep Function Heat Reclaim Ventilation ECO Filter Cleaning Error Code display Child Lock Parameter Inquiry Unit NO Setting Static Pressure Grade Inquiry Temp Compensation setting Forced Cooling Heating Electrical Heating This icon is displayed when electrical heating is set on DC wired control Intelligent Mode automatic cycling 1 П Cooling Mode Heating Mode Fan Mode Dry Mode Ô SECTION E as Quiet Й5 Low Medium я к its 5 ss ss High s ss Ж ss suss Turbo Haier Fan speed will be changed in sequence as Quiet Low Medium High Turbo Auto INSTALLATION PAGE 29
