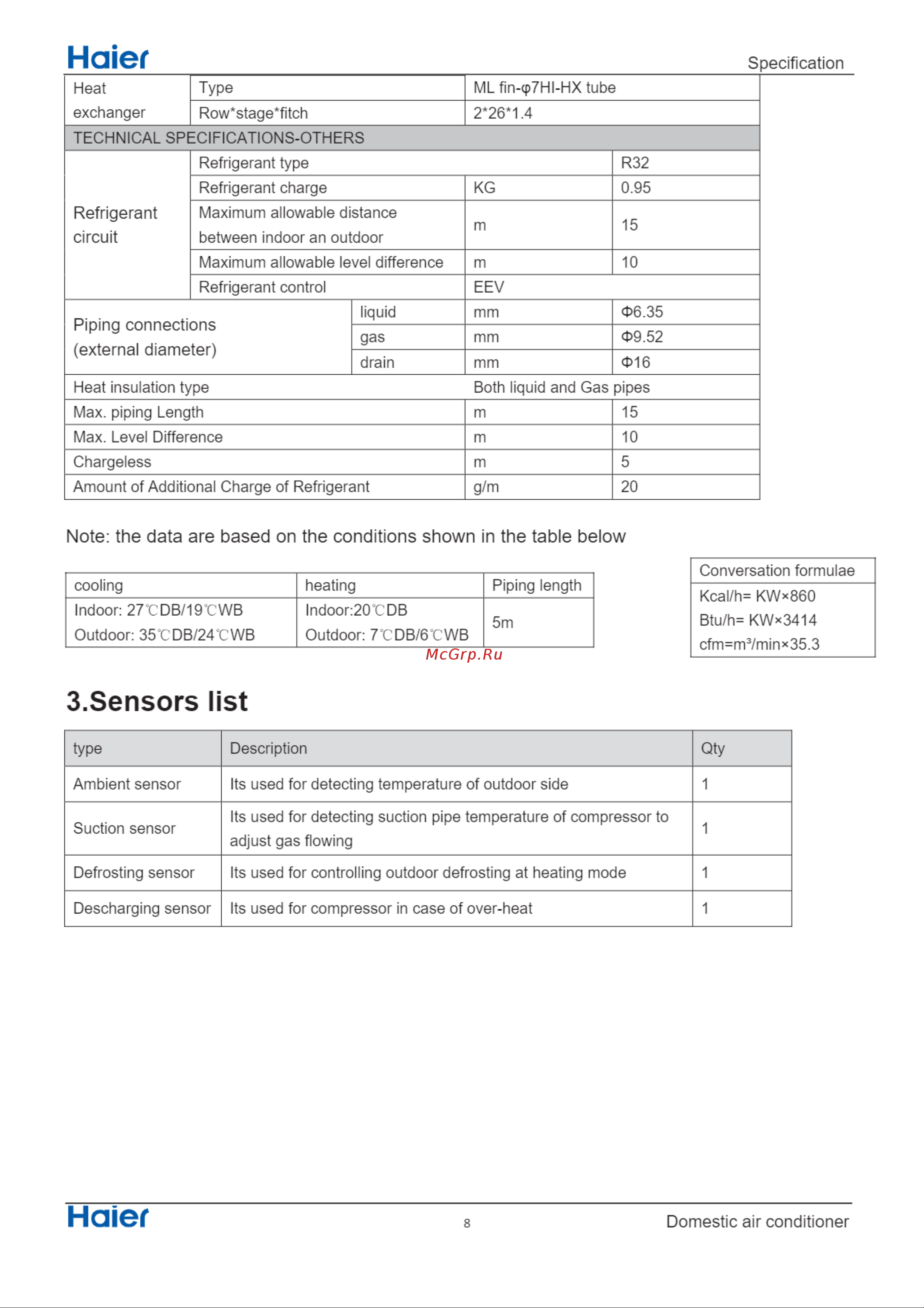

Haier Heat exchanger Specification ML fin p7HI HX tube Type Row stage fitch 2 26 1 4 TECHNICAL SPECIFICATIONS OTHERS Refrigerant type R32 Refrigerant charge Refrigerant circuit KG 0 95 m 15 Maximum allowable level difference m 10 Refrigerant control EEV Maximum allowable distance between indoor an outdoor Piping connections external diameter liquid mm Ф6 35 gas mm Ф9 52 drain mm Ф16 Heat insulation type Both liquid and Gas Dipes Max piping Length m 15 Max Level Difference m 10 Chargeless m 5 Amount of Additional Charge of Refrigerant g m 20 Note the data are based on the conditions shown in the table below cooling heating Indoor 27 CDB 19CWB lndoor 20 CDB Outdoor 35CDB 24CWB Outdoor 7 CDB 6 CWB Conversation formulae Piping length Kcal h KW 860 Btu h KW 3414 5m cfm m3 min 35 3 3 Sensors list type Description Qty Ambient sensor Its used for detecting temperature of outdoor side 1 Suction sensor Its used for detecting suction pipe temperature of compressor to adjust gas flowing 1 Defrosting sensor Its used for controlling outdoor defrosting at heating mode 1 Descharging sensor Its used for compressor in case of over heat 1 Haier 8 Domestic air conditioner
