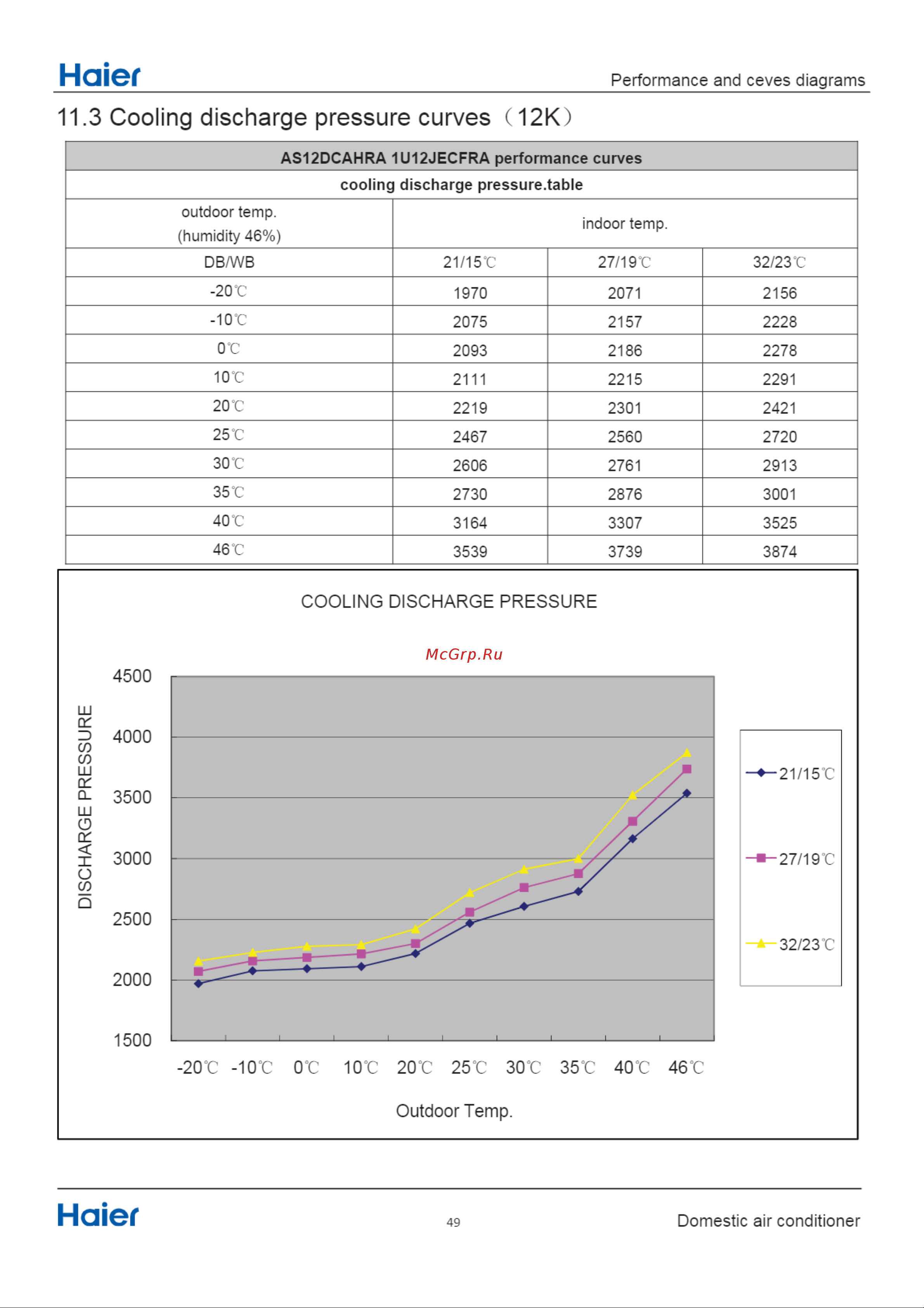

Haier Performance and ceves diagrams 11 3 Cooling discharge pressure curves 12K AS12DCAHRA 1U12JECFRA performance curves cooling discharge pressure table outdoor temp indoor temp humidity 46 DB WB 21 150 27 190 32 230 200 1970 2071 2156 10O 2075 2157 2228 OO 2093 2186 2278 10O 2111 2215 2291 200 2219 2301 2421 250 2467 2560 2720 300 2606 2761 2913 350 2730 2876 3001 400 3164 3307 3525 460 3539 3739 3874 COOLING DISCHARGE PRESSURE 21 150 27 190 32 230 Outdoor Temp Haier 49 Domestic air conditioner
