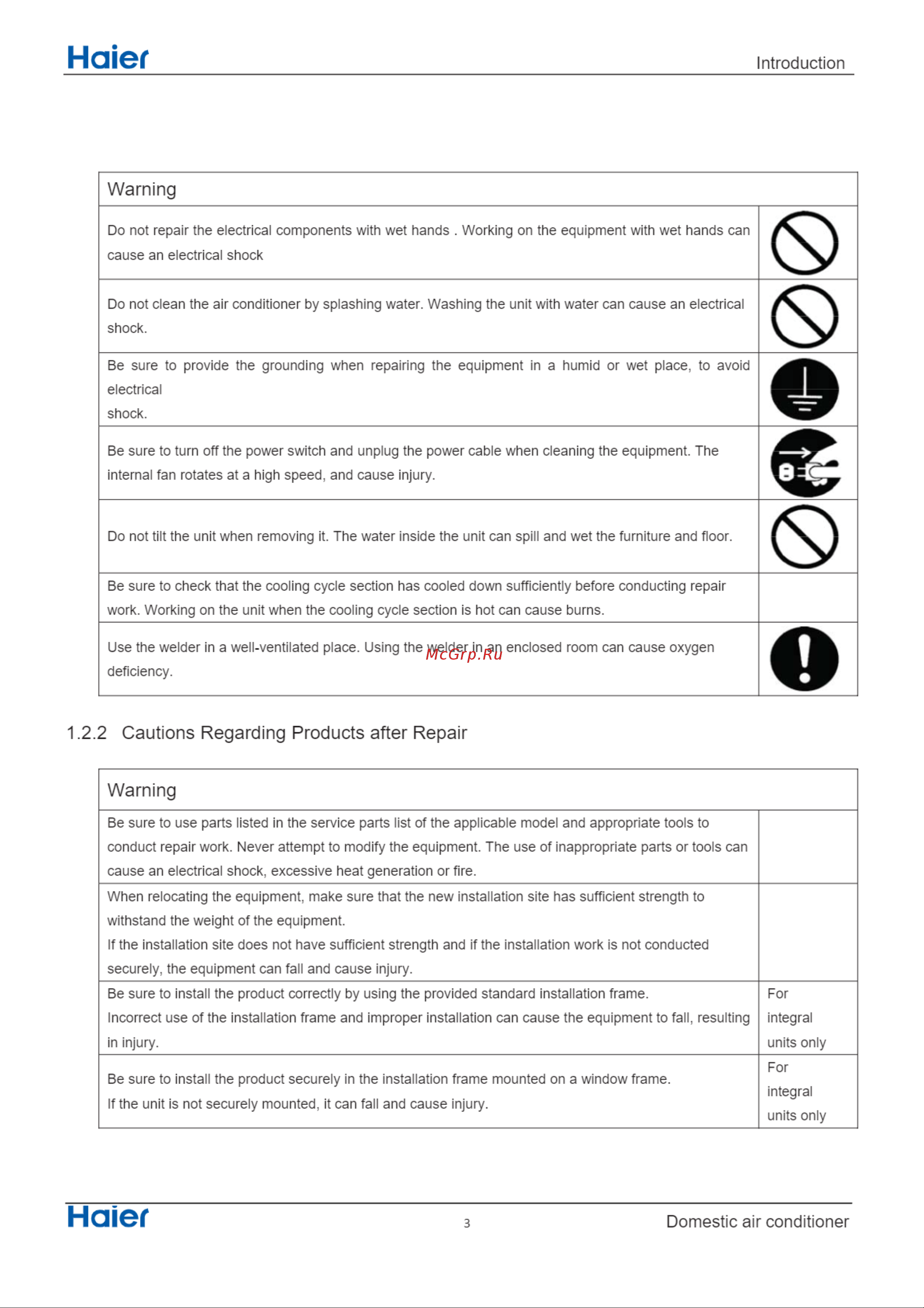

Haier Introduction Warning Do not repair the electrical components with wet hands Working on the equipment with wet hands can cause an electrical shock Do not clean the air conditioner by splashing water Washing the unit with water can cause an electrical shock о Be sure to provide the grounding when repairing the equipment in a humid or wet place to avoid electrical shock Be sure to turn off the power switch and unplug the power cable when cleaning the equipment The internal fan rotates at a high speed and cause injury Do not tilt the unit when removing it The water inside the unit can spill and wet the furniture and floor Be sure to check that the cooling cycle section has cooled down sufficiently before conducting repair work Working on the unit when the cooling cycle section is hot can cause burns Use the welder in a well ventilated place Using the welder in an enclosed room can cause oxygen deficiency 1 2 2 Cautions Regarding Products after Repair Warning Be sure to use parts listed in the service parts list of the applicable model and appropriate tools to conduct repair work Never attempt to modify the equipment The use of inappropriate parts or tools can cause an electrical shock excessive heat generation or fire When relocating the equipment make sure that the new installation site has sufficient strength to withstand the weight of the equipment If the installation site does not have sufficient strength and if the installation work is not conducted securely the equipment can fall and cause injury Be sure to install the product correctly by using the provided standard installation frame For Incorrect use of the installation frame and improper installation can cause the equipment to fall resulting integral in injury units only Be sure to install the product securely in the installation frame mounted on a window frame For integral If the unit is not securely mounted it can fall and cause injury Haier units only 3 Domestic air conditioner
