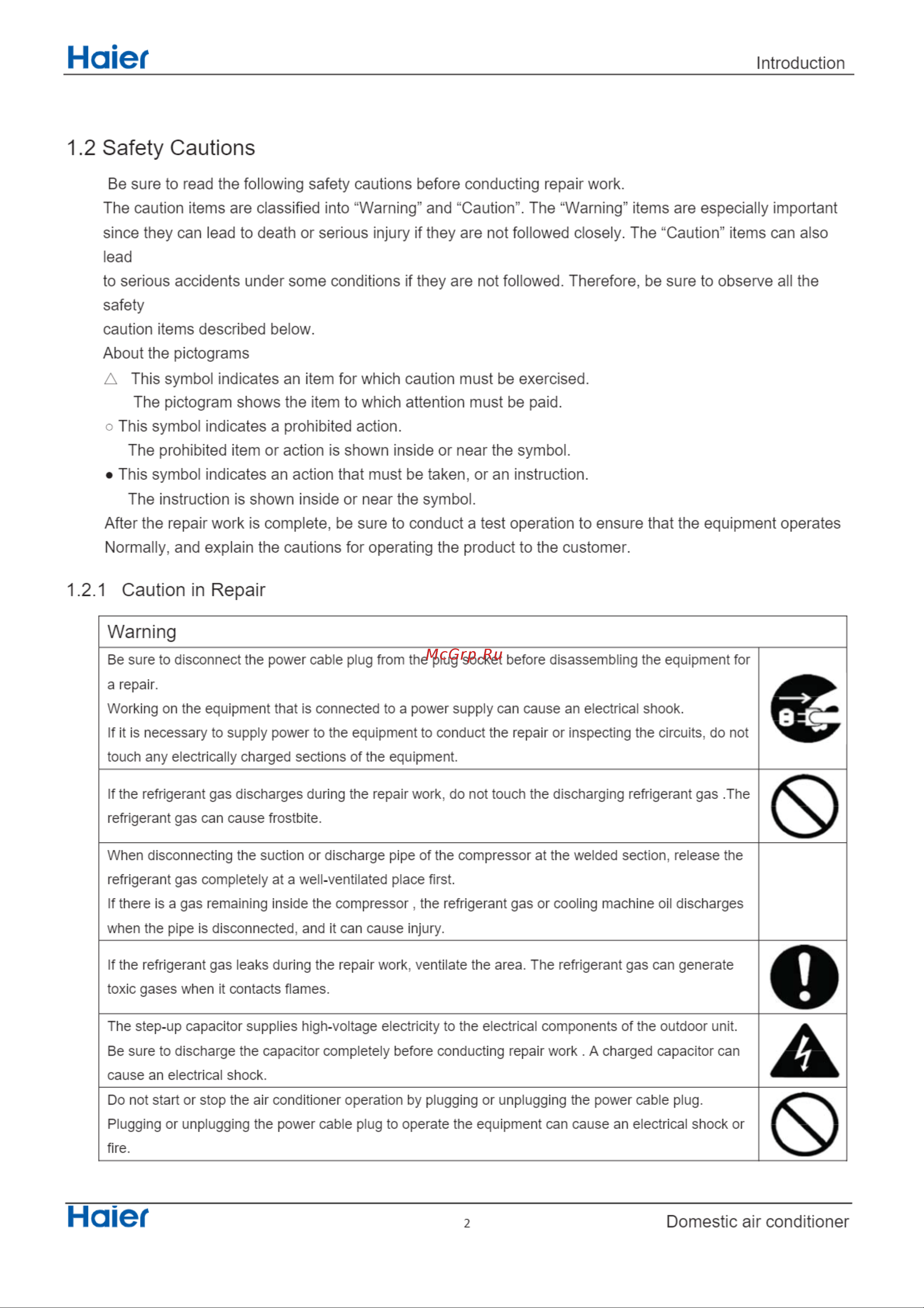

Haier Introduction 1 2 Safety Cautions Be sure to read the following safety cautions before conducting repair work The caution items are classified into Warning and Caution The Warning items are especially important since they can lead to death or serious injury if they are not followed closely The Caution items can also lead to serious accidents under some conditions if they are not followed Therefore be sure to observe all the safety caution items described below About the pictograms This symbol indicates an item for which caution must be exercised The pictogram shows the item to which attention must be paid o This symbol indicates a prohibited action The prohibited item or action is shown inside or near the symbol This symbol indicates an action that must be taken or an instruction The instruction is shown inside or near the symbol After the repair work is complete be sure to conduct a test operation to ensure that the equipment operates Normally and explain the cautions for operating the product to the customer 1 2 1 Caution in Repair Warning Be sure to disconnect the power cable plug from the plug socket before disassembling the equipment for a repair Working on the equipment that is connected to a power supply can cause an electrical shook If it is necessary to supply power to the equipment to conduct the repair or inspecting the circuits do not touch any electrically charged sections of the equipment If the refrigerant gas discharges during the repair work do not touch the discharging refrigerant gas The refrigerant gas can cause frostbite When disconnecting the suction or discharge pipe of the compressor at the welded section release the refrigerant gas completely at a well ventilated place first If there is a gas remaining inside the compressor the refrigerant gas or cooling machine oil discharges when the pipe is disconnected and it can cause injury If the refrigerant gas leaks during the repair work ventilate the area The refrigerant gas can generate toxic gases when it contacts flames The step up capacitor supplies high voltage electricity to the electrical components of the outdoor unit Be sure to discharge the capacitor completely before conducting repair work A charged capacitor can cause an electrical shock Do not start or stop the air conditioner operation by plugging or unplugging the power cable plug Plugging or unplugging the power cable plug to operate the equipment can cause an electrical shock or fire Haier 2 Domestic air conditioner
