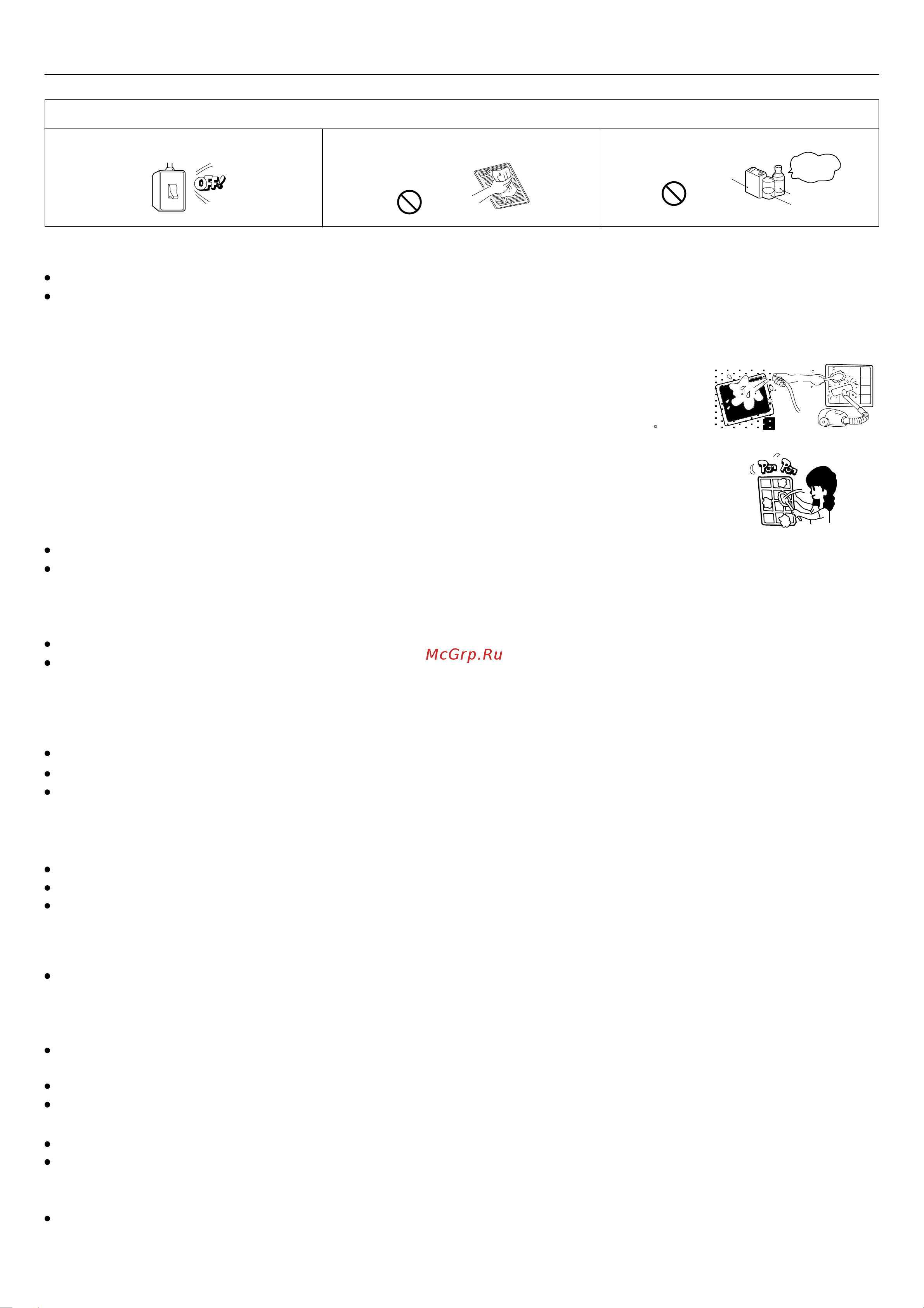

Points to observe
Turn off the power supply switch. Do not touch with wet hand. Do not use hot water or volatile liquid.
ON
OFF
Thinner
Do not
use!
Benzine
Tooth powder
Cleaning the air filter
Do not dry the air filter with fire.
Do not run the air conditioner without the air filter.
Pre-Season Care
See that there are no obstacles blocking the air inlet and air outlet of both indoor and outdoor units.
Make sure that the air filter is not dirty.
Cut in the power supply switch 12 hours before starting run.
Post-Season Care
Operate the unit with FAN mode on a fair day for about half a day to dry the inside of the unit well.
Stop operation and turn off the power supply switch. Electric power is consumed even the air conditioner is in stop.
Clean the air filter and set it in the place.
Care and Cleaning of the unit
Clean with soft and dry cloth.
If it is very dirty, dissolve neutral detergent in the lukewarm water and make the cloth wet with the water. After wiping,
clean off the detergent using clean water.
1.Clean the air filter by lightly tapping it or with the cleaner. It is more effective to clean
the air filter with water.
If the air filter is very dirty, dissolve neutral detergent in the lukewarm water (approx. 30 C),
rinse the air filter in the water, and thoroughly wash the air filter off the detergent
in the plain water.
2.After drying the air filter, set it up on the air conditioner.
Do not open the inlet grill until fan stops completely.
Fan will continue rotating for a while by the law of inertia after operation is being stopped.
CAUTION
CAUTION
IMPORTANT NOTES ABOUT THE OPERATION OF YOUR AIR CONDITIONER
AUTOMATIC RESTART AFTER POWER FALURE
If the air conditioner is operating during a power failure it may automatically restart in the same mode when the power is
restored.
OPTIMUM OPERATION
Observe the following precautions to ensure the system operates efficiently.
Adjust the room temperature for a comfortable environment. Avoid excessive heating or cooling.
Prevent direct sunlight from entering a room during cooling operation by using curtains or blinds.
Keep doors and windows closed, If the doors and windows remain open, room air will flow our and decrease the effect
of cooling and heating.
Never place objects near the air inlet and the air outlet of the unit. It may retard effectiveness or cause operation to stop.
Turn off the main power supply switch when not using for long periods of time. Electricity is consumed an long the switch
is on save energy. Turn on the main power supply switch 6 hours before restarting operation in order to ensure smooth
operation(Refer to MAINTENANCE)
Ventilate the room regularly.
Using the unit for long periods of time requires regular ventilation of the room.
Care and Maintenance
11
