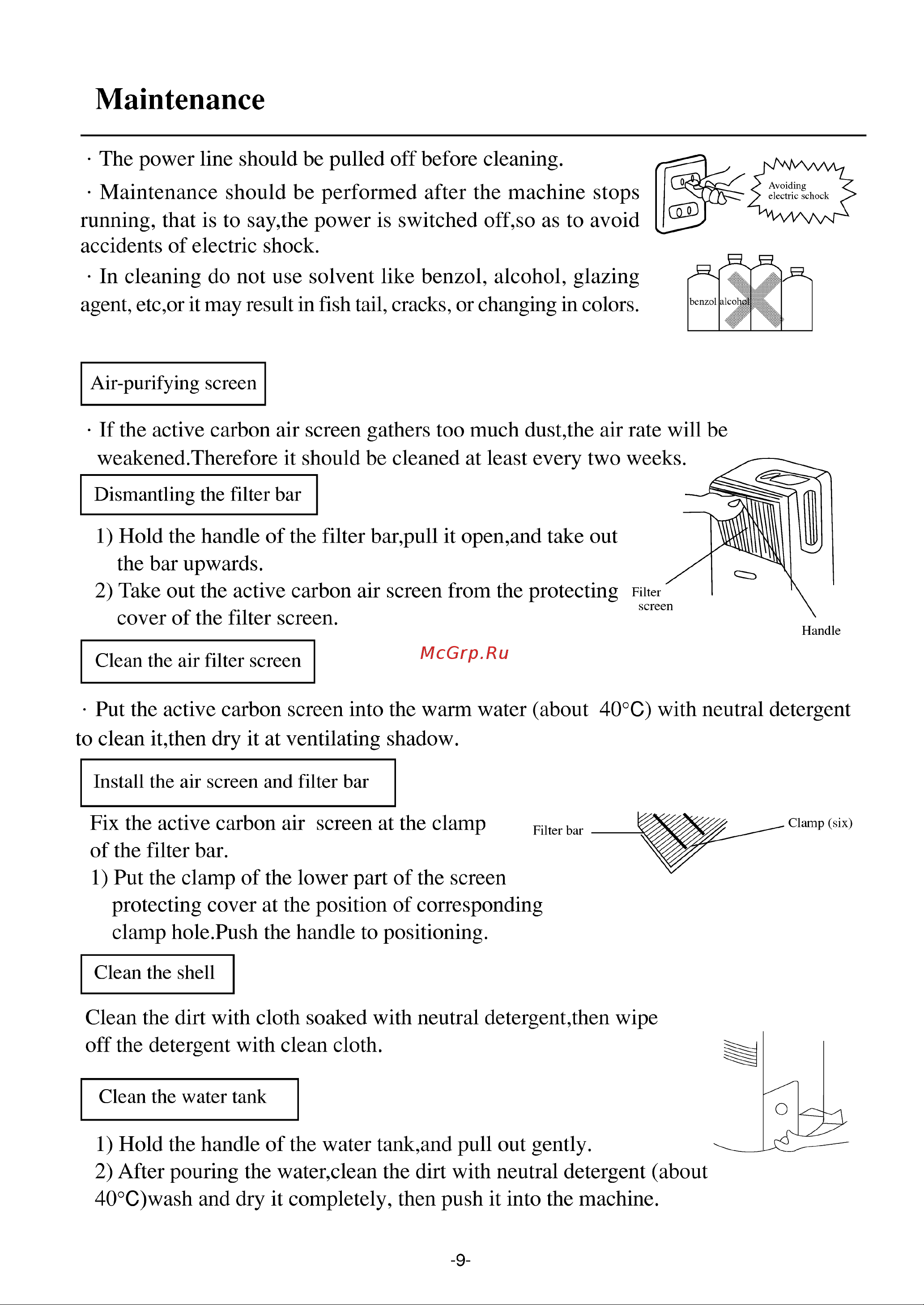

Maintenance The power line should be pulled off before cleaning Maintenance should be performed after the machine stops running that is to say the power is switched off so as to avoid accidents of electric shock In cleaning do not use solvent like benzol alcohol glazing agent etc or it may result in fish tail cracks or changing in colors Air purifying screen If the active carbon air screen gathers too much dust the air rate will be weakened Therefore it should be cleaned at least every two weeks Dismantling the filter bar 1 Hold the handle of the filter bar pull it open and take out the bar upwards 2 Take out the active carbon air screen from the protecting rater cover of the filter screen Clean the air filter screen Put the active carbon screen into the warm water about 40 C with neutral detergent to clean it then dry it at ventilating shadow Install the air screen and filter bar Fix the active carbon air screen at the clamp Filter bar of the filter bar 1 Put the clamp of the lower part of the screen protecting cover at the position of corresponding clamp hole Push the handle to positioning Clean the shell Clean the dirt with cloth soaked with neutral detergent then wipe off the detergent with clean cloth Clean the water tank 1 Hold the handle of the water tank and pull out gently 2 After pouring the water clean the dirt with neutral detergent about 40 C wash and dry it completely then push it into the machine 9 ciamp six
