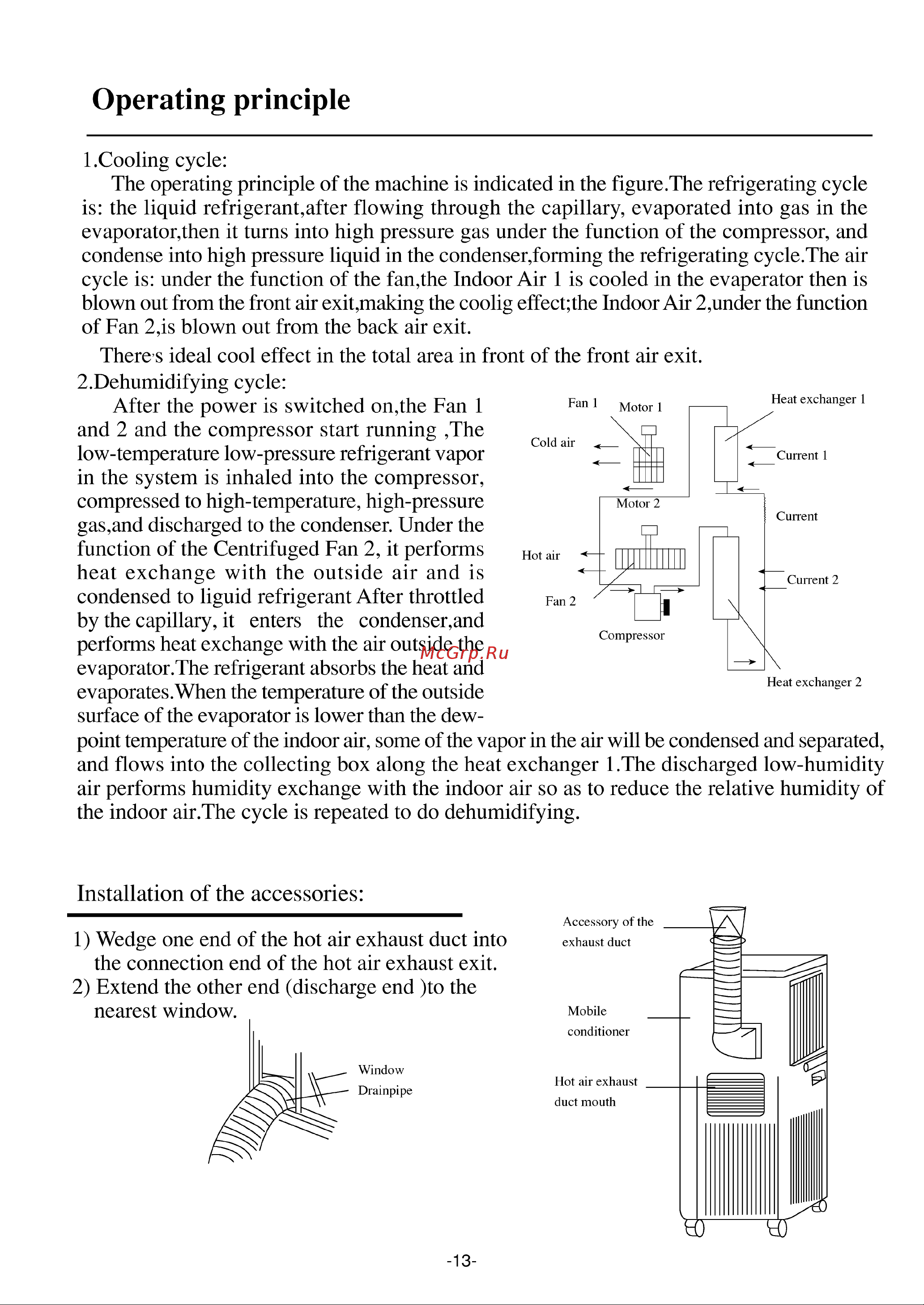

Operating principle 1 Cooling cycle The operating principle of the machine is indicated in the figure The refrigerating cycle is the liquid refrigerant after flowing through the capillary evaporated into gas in the evaporator then it turns into high pressure gas under the function of the compressor and condense into high pressure liquid in the condenser forming the refrigerating cycle The air cycle is under the function of the fan the Indoor Air 1 is cooled in the evaperator then is blown out from the front air exit making the coolig effect the Indoor Air 2 under the function of Fan 2 is blown out from the back air exit There s ideal cool effect in the total area in front of the front air exit 2 Dehumidifying cycle After the power is switched on the Fan 1 and 2 and the compressor start running The low temperature low pressure refrigerant vapor in the system is inhaled into the compressor compressed to high temperature high pressure gas and discharged to the condenser Under the function of the Centrifuged Fan 2 it performs heat exchange with the outside air and is condensed to liguid refrigerant After throttled by the capillary it enters the condenser and performs heat exchange with the air outside the evaporator The refrigerant absorbs the heat and evaporates When the temperature of the outside surface of the evaporator is lower than the dew point temperature of the indoor air some of the vapor in the air will be condensed and separated and flows into the collecting box along the heat exchanger 1 The discharged low humidity air performs humidity exchange with the indoor air so as to reduce the relative humidity of the indoor air The cycle is repeated to do dehumidifying Installation of the accessories Accessory of the 1 Wedge one end of the hot air exhaust duct into the connection end of the hot air exhaust exit 2 Extend the other end discharge end to the nearest window Window Drainpipe 13 exhaust duct
