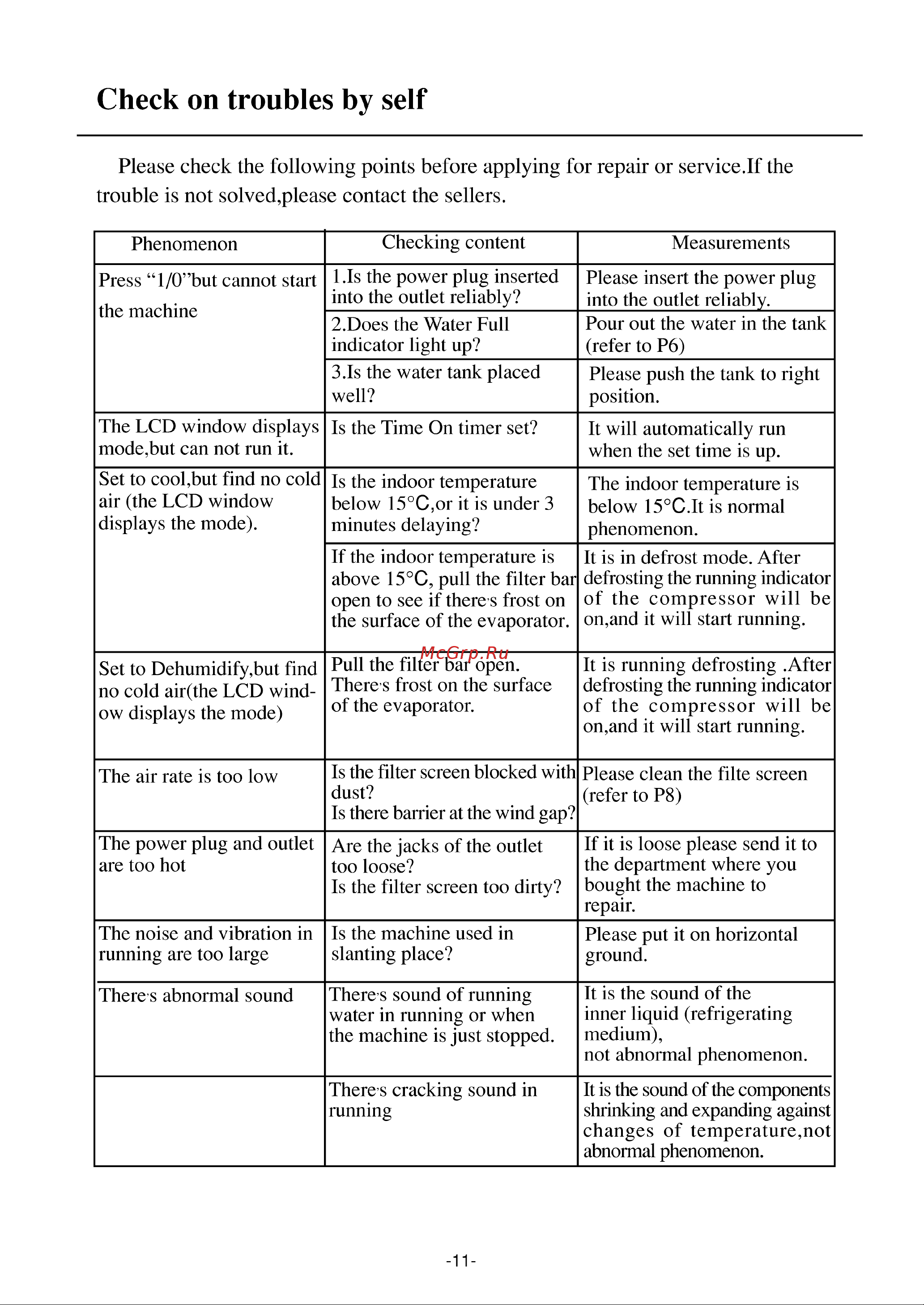

Check on troubles by self Please check the following points before applying for repair or service If the trouble is not solved please contact the sellers Phenomenon Checking content Lis the power plug inserted into the outlet reliably Measurements 2 Does the Water Full indicator light up Please insert the power plug into the outlet reliably Pour out the water in the tank refer to P6 3 1s the water tank placed well Please push the tank to right position The LCD window displays mode but can not run it Is the Time On timer set It will automatically run when the set time is up Set to cool but find no cold air the LCD window displays the mode Is the indoor temperature below 15 C or it is under 3 minutes delaying The indoor temperature is below 15 C It is normal phenomenon If the indoor temperature is above 15 C pull the filter bar open to see if there s frost on the surface of the evaporator It is in defrost mode After defrosting the running indicator of the compressor will be on and it will start running Set to Dehumidify but find no cold air the LCD wind ow displays the mode Pull the filter bar open There s frost on the surface of the evaporator It is running defrosting After defrosting the running indicator of the compressor will be on and it will start running The air rate is too low Is the filter screen blocked with dust Is there barrier at the wind gap Please clean the filte screen refer to P8 The power plug and outlet are too hot Are the jacks of the outlet too loose Is the filter screen too dirty If it is loose please send it to the department where you bought the machine to repair The noise and vibration in running are too large Is the machine used in slanting place Please put it on horizontal ground There s abnormal sound There s sound of running water in running or when the machine is just stopped It is the sound of the inner liquid refrigerating medium not abnormal phenomenon There s cracking sound in running It is the sound of the components shrinking and expanding against changes of temperature not abnormal phenomenon Press l 0 but cannot start the machine 11
