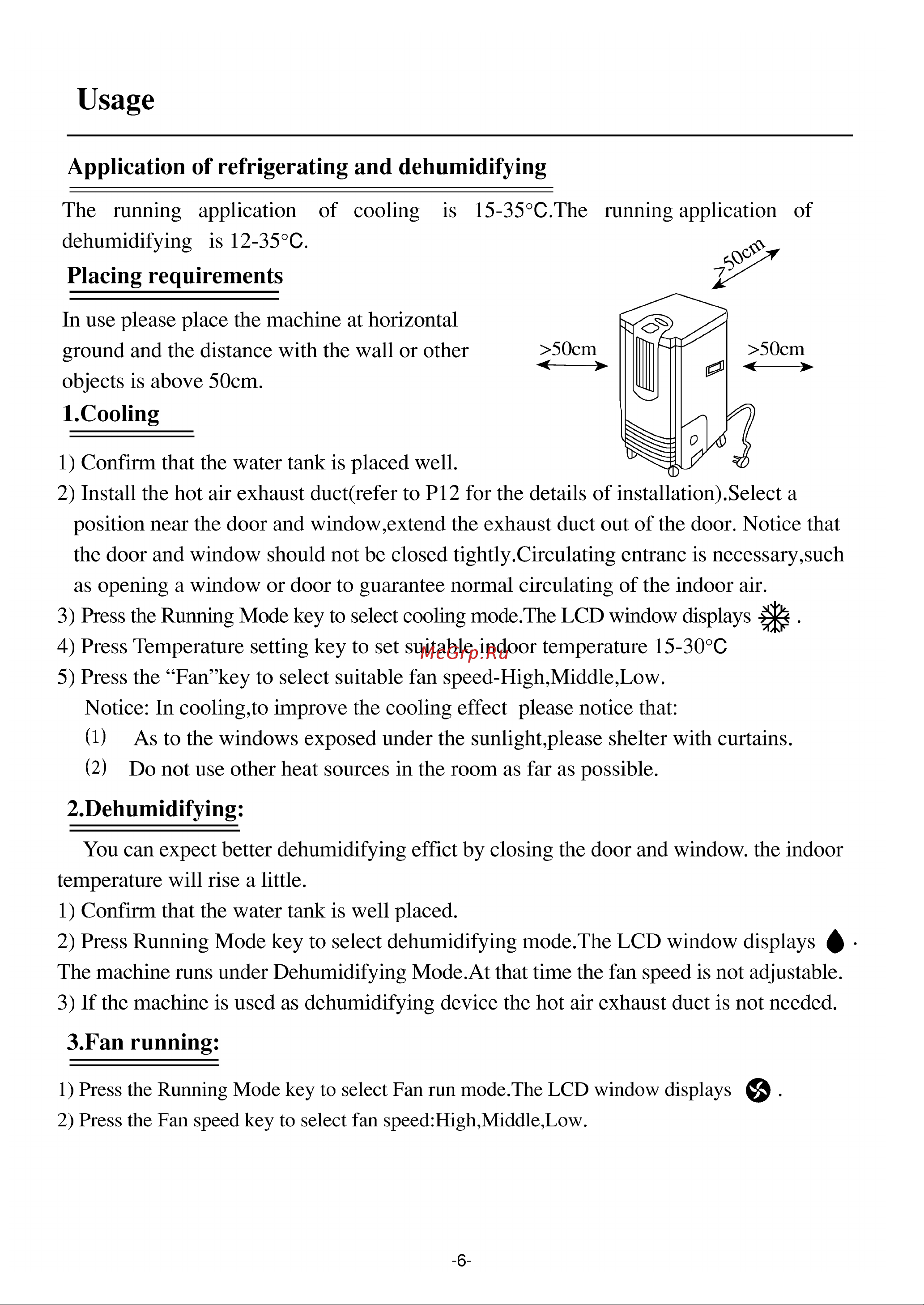

Usage Application of refrigerating and dehumidifying The running application of cooling is 15 35 C The running application of dehumidifying is 12 35 C Placing requirements In use please place the machine at horizontal ground and the distance with the wall or other objects is above 50cm l Cooling 1 Confirm that the water tank is placed well 2 Install the hot air exhaust duct refer to P12 for the details of installation Select a position near the door and window extend the exhaust duct out of the door Notice that the door and window should not be closed tightly Circulating entranc is necessary such as opening a window or door to guarantee normal circulating of the indoor air 3 Press the Running Mode key to select cooling mode The LCD window displays 4 Press Temperature setting key to set suitable indoor temperature 15 30 C 5 Press the Fan key to select suitable fan speed High Middle Low Notice In cooling to improve the cooling effect please notice that 1 As to the windows exposed under the sunlight please shelter with curtains 2 Do not use other heat sources in the room as far as possible 2 Dehumidifying You can expect better dehumidifying effict by closing the door and window the indoor temperature will rise a little 1 Confirm that the water tank is well placed 2 Press Running Mode key to select dehumidifying mode The LCD window displays 4 The machine runs under Dehumidifying Mode At that time the fan speed is not adjustable 3 If the machine is used as dehumidifying device the hot air exhaust duct is not needed 3 Fan running 1 Press the Running Mode key to select Fan run mode The LCD window displays 2 Press the Fan speed key to select fan speed High Middle Low 6
