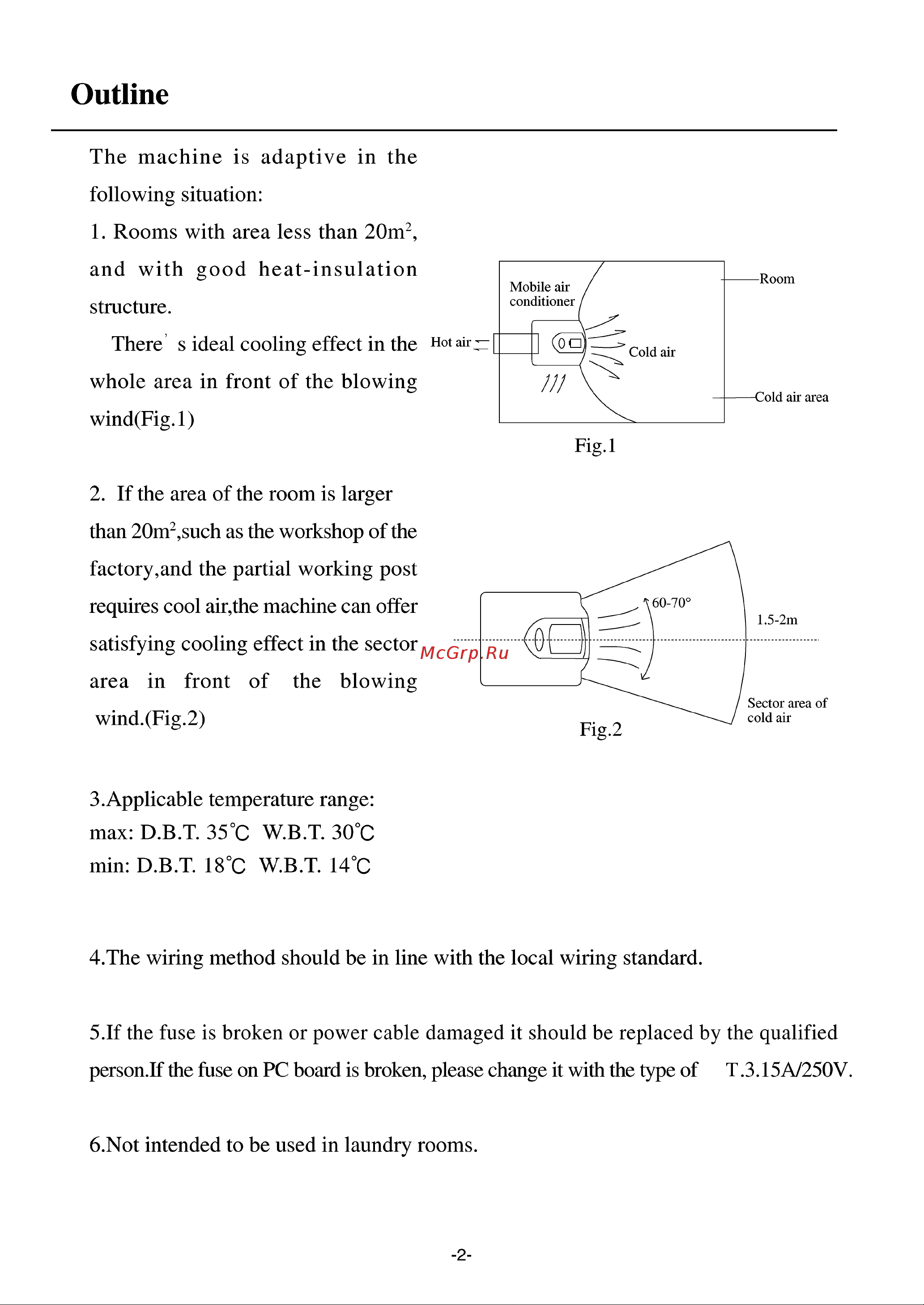

Outline The machine is adaptive in the following situation 1 Rooms with area less than 20m2 2 If the area of the room is larger than 20m2 such as the workshop of the factory and the partial working post requires cool air the machine can offer satisfying cooling effect in the sector area in front of the blowing wind Fig 2 3 Applicable temperature range max D B T 35 C W B T 30 C min D B T 18 C W B T 14 C 4 The wiring method should be in line with the local wiring standard 5 1f the fuse is broken or power cable damaged it should be replaced by the qualified person If the fuse on PC board is broken please change it with the type of T 3 15A 250V 6 Not intended to be used in laundry rooms 2
