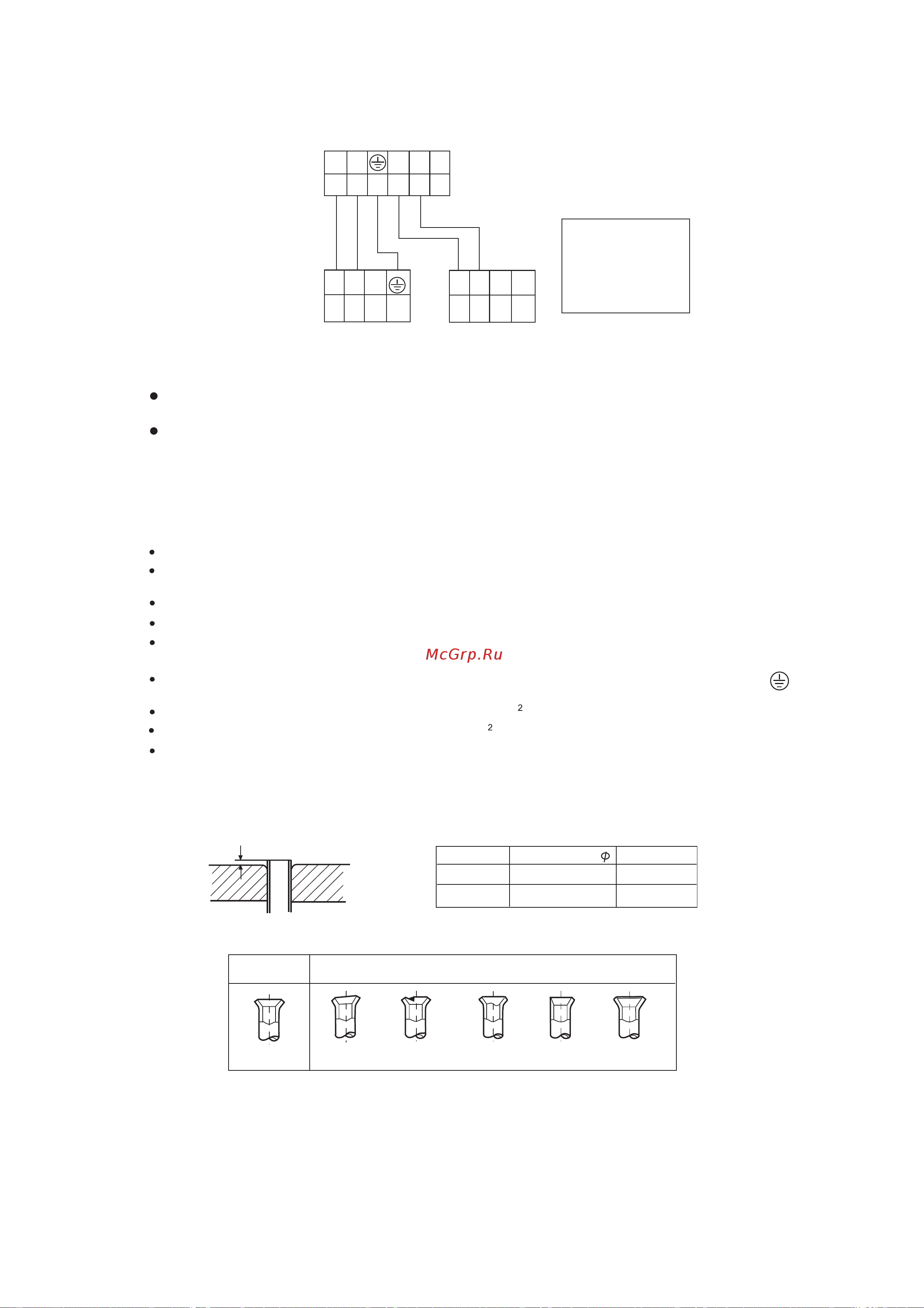

Haier AE182FCAKA [111/174] Wiring diagram

Haier AC182FCBHA [111/174] Wiring diagram

When connecting indoor and outdoor wire, check the number on indoor and outdoor terminal

blocks. Terminals of same number and same color shall be connected by the same wire.

Incorrect wiring may damage air conditioner's control or cause operation failure.

Note:

Wiring diagram:

W:WHITE

B:BLACK

Y/G:YELLOW/GREEN

R:RED

NOTE:

Block terminals

for indoor unit

Block terminals

for outdoor unit

(different outdoor

unit have different block terminals)

Y/G

2.Piping cutting and flaring

Be sure to carry out deburring after cutting with a pipe cutter.

Insert flaring tool to make a flare.

Is cooling operation normal?

Is room temp. regulator normal?

Liquid pipe

Pipe diameter Size A (mm)

0.8 ~1.5

1.2 ~2.0

6.35mm(1/4")

12.7mm(1/2")

Gas pipe

Correct Incorrect

Lean

Damage of flare Crack Partial Too outside

Flare tooling die

Others

The power plug should be connected as follows: L for live line, N for neutral line and

for grounding.

Voltage: single-phase1PH,220-230V*,50Hz

The power source must be grounded.

Connection parameters: H05RN-F 3G(1.0-1.5)mm

Signal parameters:

1.Power supply requirements:

Cables for power supply, connection and signals are prepared by the owner.

Electrical cables should be connected by ìYî method. Damaged or wornelectrical cable

must be replaced by authorized after sales agents.

A circuit breaker must be installed

Dedicated electrical cable should be installed by a qualified technician in

accordance with the state regulation for electrical engineering.

H05RN-F2X(0.75-1.5)mm

(Shieded wire)
