6.1.3 Number setting dialing switch using method(wired remoted control type)

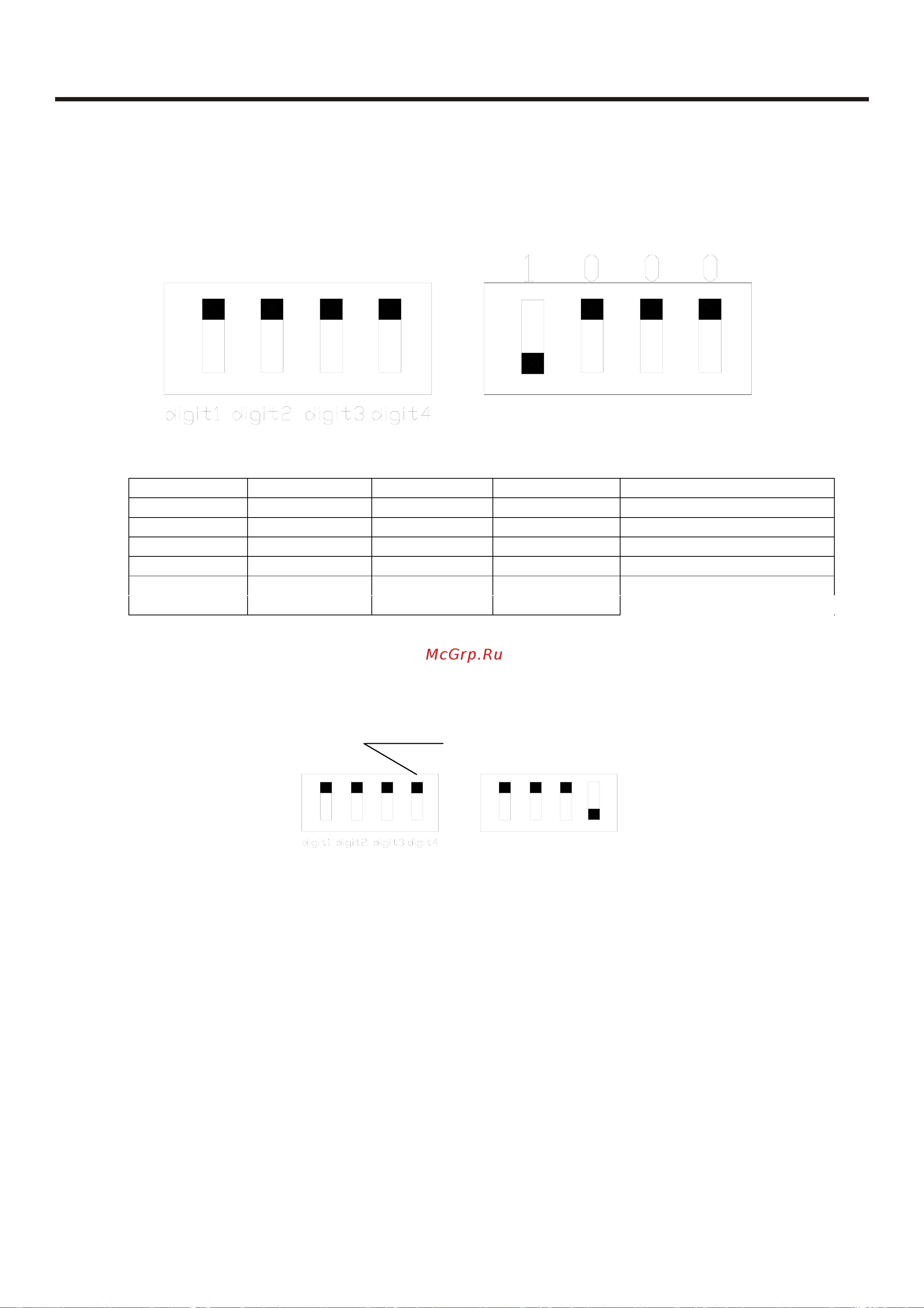

The dialing switch is on indoor unit PCB. The indoor unit number setting method is as follows:

stand for NO.1 indoor unit stand for NO.2 indoor unit

0 0 0 Not used 1

1 0 0 Not used 2

0 1 0 Not used 3

1 1 0 Not used 4

0 0 1 Not used 5

1 0 1 Not used 6

We have “indoor unit NO. lock switch” on outdoor PCB to lock the indoor unit setting NO.

Lock switch

When the lock switch is at lock state, changing or setting indoor unit NO. is not allowed . When

the lock switch is at unlock state, the outdoor unit will searching for the new added indoor unit. If the

lock switch is always at unlock state, the outdoor unit will work normally and just have a longer

communication time with the indoor unit. When you want to change the indoor unit NO. setting or you

are installing the unit ,you must set the lock switch at unlock state .

Digit 1 Digit 2 Digit 3 Digit 4 Unit number stand for

Unlock state lock state

7.1.4 Indoor unit NO. lock switch (for model AU422FIAHA,AU422FIAIA, AU422F I B H A)

OFF
