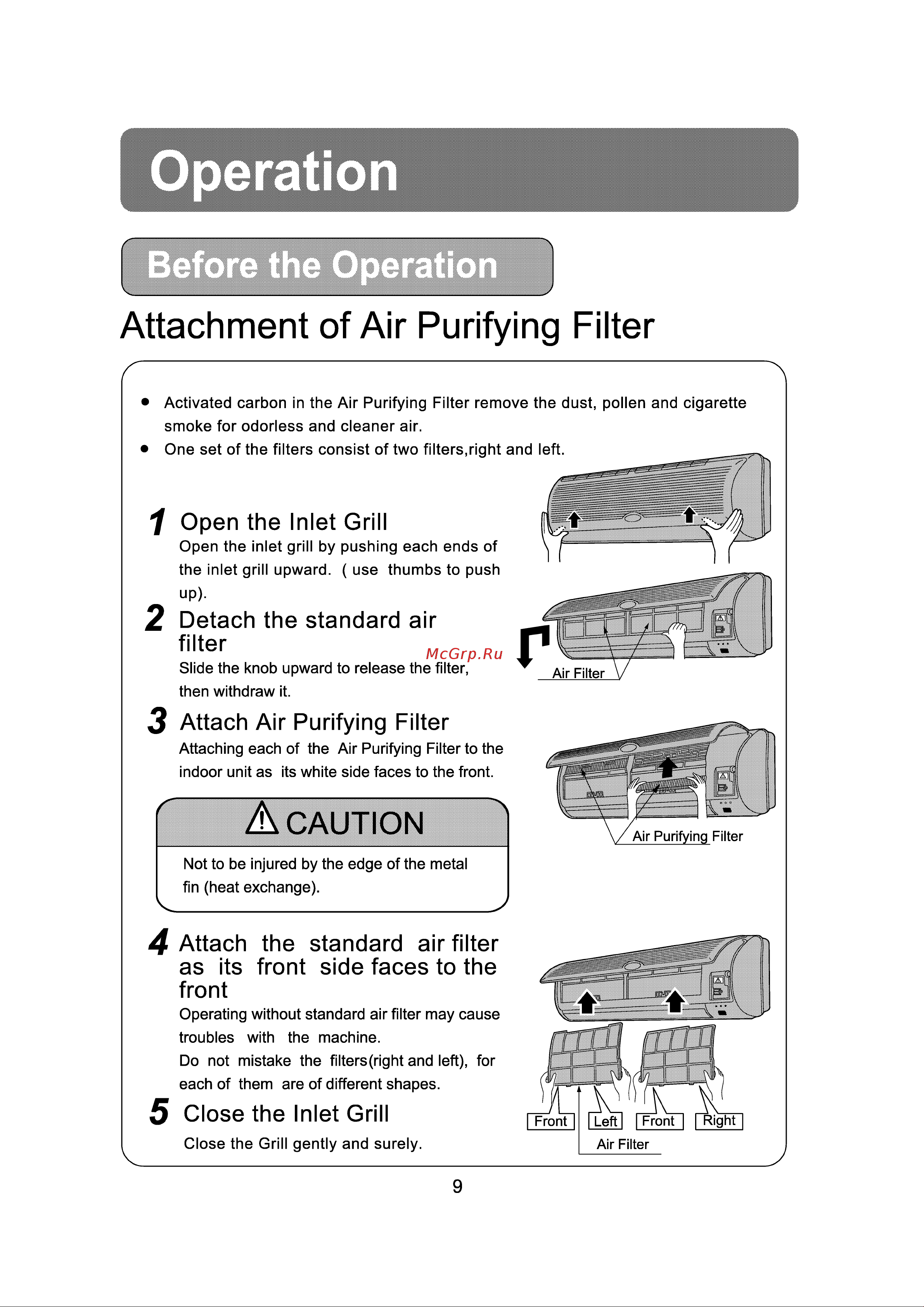

Attachment of Air Purifying Filter Activated carbon in the Air Purifying Filter remove the dust pollen and cigarette smoke for odorless and cleaner air One set of the filters consist of two filters right and left ______ 7 Open the Inlet Grill Open the inlet grill by pushing each ends of the inlet grill upward use thumbs to push up 2 Detach the standard air filter Slide the knob upward to release the filter Air Filter then withdraw it 3 Attach Air Purifying Filter Attaching each of the Air Purifying Filter to the indoor unit as its white side faces to the front A CAUTION Air Purifying Filter Not to be injured by the edge of the metal fin heat exchange 4 Attach the standard air filter as its front side faces to the front Operating without standard air filter may cause troubles with the machine Do not mistake the filters right and left for each of them are of different shapes 5 Close the Inlet Grill Close the Grill gently and surely Air Filter 9
