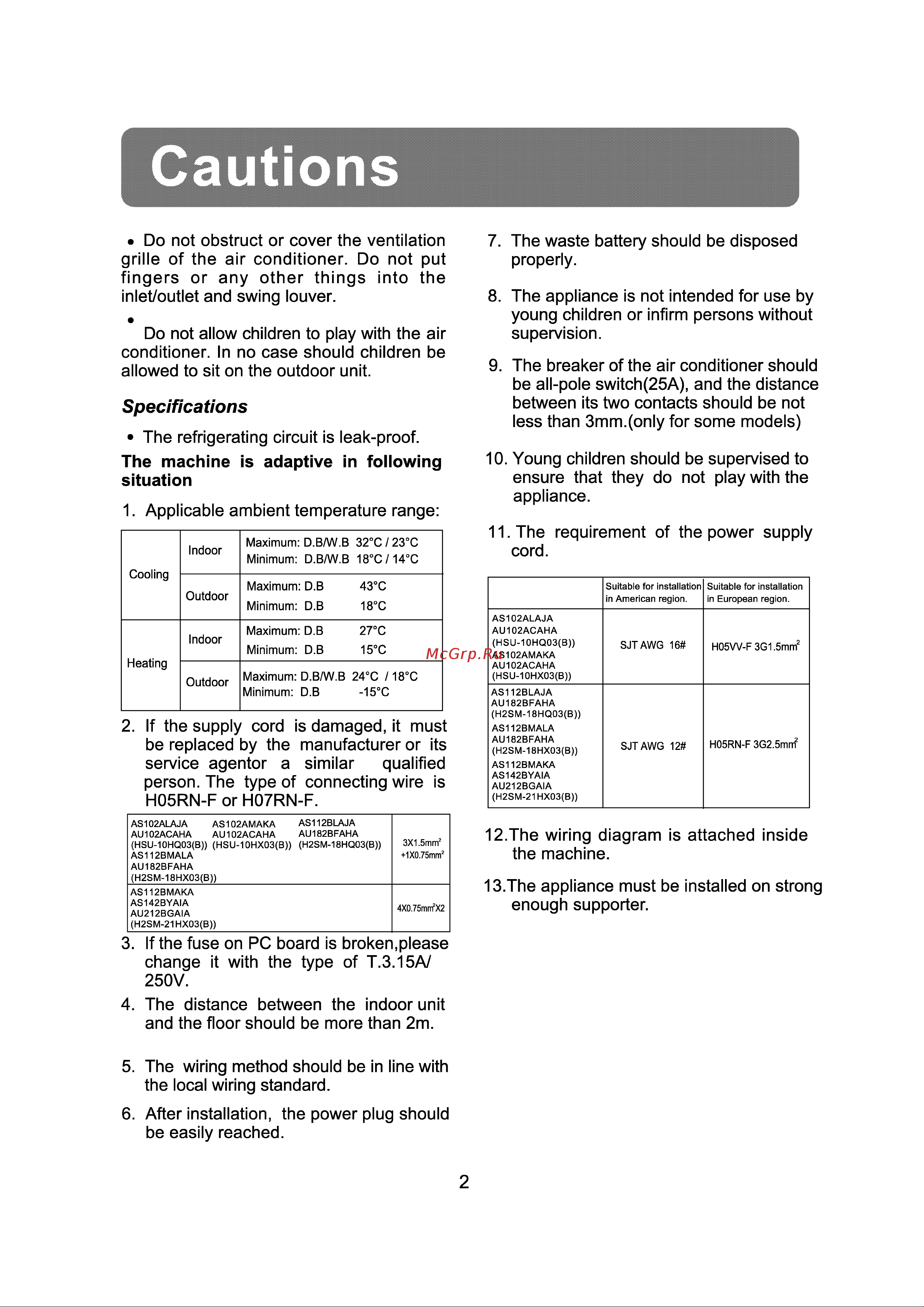

Do not obstruct or cover the ventilation grille of the air conditioner Do not put fingers or any other things into the inlet outlet and swing louver 7 The waste battery should be disposed properly 8 The appliance is not intended for use by young children or infirm persons without supervision Do not allow children to play with the air conditioner In no case should children be allowed to sit on the outdoor unit 9 The breaker of the air conditioner should be all pole switch 25A and the distance between its two contacts should be not less than 3mm only for some models Specifications The refrigerating circuit is leak proof 10 Young children should be supervised to ensure that they do not play with the appliance The machine is adaptive in following situation 1 Applicable ambient temperature range Indoor 11 The requirement of the power supply cord Maximum D B W B 32 C 23 C Minimum D B W B 18 C 14 C Cooling Outdoor Maximum D B Minimum D B 43 C 18 C Suitable for installation Suitable for installation in American region in European region AS102ALAJA Indoor Maximum D B 27 C Minimum D B 15 C AU102ACAHA HSU 10HQ03 B Heating Outdoor Maximum D B W B 24 C 18 C Minimum D B 15 C AS112BMAKA AS142BYAIA AU212BGAIA H2SM 21HX03 B H05W F 3G1 5mm2 SJTAWG 12 H05RN F 3G2 5mm2 AS112BLAJA AU182BFAHA H2SM 18HQ03 B 2 If the supply cord is damaged it must be replaced by the manufacturer or its service agentor a similar qualified person The type of connecting wire is H05RN F or H07RN F AS102ALAJA AS 102 AM AKA AS112BLAJA AU102ACAHA AU102ACAHA AU182BFAHA HSU 10HQ03 B HSU 10HX03 B H2SM 18HQ03 B AS112BMALA AU182BFAHA H2SM 18HX03 B SJTAWG 16 AS 102 AM AKA AU102ACAHA HSU 10HX03 B AS112BMALA AU182BFAHA H2SM 18HX03 B AS112BMAKA AS142BYAIA AU212BGAIA H2SM 21 HX03 B 12 The wiring diagram is attached inside the machine 3X1 5mm2 1X0 75mm2 13 The appliance must be installed on strong enough supporter 4X0 75mm2X2 3 If the fuse on PC board is broken please change it with the type of T 3 15A 250V 4 The distance between the indoor unit and the floor should be more than 2m 5 The wiring method should be in line with the local wiring standard 6 After installation the power plug should be easily reached 2
