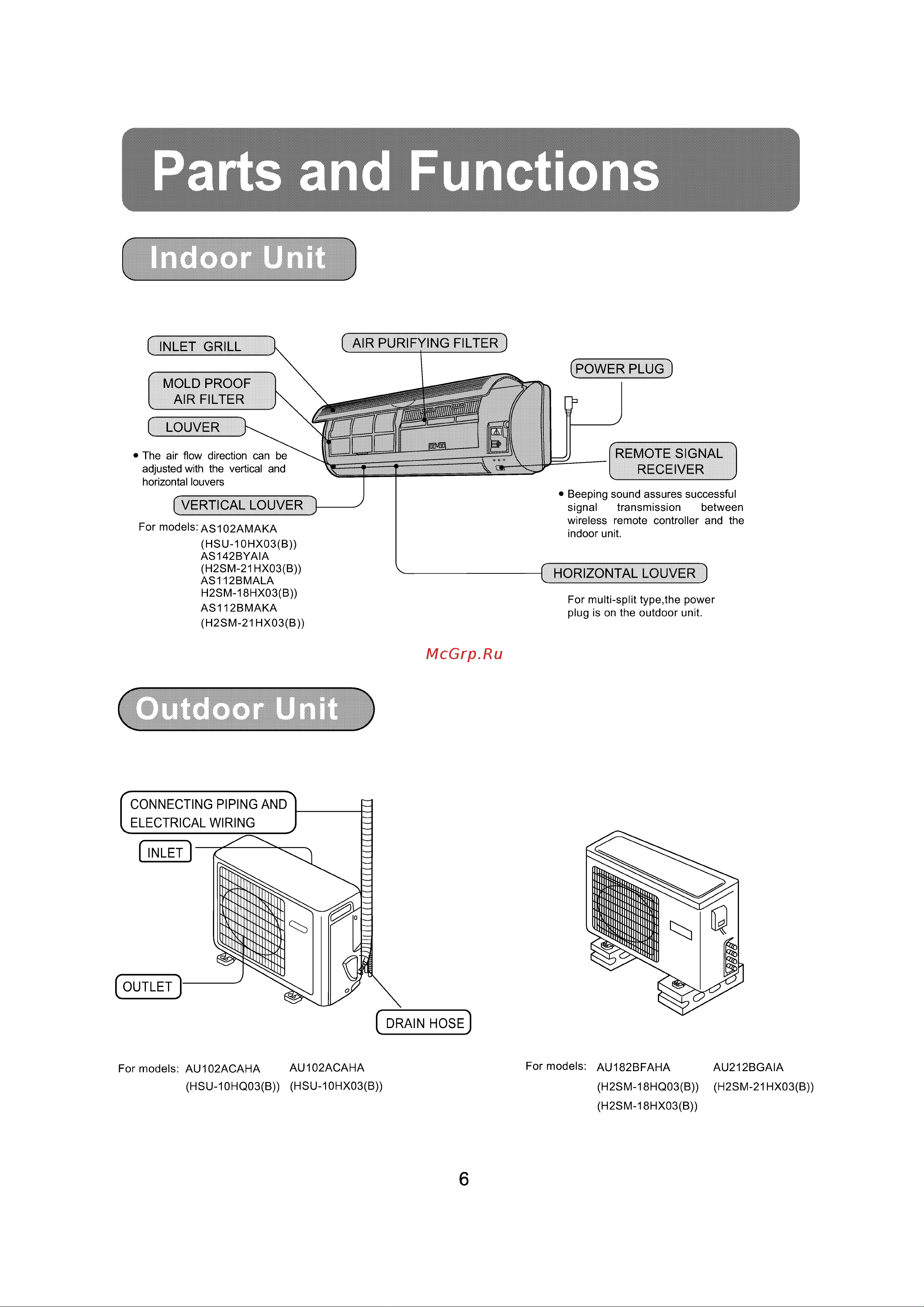

INLET GRILL POWER PLUG MOLD PROOF AIR FILTER LOUVER REMOTE SIGNAL RECEIVER The air flow direction can be adjusted with the vertical and horizontal louvers Beeping sound assures successful signal transmission between wireless remote controller and the indoor unit VERTICAL LOUVER For models AS102AMAKA HSU 10HX03 B AS142BYAIA H2SM 21 HX03 B AS112BMALA H2SM 18HX03 B AS112BMAKA H2SM 21 HX03 B HORIZONTAL LOUVER For multi split type the power plug is on the outdoor unit For models AU182BFAHA For models AU102ACAHA AU102ACAHA HSU 10HQ03 B HSU 10HX03 B AU212BGAIA H2SM 18HQ03 B H2SM 21 HX03 B H2SM 18HX03 B 6
