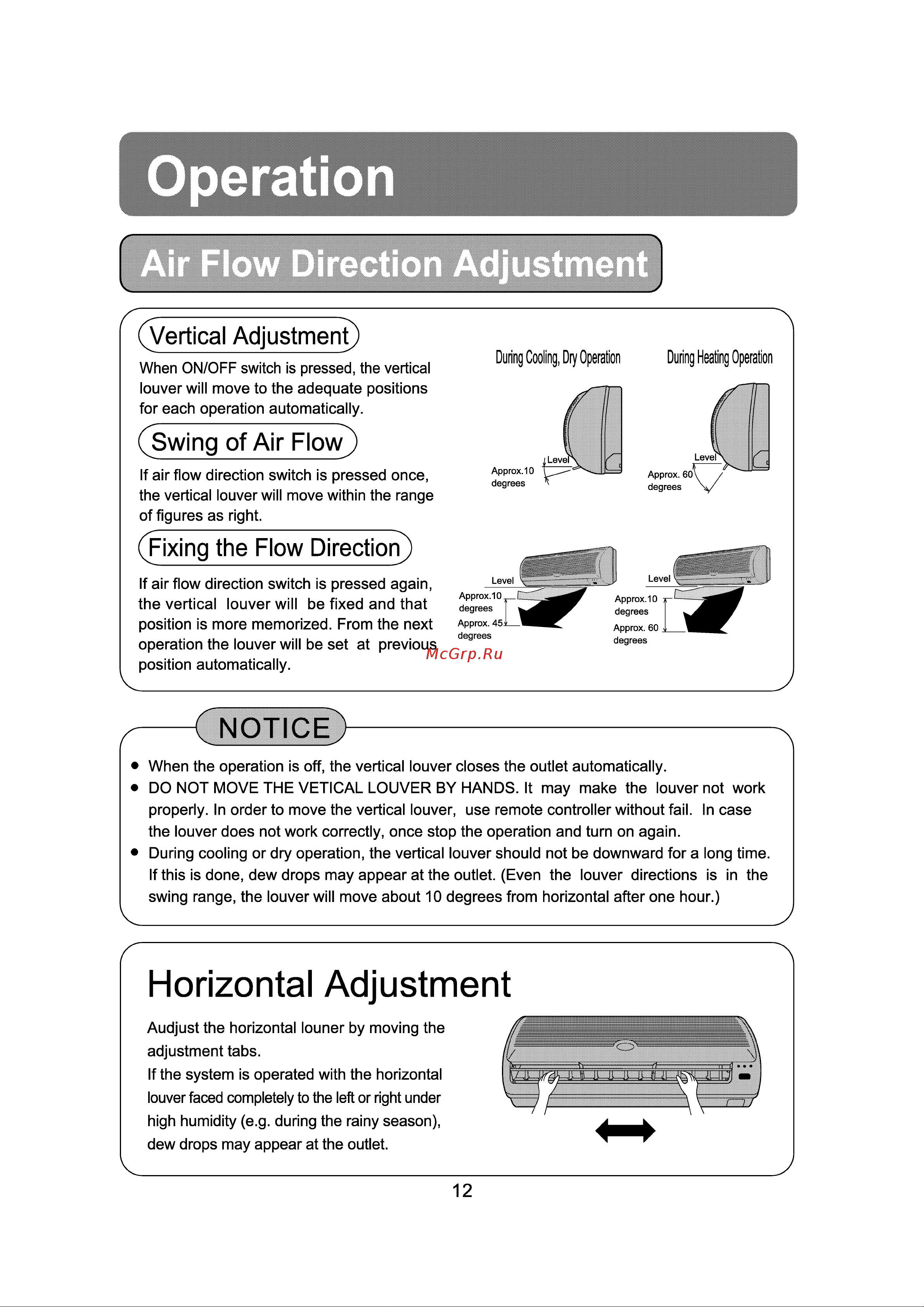

Vertical Adjustment During Cooling Dry Operation When ON OFF switch is pressed the vertical louver will move to the adequate positions for each operation automatically Swing of Air Flov If air flow direction switch is pressed once the vertical louver will move within the range of figures as right Fixing the Flow Direction If air flow direction switch is pressed again the vertical louver will be fixed and that position is more memorized From the next operation the louver will be set at previous position automatically NOTICE When the operation is off the vertical louver closes the outlet automatically DO NOT MOVE THE VETICAL LOUVER BY HANDS It may make the louver not work properly In order to move the vertical louver use remote controller without fail In case the louver does not work correctly once stop the operation and turn on again During cooling or dry operation the vertical louver should not be downward for a long time If this is done dew drops may appear at the outlet Even the louver directions is in the swing range the louver will move about 10 degrees from horizontal after one hour Horizontal Adjustment Audjust the horizontal louner by moving the adjustment tabs If the system is operated with the horizontal louver faced completely to the left or right under high humidity e g during the rainy season dew drops may appear at the outlet 12
