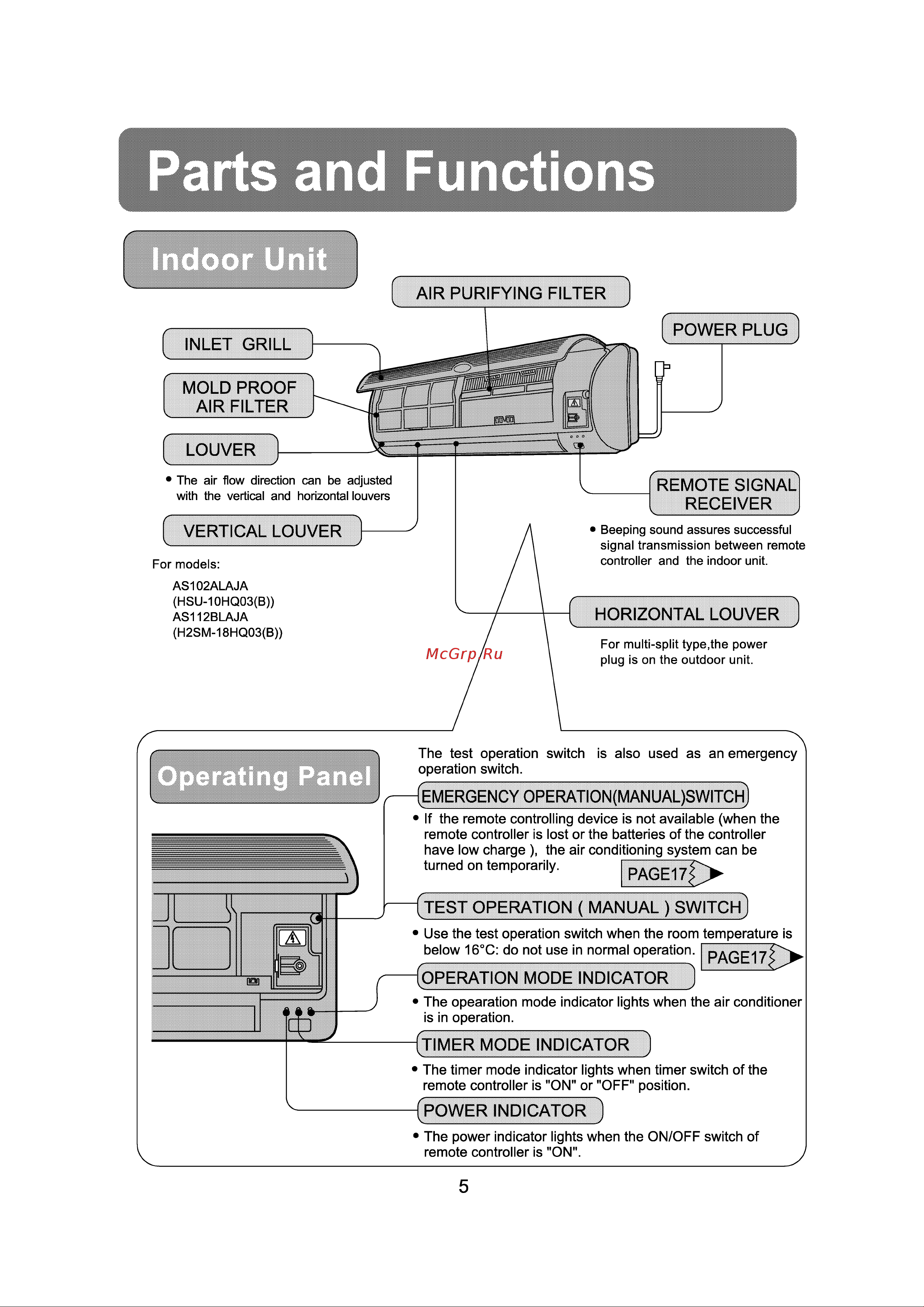

AIR PURIFYING FILTER J POWER PLUG INLET GRILL MOLD PROOF AIR FILTER LOUVER The air flow direction can be adjusted with the vertical and horizontal louvers REMOTE SIGNAL RECEIVER Beeping sound assures successful signal transmission between remote controller and the indoor unit VERTICAL LOUVER For models AS102ALAJA HSU 10HQ03 B AS112BLAJA H2SM 18HQ03 B HORIZONTAL LOUVER For multi split type the power plug is on the outdoor unit The test operation switch is also used as an emergency operation switch r EMERGENCY OPERATIQN MANUAL SWITCH If the remote controlling device is not available when the remote controller is lost or the batteries of the controller have low charge the air conditioning system can be turned on temporarily PAGE17 Use the test operation switch when the room temperature is below 16 C do not use in normal operation OPERATION MODE INDICATOR The opearation mode indicator lights when the air conditioner is in operation TIMER MODE INDICATOR The timer mode indicator lights when timer switch of the remote controller is ON or OFF position POWER INDICATOR The power indicator lights when the ON OFF switch of remote controller is ON 5
