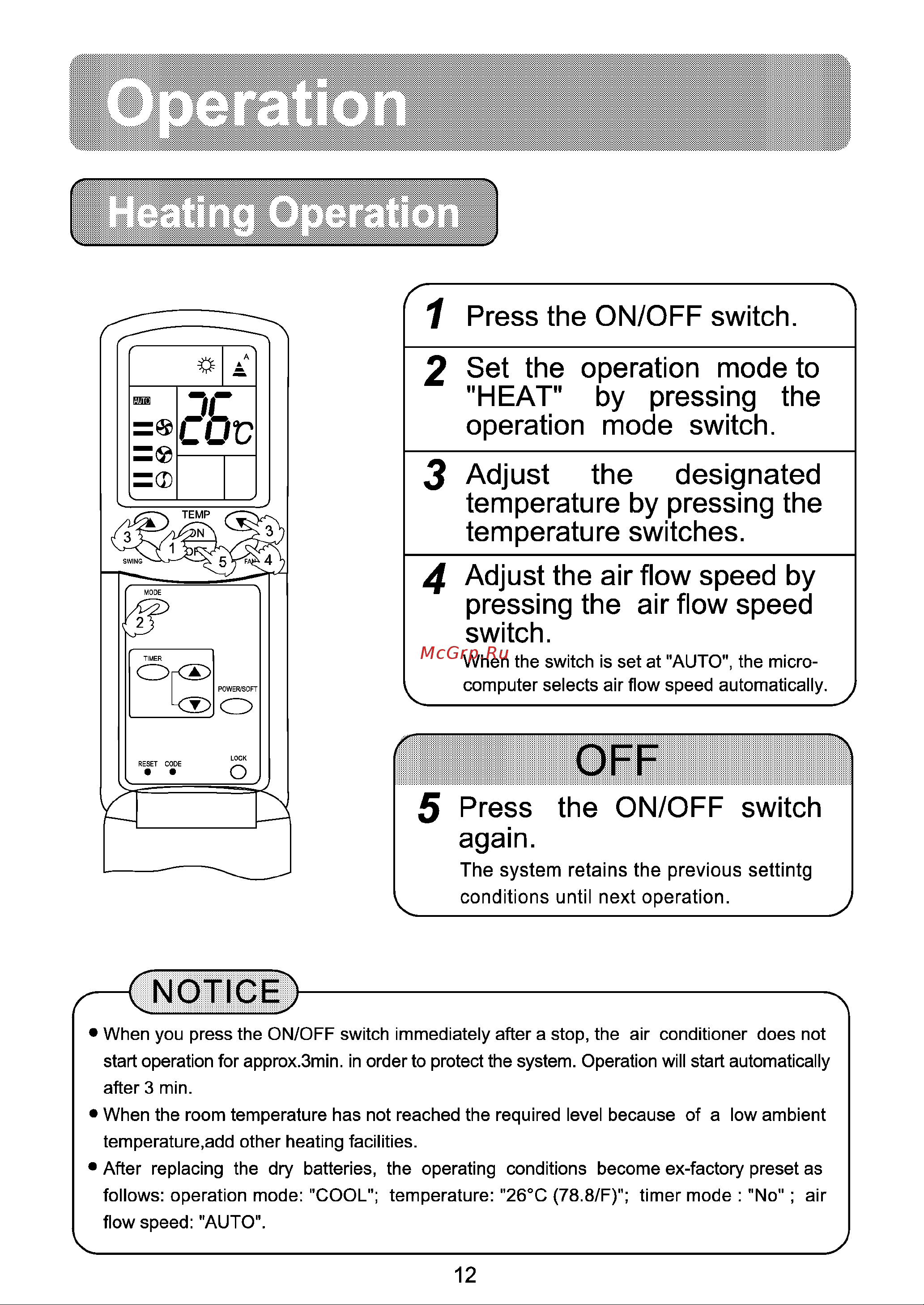

1 Press the ON OFF switch 2 Set the operation mode to HEAT by pressing the operation mode switch 3 Adjust the designated temperature by pressing the temperature switches 4 Adjust the air flow speed by pressing the air flow speed switch When the switch is set at AUTO the micro computer selects air flow speed automatically 5 Press the ON OFF switch again The system retains the previous settintg conditions until next operation NOTICE When you press the ON OFF switch immediately after a stop the air conditioner does not start operation for approx 3min in order to protect the system Operation will start automatically after 3 min When the room temperature has not reached the required level because of a low ambient temperature add other heating facilities After replacing the dry batteries the operating conditions become ex factory preset as follows operation mode COOL temperature 26 C 78 8 F timer mode No air flow speed AUTO 12
