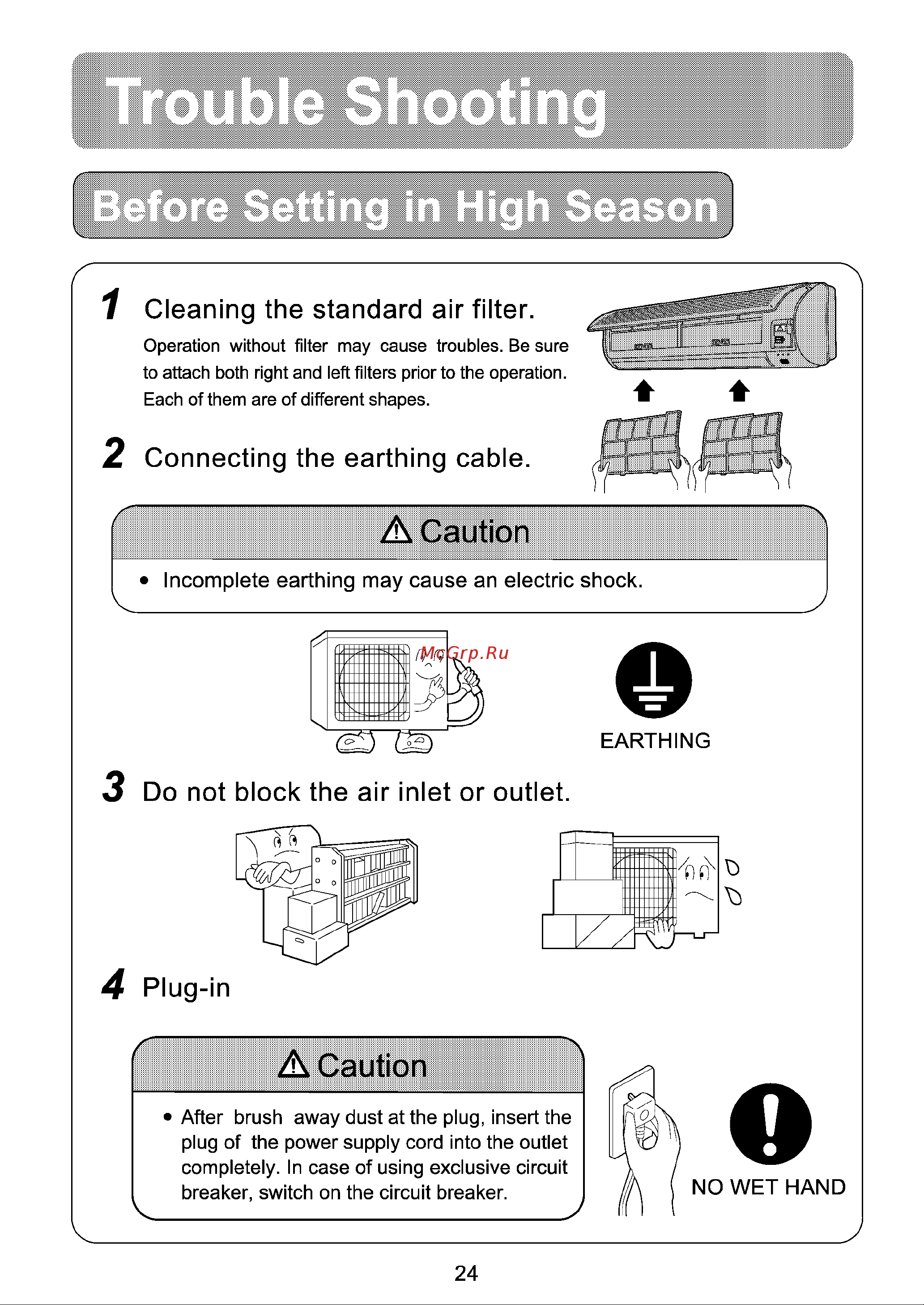

1 Cleaning the standard air filter Operation without filter may cause troubles Be sure to attach both right and left filters prior to the operation Each of them are of different shapes 2 Connecting the earthing cable A Caution Incomplete earthing may cause an electric shock EARTHING 3 Do not block the air inlet or outlet A Caution After brush away dust at the plug insert the plug of the power supply cord into the outlet completely In case of using exclusive circuit breaker switch on the circuit breaker 24
