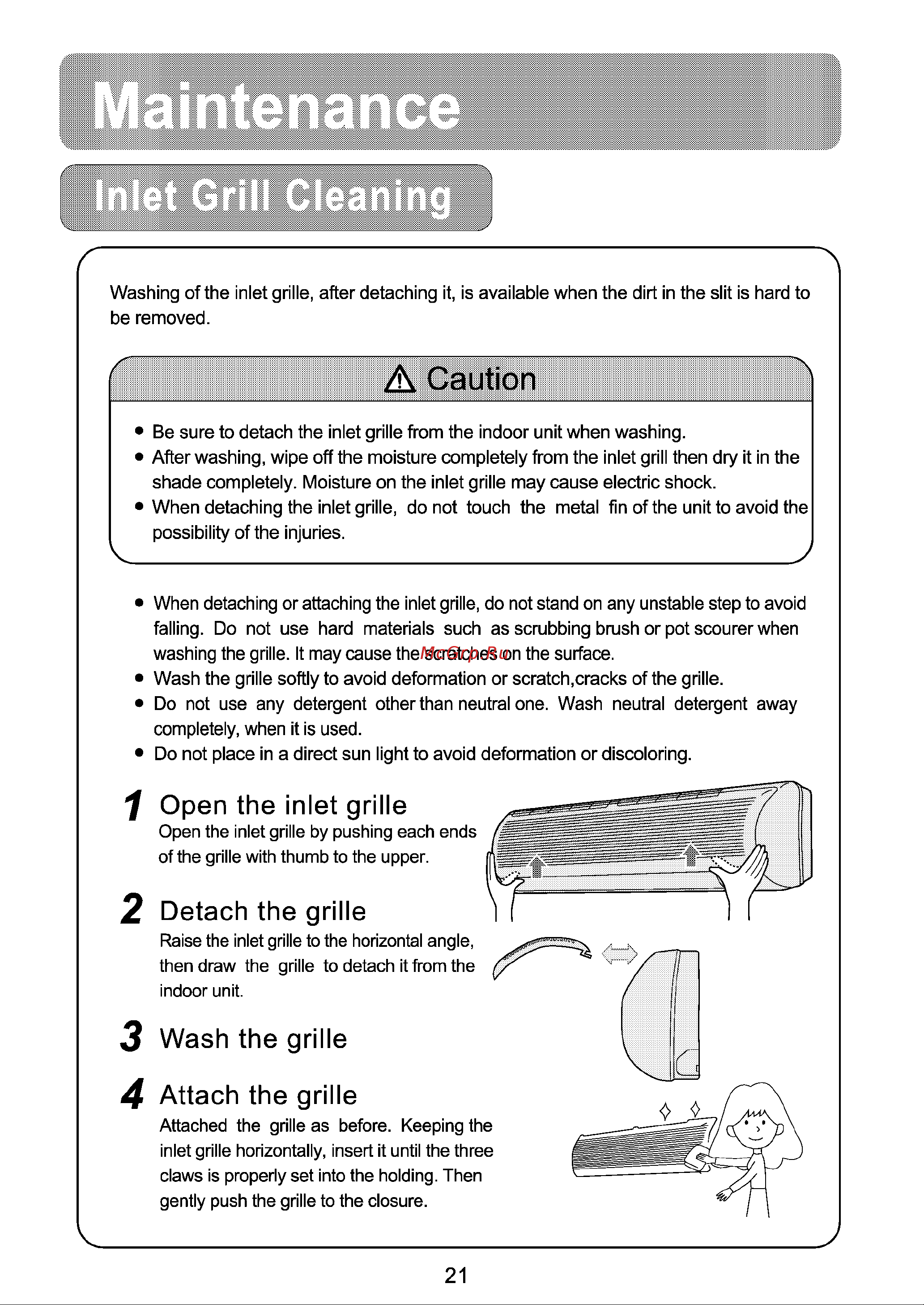

Washing of the inlet grille after detaching it is available when the dirt in the slit is hard to be removed Caution Be sure to detach the inlet grille from the indoor unit when washing After washing wipe off the moisture completely from the inlet grill then dry it in the shade completely Moisture on the inlet grille may cause electric shock When detaching the inlet grille do not touch the metal fin of the unit to avoid the possibility of the injuries When detaching or attaching the inlet grille do not stand on any unstable step to avoid falling Do not use hard materials such as scrubbing brush or pot scourer when washing the grille It may cause the scratches on the surface Wash the grille softly to avoid deformation or scratch cracks of the grille Do not use any detergent other than neutral one Wash neutral detergent away completely when it is used Do not place in a direct sun light to avoid deformation or discoloring Open the inlet grille Open the inlet grille by pushing each ends of the grille with thumb to the upper Detach the grille Raise the inlet grille to the horizontal angle then draw the grille to detach it from the indoor unit 3 Wash the grille Attach the grille Attached the grille as before Keeping the inlet grille horizontally insert it until the three claws is properly set into the holding Then gently push the grille to the closure 21
