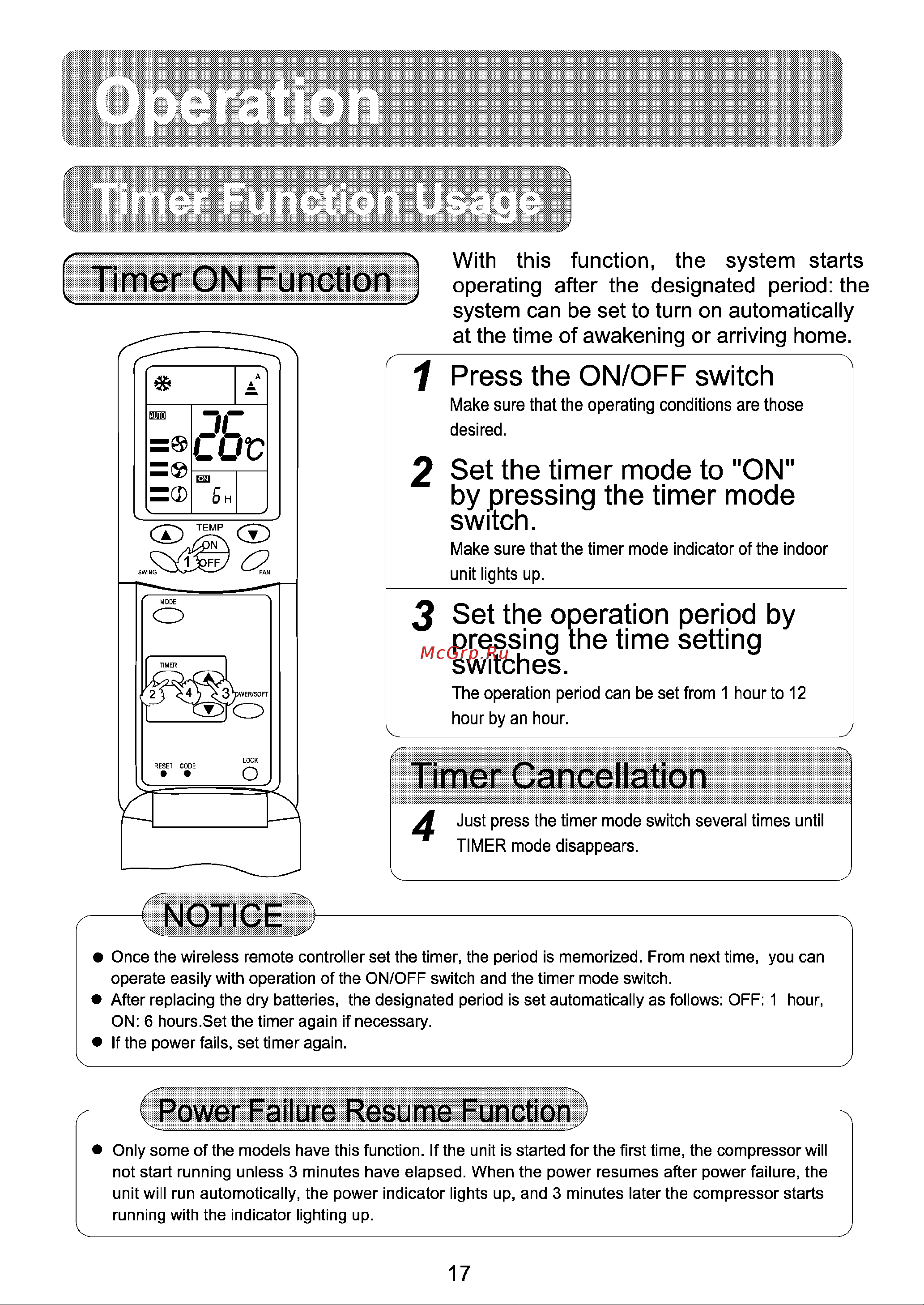

Timer ON Function With this function the system starts J operating after the designated period the system can be set to turn on automatically at the time of awakening or arriving home 1 Press the ON OFF switch Make sure that the operating conditions are those desired 2 Set the timer mode to ON by pressing the timer mode switch Make sure that the timer mode indicator of the indoor unit lights up 3 Set the operation period by pressing the time setting switches The operation period can be set from 1 hour to 12 hour by an hour Timer Cancellation Just press the timer mode switch several times until TIMER mode disappears NOTICE Once the wireless remote controller set the timer the period is memorized From next time you can operate easily with operation of the ON OFF switch and the timer mode switch After replacing the dry batteries the designated period is set automatically as follows OFF 1 hour ON 6 hours Set the timer again if necessary If the power fails set timer again Power Failure Resume Function Only some of the models have this function If the unit is started for the first time the compressor will not start running unless 3 minutes have elapsed When the power resumes after power failure the unit will run automotically the power indicator lights up and 3 minutes later the compressor starts running with the indicator lighting up 17
