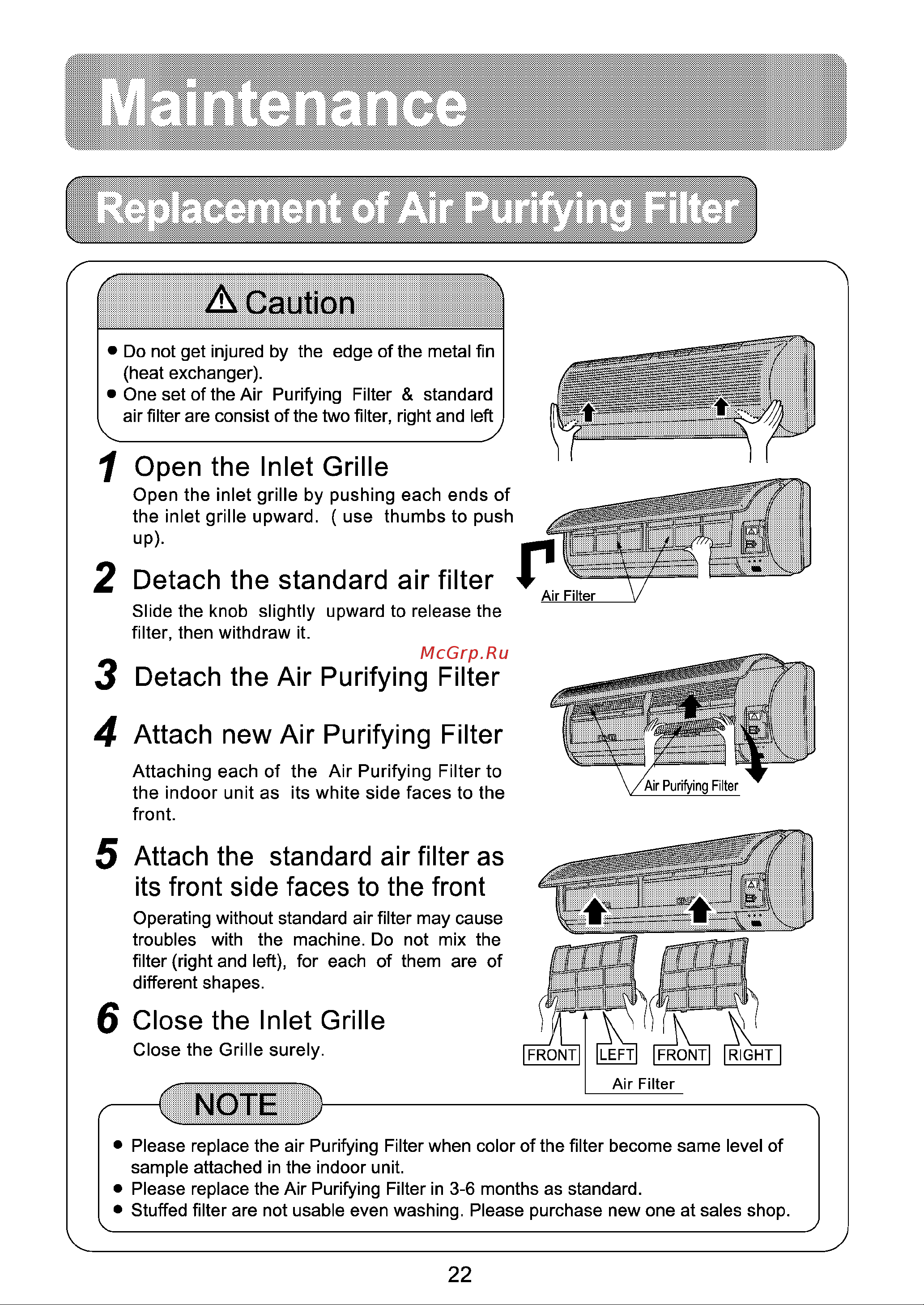

A Caution Do not get injured by the edge of the metal fin heat exchanger One set of the Air Purifying Filter standard air filter are consist of the two filter right and left 7 Open the Inlet Grille Open the inlet grille by pushing each ends of the inlet grille upward use thumbs to push up 2 Detach the standard air filter Slide the knob slightly upward to release the filter then withdraw it 3 Detach the Air Purifying Filter 4 Attach new Air Purifying Filter Attaching each of the Air Purifying Filter to the indoor unit as its white side faces to the front 5 Attach the standard air filter as its front side faces to the front Operating without standard air filter may cause troubles with the machine Do not mix the filter right and left for each of them are of different shapes 6 Close the Inlet Grille Close the Grille surely Air Filter Please replace the air Purifying Filter when color of the filter become same level of sample attached in the indoor unit Please replace the Air Purifying Filter in 3 6 months as standard Stuffed filter are not usable even washing Please purchase new one at sales shop 22
