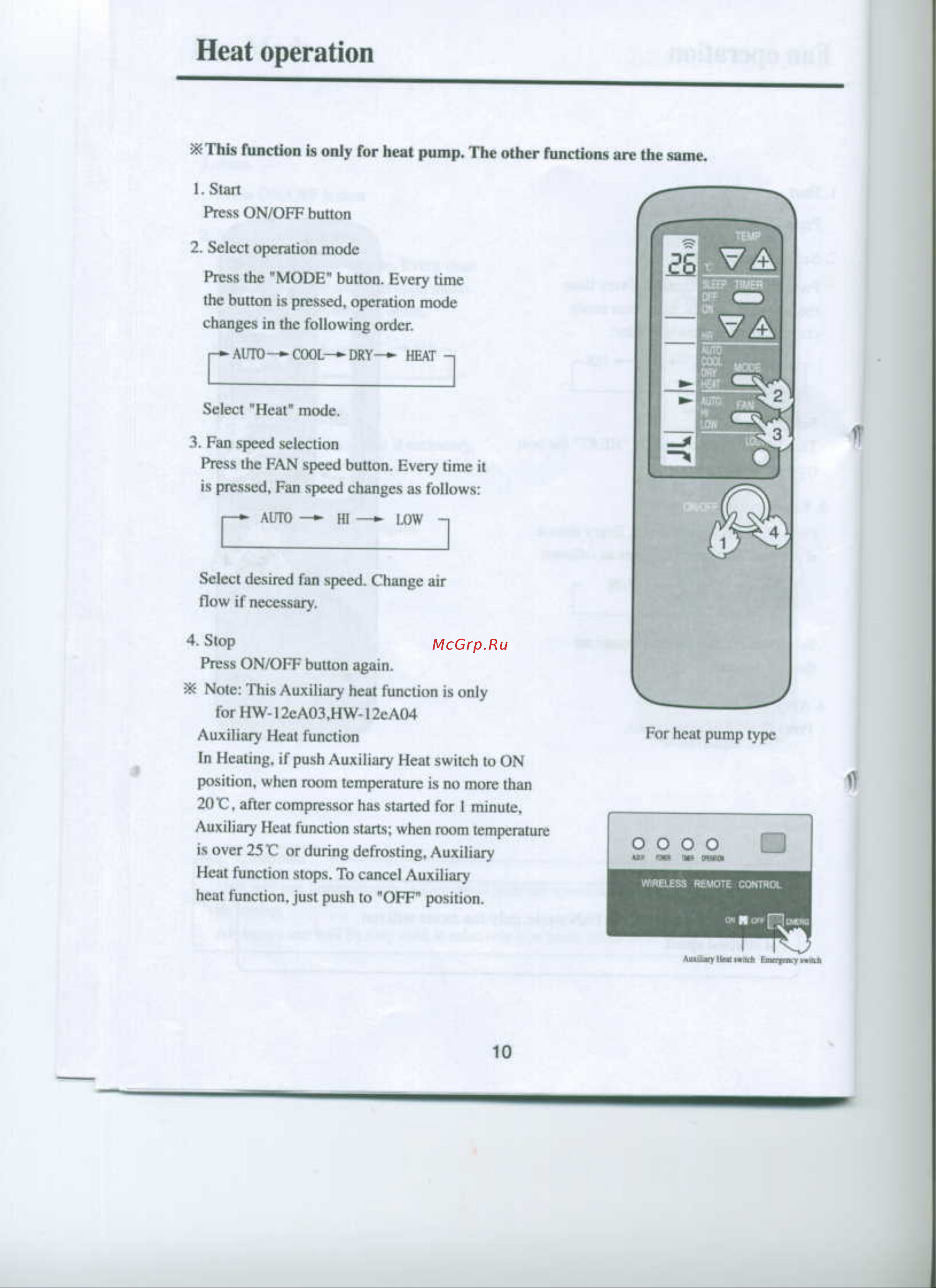

Heat operation XThis function is only for heat pump The other functions arc the same 1 Start Press ON OFF button 2 Select operation mode Press the MODE button Every time the button is pressed operation mode changes in the following order r AUTO COOL DRY HEAT Select Heat mode 3 Fan speed selection Press the FAN speed button Every time it is pressed Fan speed changes as follows Select desired fan speed Change air flow if necessary 4 Stop Press ON OFF button again X Note This Auxiliary heat function is only for H W 12cA03 H W 12eA04 For heat pump type Auxiliary Heat function In Heating if push Auxiliary Heat switch to ON position when room temperature is no more than fl 20 C after compressor has started for I minute Auxiliary Heat function starts when room temperature is over 25 C or during defrosting Auxiliary Heat function stops To cancel Auxiliary oooo WRELESS REMOTE CONTROL heat function just push to OFF position Aumn Ike fmrrm inn 10
