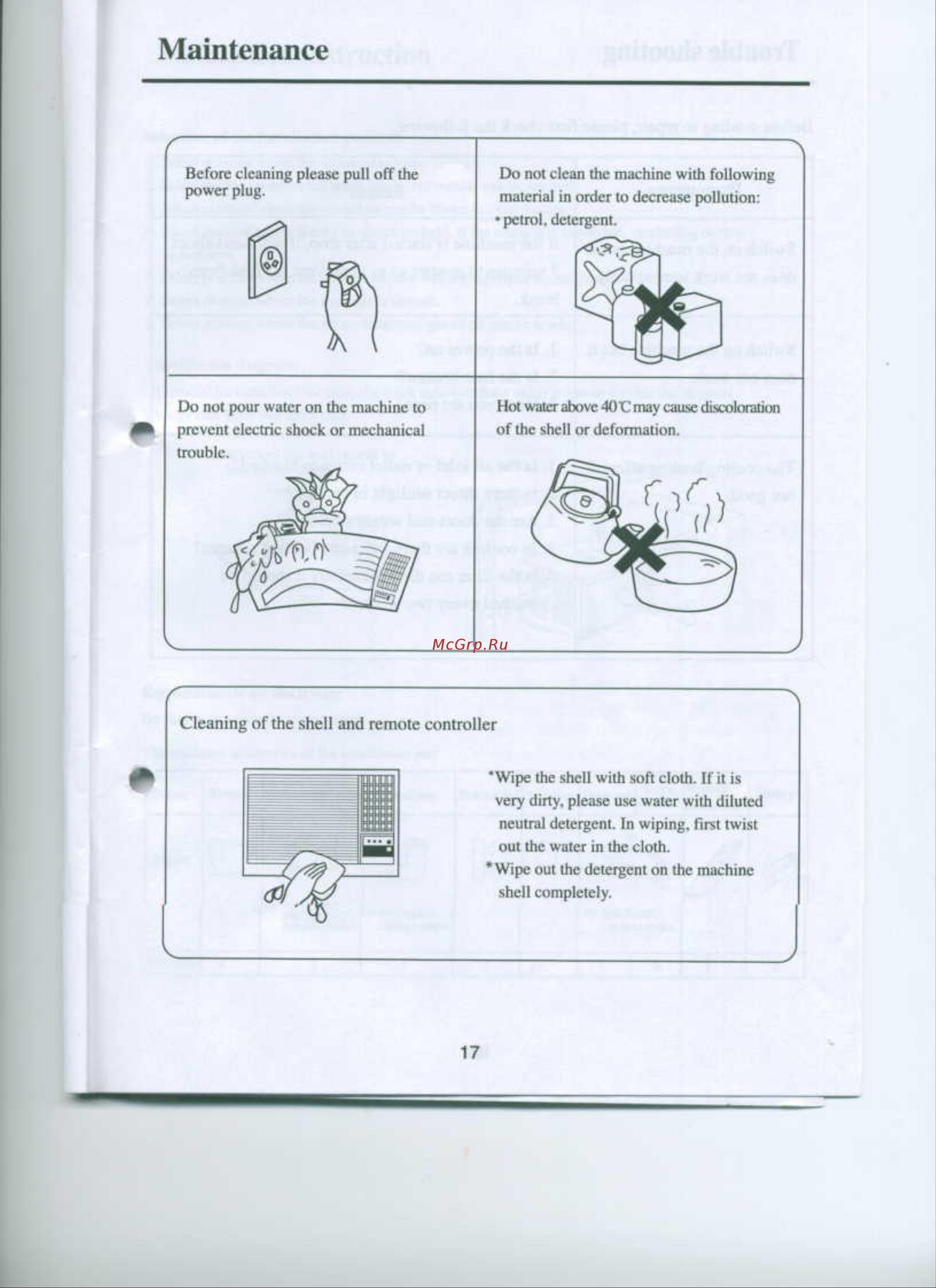

Maintenance Before cleaning please pull off the power plug Do not clean the machine with following material in order to decrease pollution petrol detergent Do not pour water on the machine to Hot water above 40 C may cause discoloration prevent electric shock or mechanical of the shell or deformation trouble Cleaning of the shell and remote controller Wipe the shell with soft cloth If it is very dirty please use water with diluted neutral detergent In wiping first twist out the water in the cloth Wipe out the detergent on the machine shell completely 17
