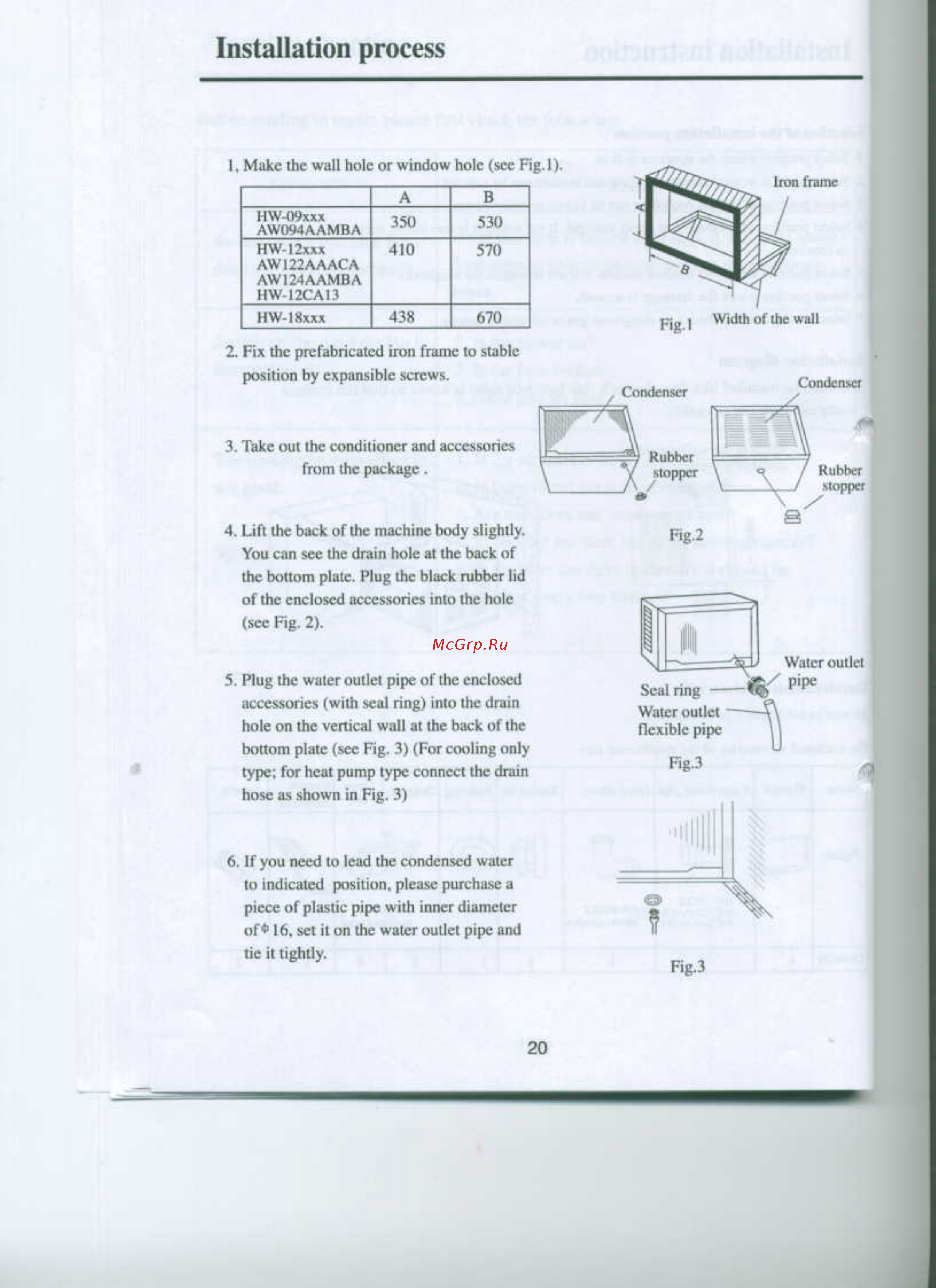

Installation process 1 Make the wall hole or window hole see Fig l Iron frame A B HW 09xxx AW094AAMBA HW 12xxx AW122AAACA AW124AAMBA HW I2CAI3 350 530 410 570 HW 18xxx 438 Ö 670 Fig 1 Width of the wall 2 Fix the prefabricated iron frame to stable position by expansible screws Condenser Condenser 3 Take out the conditioner and accessories Rubber stopper from the package 4 Lift the back of the machine body slightly Rubber V V_ stopper Fig 2 You can see the drain hole at the back of the bottom plate Plug the black rubber lid of the enclosed accessories into the hole see Ftg 2 III 5 Plug the waler outlet pipe of the enclosed Seal ring V accessories with seal ring into the drain Water outlet flexible pipe hole on the vertical wall at the back of the bottom plate see Fig 3 For cooling only Fig 3 type for heat pump type connect the drain hose as shown in Fig 3 6 If you need to lead the condensed waler to indicated position please purchase a piece of plastic pipe with inner diameter of 16 set it on the waler outlet pipe and lie it tightly Fig 3 20 Water outlet pipe
