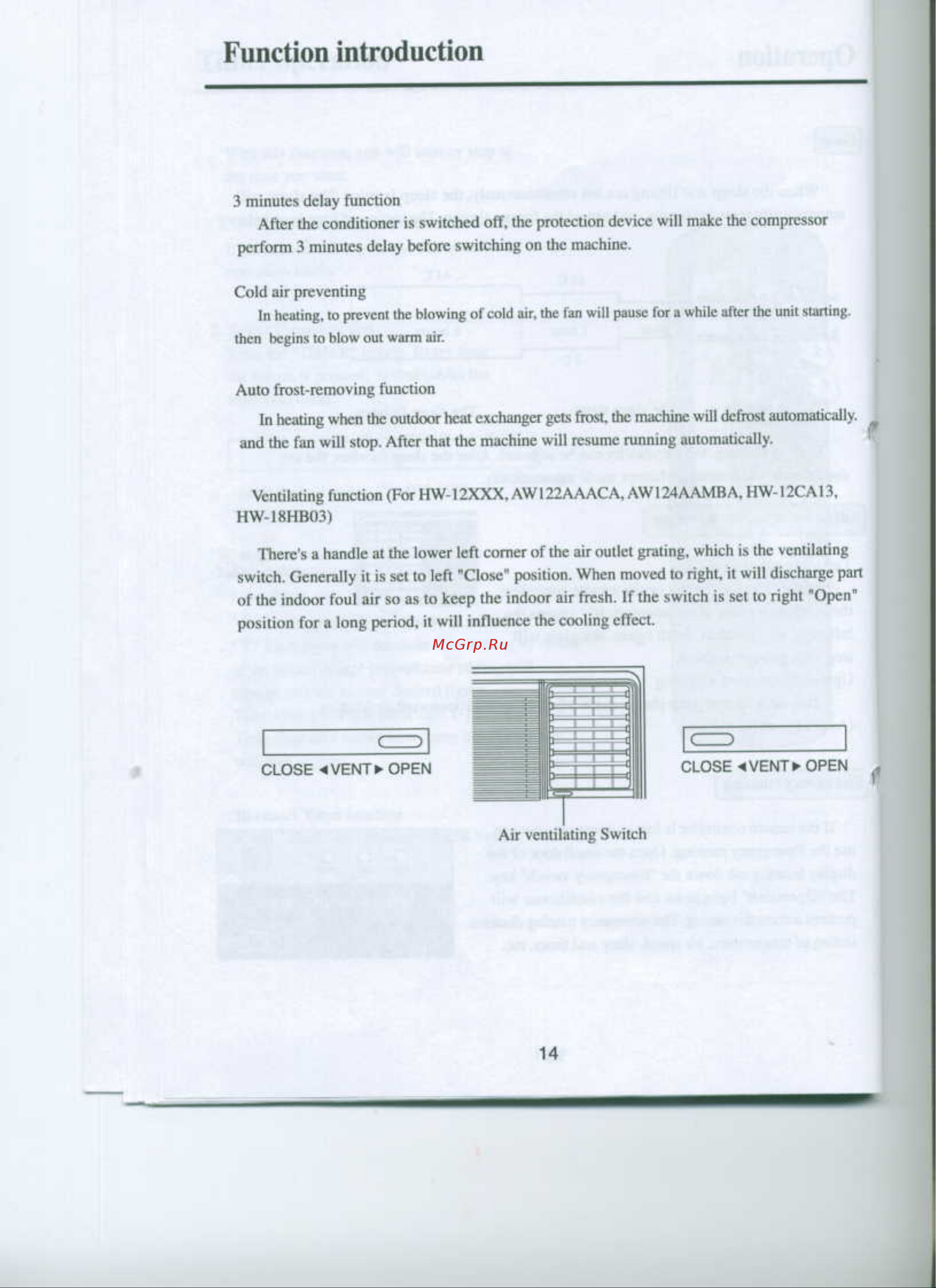

Function introduction 3 minutes delay function After the conditioner is switched off the protection device will make the compressor perform 3 minutes delay before switching on the machine Cold air preventing In heating to prevent the blowing of cold air the fan will pause for a while after the unit starting then begins to blow out warm air Auto frost removing function In heating when the outdoor heat exchanger gets frost the machine will defrost automalicidly and the fan will stop After that the machine will resume running automatically Ventilating function For HW 12XXX AW 122AAACA AW 124AAMB A HW 12CA13 HW I8HBO3 There s a handle at the lower left comer of the air outlet grating which is the ventilating switch Generally it is set to left Close position When moved to right it will discharge part of the indoor foul air so as to keep the indoor air fresh If the switch is set to right Open position for a long period it will influence the cooling effect ______________ ŒZD CLOSE VENT OPEN CLOSE VENT OPEN Air ventilating Switch 14
