ECO - LOGIK
9
EN
cod. 3541A495 - Rev. 00 - 07/2018

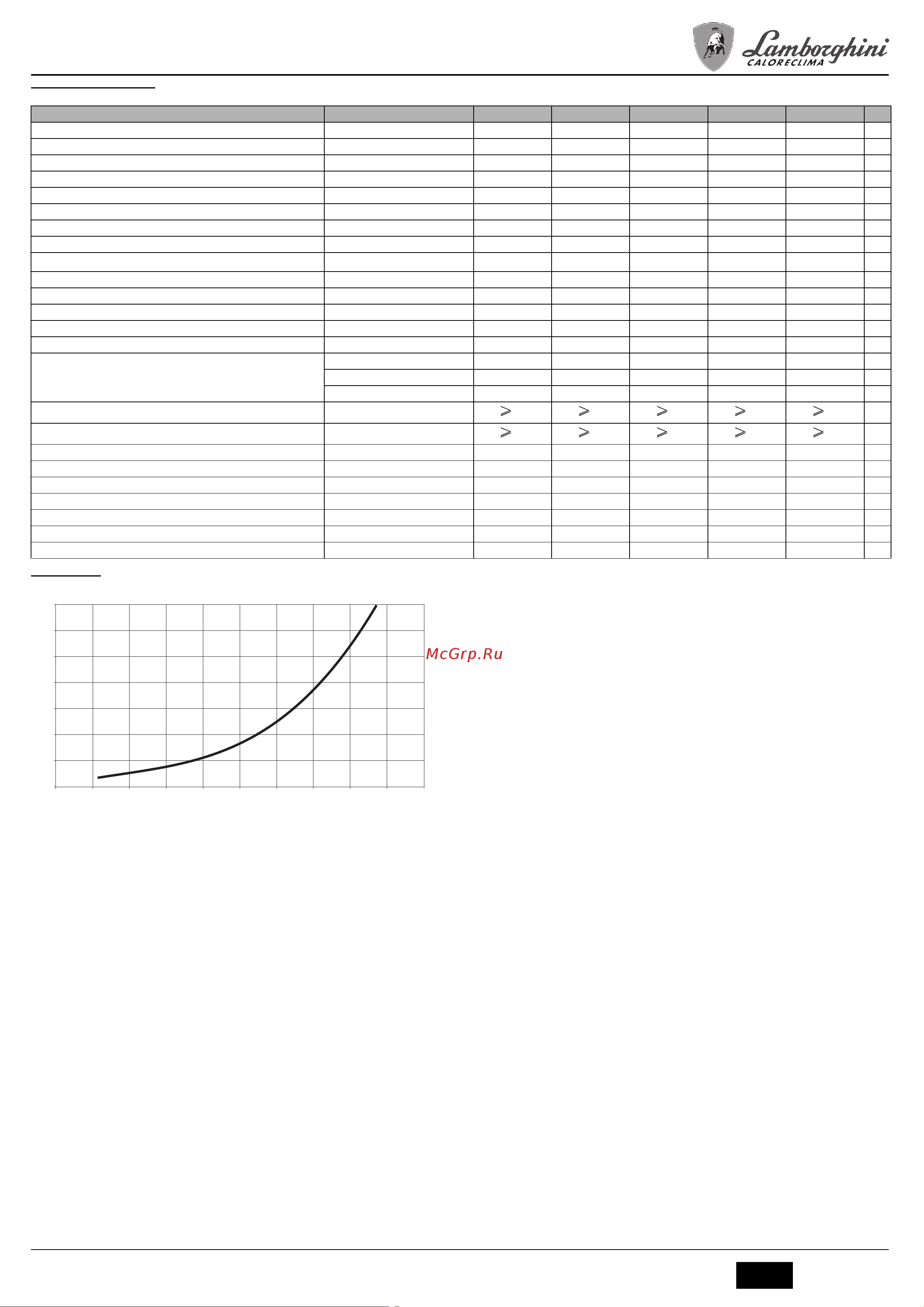

5.1 Technical data table
The column on the right gives the abbreviation used on the data plate.
5.2 Diagrams
Pressure loss
fig. 5 - Pressure loss
Data Unit ECO - LOGIK 3 ECO - LOGIK 4 ECO - LOGIK 5 ECO - LOGIK 6 ECO - LOGIK 7
Heat output Wood kW 19 27 36 43 50 (P)
Heat output Coke kW 22.5 32.5 42.5 52.5 62.5 (P)
Heat output Pellets kW 22 30 36 42 48 (P)
Efficiency Wood %7778787878.5
Efficiency Coke % 79 79.5 80 80.5 81
Efficiency Pellets % 88.48 88.66 88.7 89.02 89.3
Max. working pressure bar.44444
Water content L. 26 30 34 38 42
Chamber volume
dm
3
48 68 88 108 128
Loading opening dimensions Wood/Coke mm 384x210 384x210 384x210 384x210 384x210
Temperature adjustment range Wood/Coke °C 30-90 30-90 30-90 30-90 30-90
Max. heating temperature Wood/Coke °C 95 95 95 95 95
Recommended temperature setting °C >60 >60 >60 >60 >60
Boiler return min. temperature °C 50 50 50 50 50
Safety coil cooling
water supply line requirements
Min. pressure
- bar 2.0 2.0 2.0 2.0 2.0
Min. flow rate
- l/min1010101010
Max. temperature
- °C 25 25 25 25 25
Duration of one wood load h
2.5 2.5 2.5 2.5 2.5
Duration of one coke load h
4.5 4.5 4.5 4.5 4.5
Min. flue draught Wood Pa 12 14 16 18 20
Min. flue draught Coke Pa8 10152025
Min. flue draught Pellets Pa 23 25 28 30 32
Efficiency class EN303-5 - WOOD 33333
Efficiency class EN303-5 - PELLETS 55555
Efficiency class EN303-5 - PELLETS 55555
Empty weight kg 193 241 289 337 385
14
12
10
8
6
4
2
0
mbar
0
500
lt/h
1000 1500 1500 2000 2500 3000 3500 4000 4500
