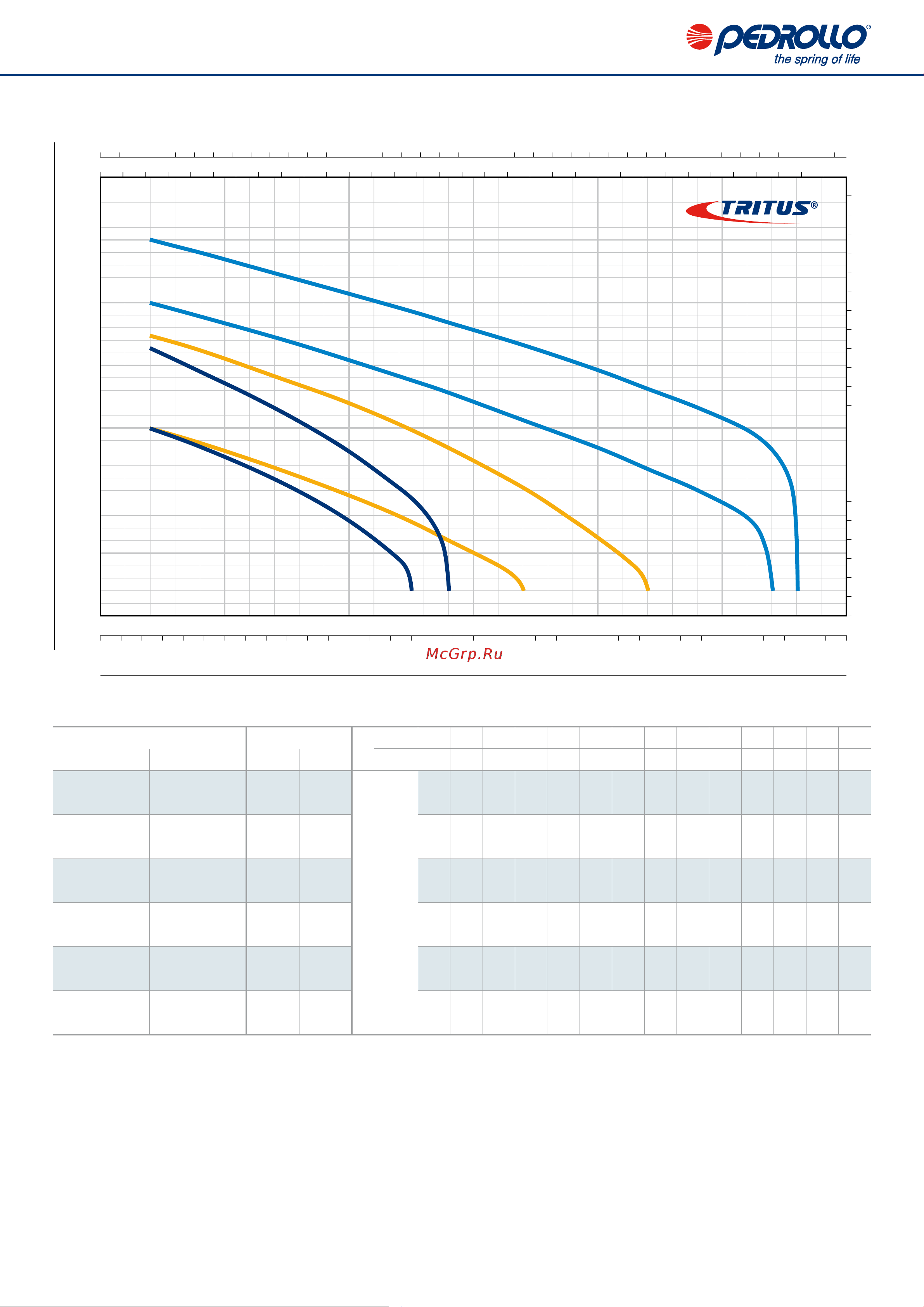

CHARACTERISTIC CURVES AND PERFORMANCE DATA 50 Hz n= 2900 min 1
Flow rate Q
4
Head H (metres)
4
Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.
MODEL POWER (P)
Q
m³/h
0 1.2 2.4 3.6 4.8 6.0 7.5 8.4 10.2 12 13.2 14.4 16.2 16.8
Single-phase Three-phase kW HP
l/min
0 20 40 60 80 100 125 140 170 200 220 240 270 280
TRm 0.75 TR 0.75 0.75 1
H
metres
16.5 15 13.5 11.8 10 7.5 2
TRm 0.9 TR 0.9 0.9 1.25
16 15 13.8 12.5 11.1 9.6 7. 5 6 2
TRm 1.1 TR 1.1 1.1 1.5
23 21.5 19.5 17.5 15.5 13 9.5 2
TRm 1.3 TR 1.3 1.3 1.75
23.5 22.5 21.2 19.8 18.4 17 14.8 13.4 10.2 6.2 2
TRm 1.5 TR 1.5 1.5 2
26 25 24 22.8 21.7 20.4 18.8 17.8 15.6 13.4 11.7 10 2
– TR 2.2 2.2 3
31 30 29 28 26.8 25.7 24.3 23.5 21.5 19.5 18 16.5 13.2 2
