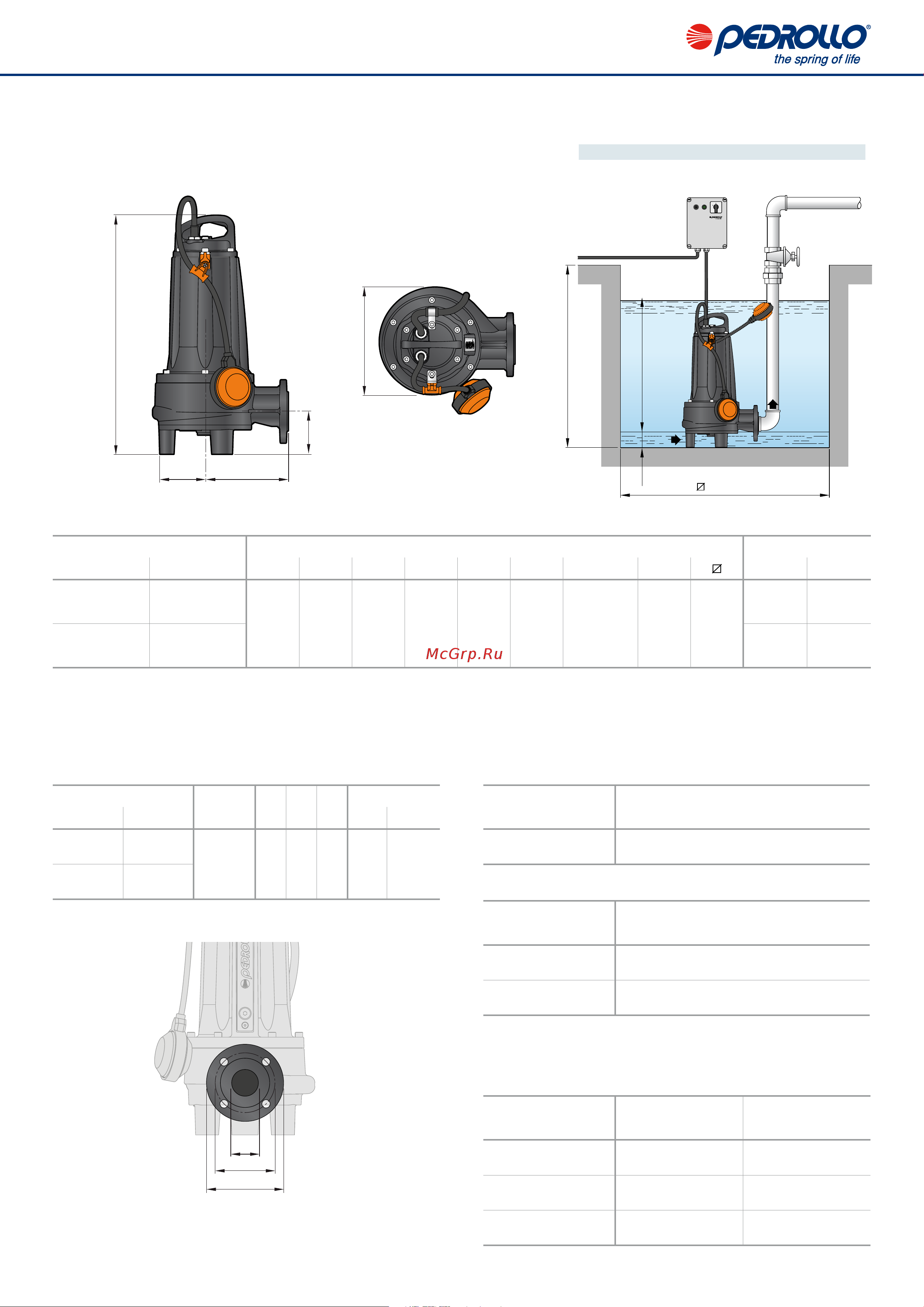

DIMENSIONS AND WEIGHT
p (minimum)
(minimum)
Standard installation (for single-phase version)
MODEL VOLTAGE
Single-phase 230 V
TRm 1.5 10.0 A
MODEL VOLTAGE
Three-phase 400 V
TR 1.5 3.7 A
TR 2.2 5.5 A
MODEL DIMENSIONS mm kg
Single-phase Three-phase a b c h h1 d e p
1~ 3~
TRm 1.5 TR 1.5
170 108 221 489 87. 5 95 variable 800 800
45.5 42.0
– TR 2.2 – 44.0
FLANGED PORT
PALLETIZATION
MODEL GROUPAGE CONTAINER
n. pumps n. pumps
TRm 1.5 10 15
TR 1.5 12 18
TR 2.2 12 18
ABSORPTION
MODEL FLANGE F K D HOLES
Single-ph. Three-ph. DN
mm mm
N° Ø (mm)
TRm 1.5 TR 1.5
40
(PN6)
1½" 100 130 4 14
– TR 2.2
TRITUS 1.5 – 2.2 | 50 Hz
