TRITUS 0.75 – 0.9 – 1.1 – 1.3
0
1
11
5
7
8
10
9
7
4
6
1
2
3

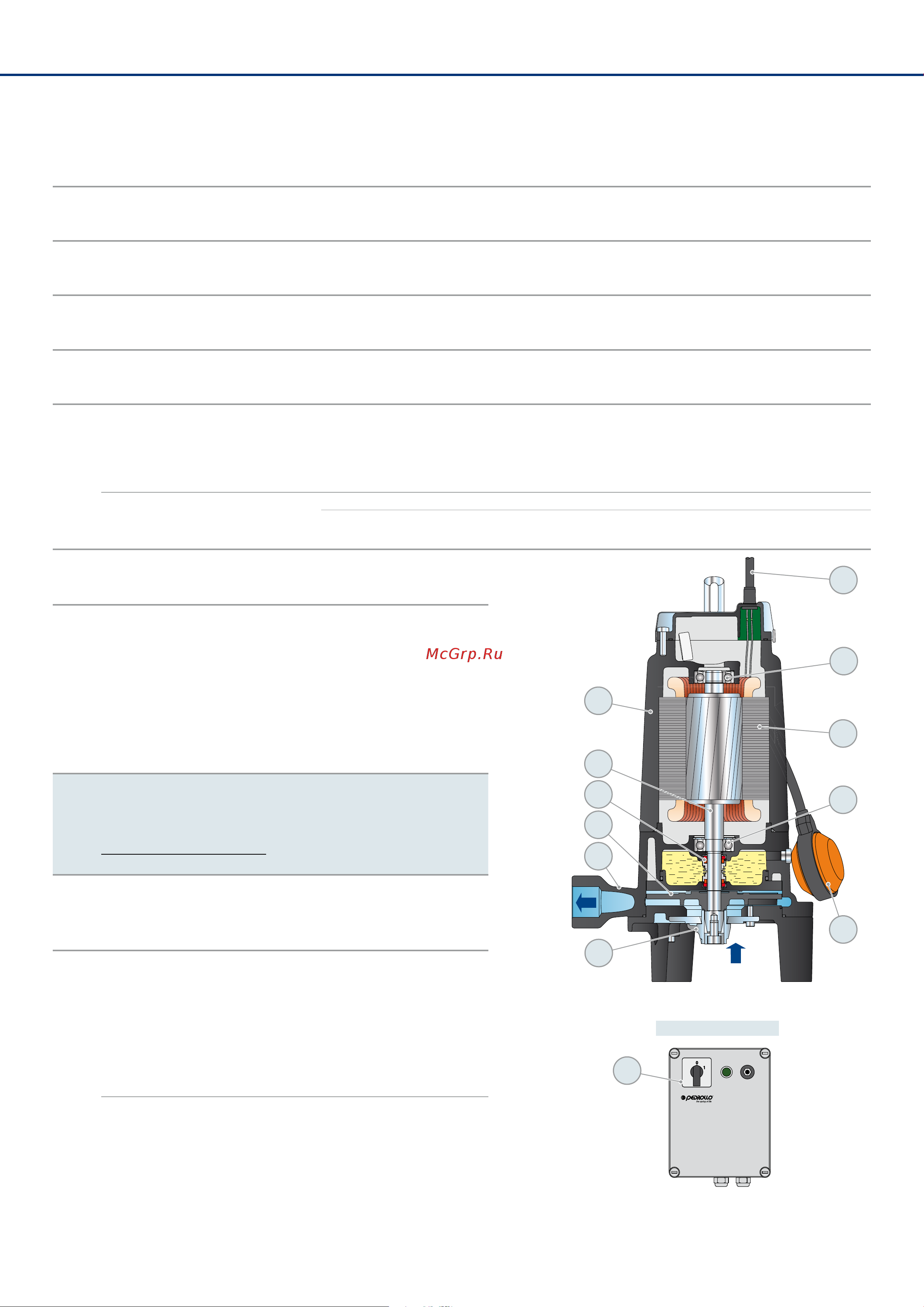

POS. COMPONENT CONSTRUCTION CHARACTERISTICS
1 PUMP BODY Cast iron with an Epoxy Electro Coating treatment, with threaded port in compliance with ISO 228/1
2 IMPELLER Technopolymer open type
3 GRINDER Tempered AISI 440C stainless steel
4 MOTOR SHAFT Stainless steel AISI 431
5 MOTOR CASING Cast iron with an Epoxy Electro Coating treatment
6 SHAFT WITH DOUBLE MECHANICAL SEAL SEPARATED BY AN OIL CHAMBER
Seal Shaft Position Materials
Model Diameter Stationary ring Rotational ring Elastomer
MG1-14D SIC Ø 14 mm
Motor side Silicon carbide Graphite NBR
Pump side Silicon carbide Silicon carbide NBR
7 BEARINGS 6203 ZZ-C3E / 6203 ZZ-C3E
8 ELECTRIC MOTOR
TRm: single-phase 220-230 V - 50 Hz
with thermal overload protector incorporated into the winding
TR: three-phase 400 V - 50 Hz
– Insulation: class F
– Protection: IP X8
9
POWER CABLE
“H07 RN-F” type
Standard length 10 met
res
10 FLOAT SWITCH
(only for single-phase versions)
11 CONTROL BOX
(only for single-phase versions)
With manual overload cut-out and with capacitors for starting and
operating.
Pump Single-phase
(220-230 V o 240 V)
Capacitance of the
operating capacitor
Capacitance of the
starting capacitor
TRm 0.75
TRm 0.9
TRm 1.1
TRm 1.3
25 μF 450 VL 80 μF 450 VL
Control box
(only for single-phase versions)
Standard features
50 Hz | TRITUS 0.75 – 0.9 – 1.1 – 1.3
