![Pedrollo TRITUS TRm 0.9 [7/8] Base pedestal kit tritus](/views2/1828390/page7/bg7.png)
448
(A) (B)
7
8
9
2
10
4
3
5
1
6

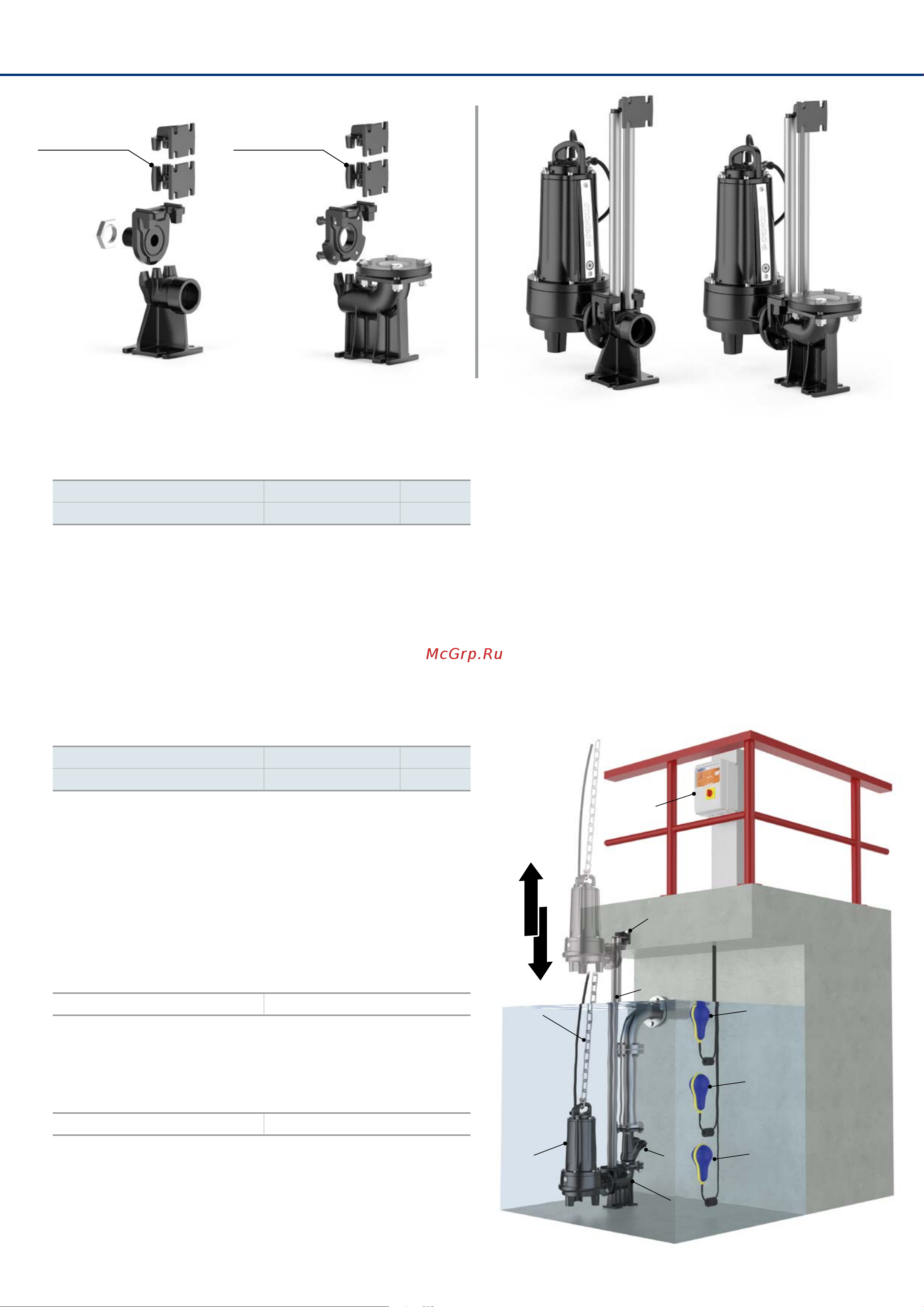

STANDARD INSTALLATION
1. Pump
2. Footing connection
3. Guide tubes
4. Support for the guide tubes
5. Lifting chain
6. Control box
7. Alarm oat switch
8. Starting oat switch
9. Stop oat switch
10. Non-return valve
BASE PEDESTAL KIT TRITUS
(not included)
Intermediate support
(not included)
Intermediate support
A) HORIZONTAL DELIVERY VERSION
WITH ¾" GUIDE TUBES
For TR 0.75, TR 0.9, TR 1.1, TR 1.3 Cod. ASSPTRITUS11
DN 2"
For TR 1.5, TR 2.2 Cod. ASSPTRITUS22
DN 2"
Kit consisting of:
– footing connection
– slide guide
(with ring nut and seal for TR 0.75, TR 0.9, TR 1.1, TR 1.3,
with screws and seal for TR 1.5 and TR 2.2)
– support for the guide tubes
B) VERTICAL DELIVERY VERSION
WITH ¾" GUIDE TUBES
For TR 0.75, TR 0.9, TR 1.1, TR 1.3 Cod. ASSPTRITUS11V
DN 2½"
For TR 1.5, TR 2.2 Cod. ASSPTRITUS22V
DN 2½"
Kit consisting of:
– footing connection complete with counterange
– slide guide
(with ring nut and seal for TR 0.75, TR 0.9, TR 1.1, TR 1.3,
with screws and seal for TR 1.5 and TR 2.2)
– support for the guide tubes
GUIDE TUBES (AISI 304 stainless steel)
Cod. 54SARTG005 Ø ¾"
In order to ensure stability, insert one intermediate support every
two metres of guide tube
Maximum length of the tube plank: 6 metres
INTERMEDIATE SUPPORT (To be ordered separately)
Cod. 859SV340INTFA For Ø ¾" guide tubes
50 Hz | BASE PEDESTAL KIT TRITUS
