CQ-DP153W
19
CQ-DP153W
18
Battery Notes
Remove and dispose of an old battery immediately.
Battery Information:
• Battery type: Panasonic lithium battery (CR2025) (included)
• Battery life: Approximately 6 months with normal use (at room temperature)
E
N
G
L
I
S
H
14
E
N
G
L
I
S
H
13

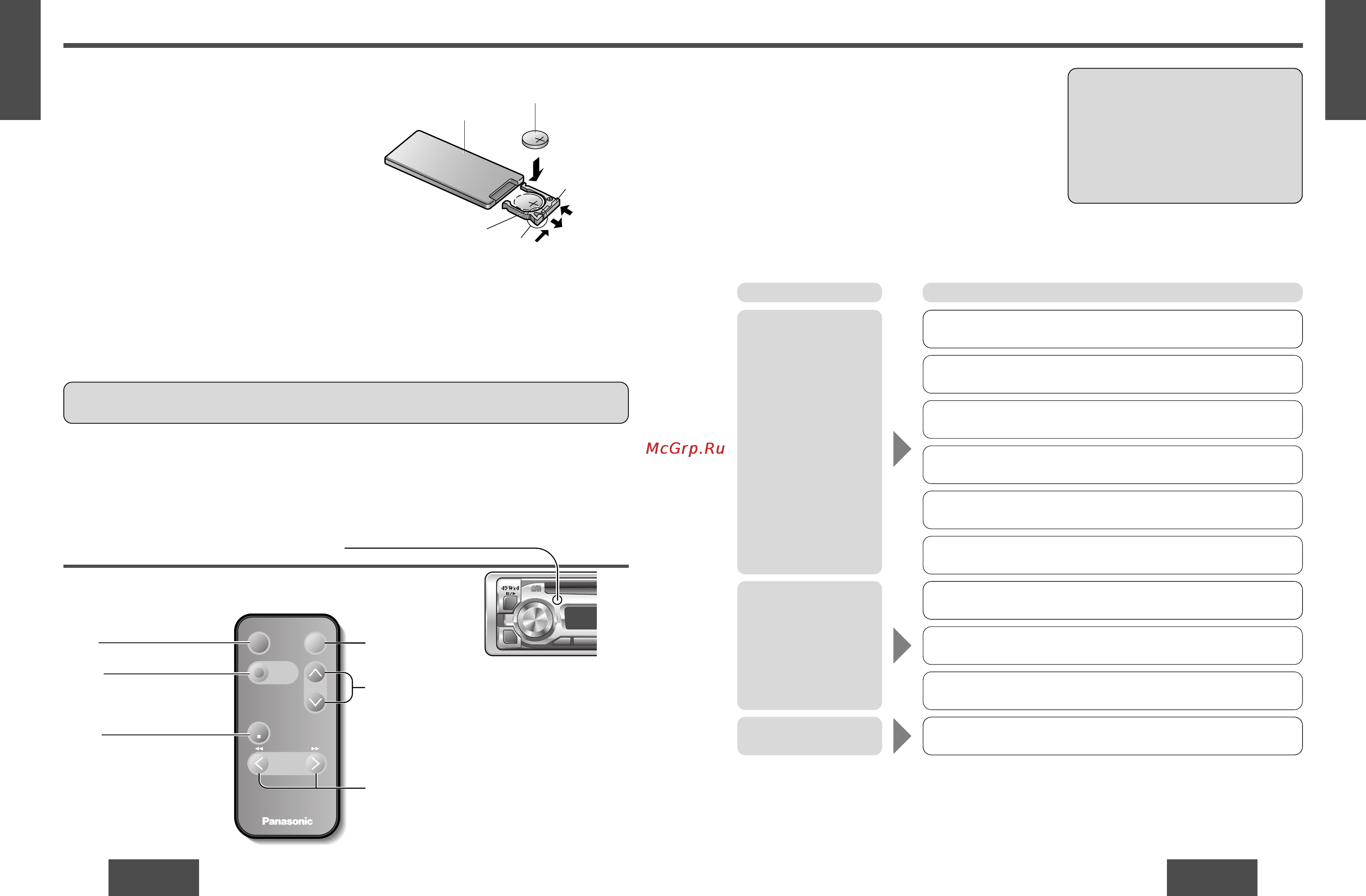

Remote Control Unit Preparation
Battery Installation
q Remove the battery holder.
Pull the battery holder by the position B while pushing
position A in the direction indicated by the arrow.
w Install the battery on the battery holder.
Place a battery in the holder with its “+” side facing up as
shown in the figure.
e Insert the battery holder.
Push the battery holder back into its original position.
Back side
Lithium battery
(included)
Battery holder
Position A
Position B
• Do not disassemble or short the battery. Do not throw a battery into a fire.
• Keep batteries away from children to avoid the risk of accidents.
• Be careful to observe proper local disposal rules when you dispose of batteries.
Control Reference Guide
Buttons of the remote control function in the same way as the controls on the main unit of the reference page.
Point the remote control unit at the main unit’s sensor.
Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
[MUTE]
(Mute)
(
➡ page 6)
[VOL] [j] [i]
(Volume )
[TUNE] [TRACK] [k] [l] [s] [d]
(Tune/track selection/track search)
(
➡ page 8, 11)
PWR
MODE
PRG
TUNE
TRACK
Car Audio
BAND/DISC UP
VOL
MUTE
(ATT)
[PWR]
(Power)
POWER
MUTE
7
1
APM
B
A
N
D
S
R
C
V
O
L
U
M
E
P
U
S
H
S
E
L
•
M
O
N
O
/
L
O
C
[MODE]
(Mode (source))
(
➡ page 8, 10)
Preliminary Steps
Check and take steps as described in the tables below.
If You Suspect Something Wrong
Immediately switch the power off.
Disconnect the power connector and check that there is neither
smoke nor heat from the unit before asking for repairs. Never try to
repair the unit by yourself because it is dangerous to do so.
Caution:
• Do not use the unit if it malfunctions or if
there is something wrong.
• Do not use the unit in irregular condition,
for example, without sound, or with smoke
or foul smell, which can cause ignition or
electric shock. Immediately stop using it
and call the store where you purchased it.
Troubleshooting
[BAND]
(Band)
(
➡ page 8)
No power.
Trouble
Car’s ignnition switch is not on.
➡Turn your car’s ignition switch to ACC or ON.
Cables are not correctly connected.
➡Connect cables correctly.
Battery cable is not correctly connected.
➡Connect the battery cable to the terminal that is always active.
Accessory cable is not correctly connected.
➡Connect the accessory cable to your car’s ACC source.
Grounding wire is not correctly connected.
➡Connect the grounding wire to a metal part of the car.
Fuse is burnt out.
➡Call the store where you purchased the unit.
Cause/Step
Troubleshooting Tips
❐ Common
No sound.
Mute is set to ON.
➡Set it to OFF.
Noise.
Grounding wire is not correctly connected.
➡Connect the grounding wire to a metal part of the car.
Cables are not correctly connected.
➡Connect cables correctly.
Condensation (dew).
➡Wait for a while before use.
q
w
e
