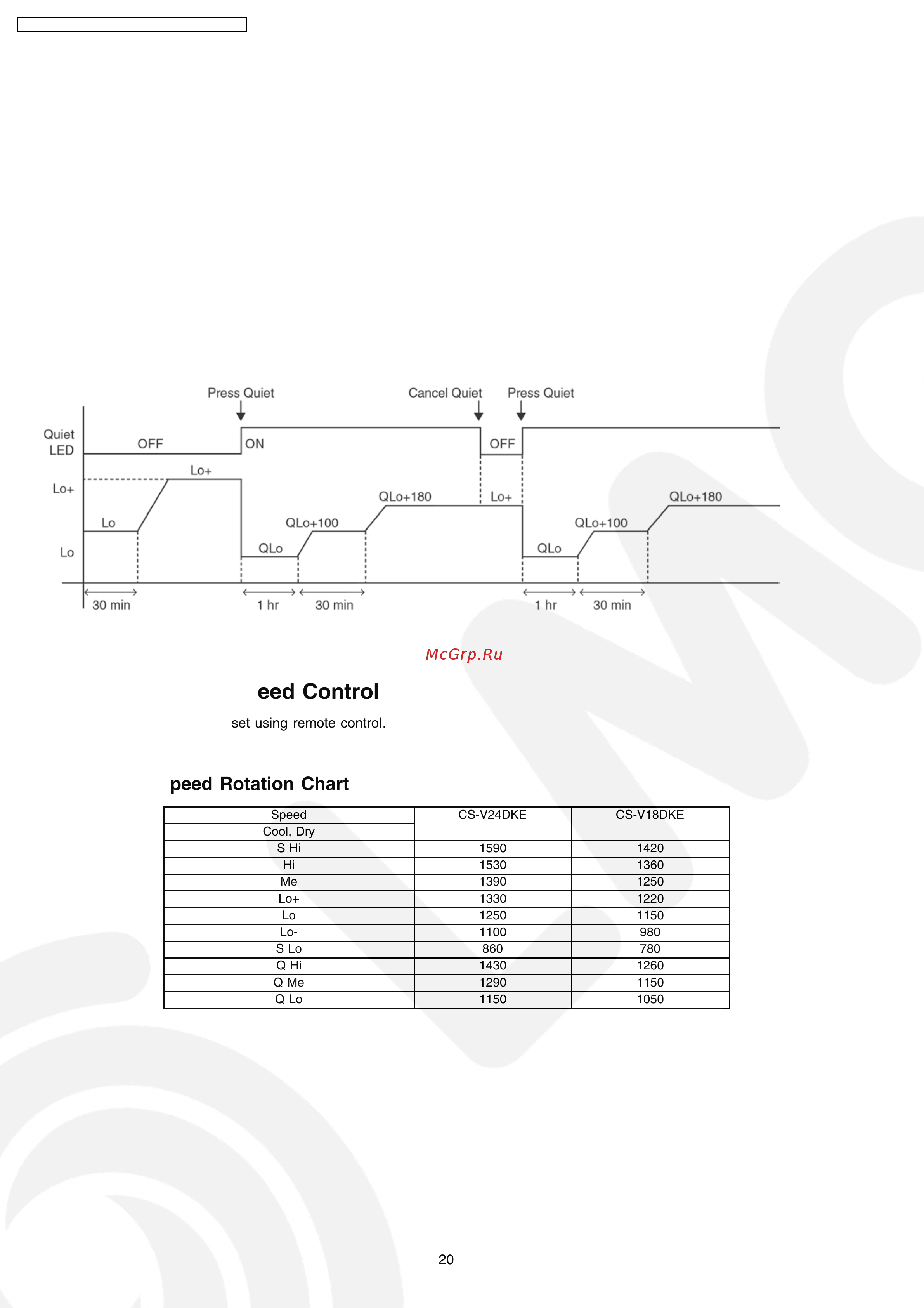

8.4.7. Anti-Dew Formation Control
• Purpose is to prevent dew formation on indoor unit air discharge area.
• The following conditions occur for 30 minutes continuously, anti-dew formation will activate:
− Remote Control setting temperature is less than 25°C.
− Compressor is on.
− Cooling operation mode.
− Indoor fan motor operate at low fan speed or QLo.
• This control is cancelled immediately when above condition is changed.
• Anti-Dew formation is control by:
1. Lo fan speed
Lo fan is changed to Lo+ fan
2. QLo fan speed
8.5. Indoor Fan Speed Control
• Indoor Fan Speed can be set using remote control.
8.5.1. Fan Speed Rotation Chart
Speed CS-V24DKE CS-V18DKE
Cool, Dry
SHi 1590 1420
Hi 1530 1360
Me 1390 1250
Lo+ 1330 1220
Lo 1250 1150
Lo- 1100 980
SLo 860 780
QHi 1430 1260
QMe 1290 1150
QLo 1150 1050
20
