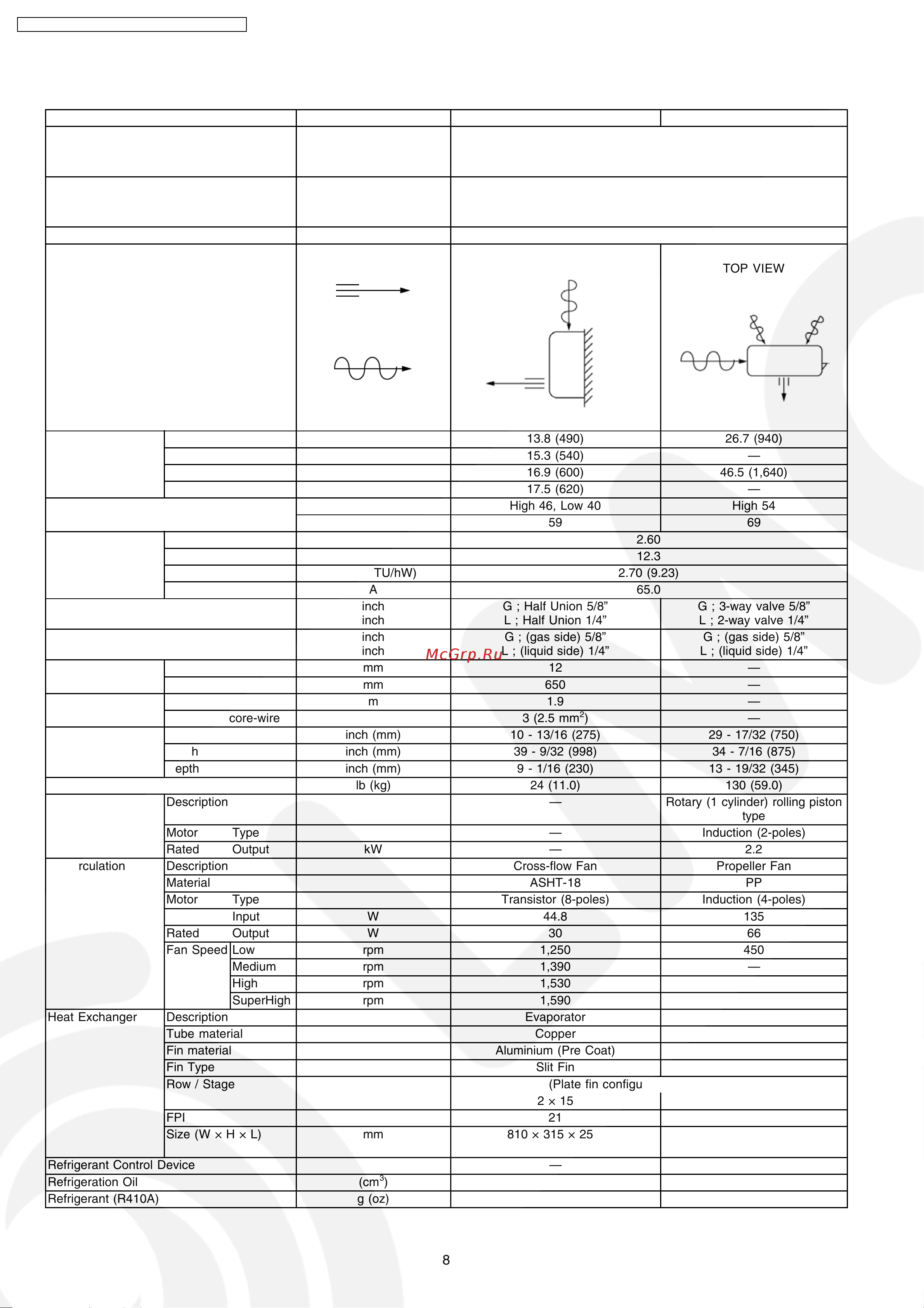

3.2. CS-V24DKE CU-V24DKE
Unit CS-V24DKE CU-V24DKE
Power Source (Phase, Voltage, Cycle) ø,V,Hz Single, 230, 50
Cooling Capacity kW (BTU/h) 7.03 (24,000)
Moisture Removal l/h (Pint/h) 4.0 (8.5)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) 13.8 (490) 26.7 (940)
Me m
3
/min (cfm) 15.3 (540) —
Hi m
3
/min (cfm) 16.9 (600) 46.5 (1,640)
SHi m
3
/min (cfm) 17.5 (620) —
Noise Level dB (A) High 46, Low 40 High 54
Power level dB 59 69
Electrical Data Input Power kW 2.60
Running Current A 12.3
EER W/W (BTU/hW) 2.70 (9.23)
Starting Current A 65.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 5/8”
L ; Half Union 1/4”
G ; 3-way valve 5/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (2.5 mm
2
) —
Dimensions Height inch (mm) 10 - 13/16 (275) 29 - 17/32 (750)
Width inch (mm) 39 - 9/32 (998) 34 - 7/16 (875)
Depth inch (mm) 9 - 1/16 (230) 13 - 19/32 (345)
Net Weight lb (kg) 24 (11.0) 130 (59.0)
Compressor Description — Rotary (1 cylinder) rolling piston
type
Motor Type — Induction (2-poles)
Rated Output kW — 2.2
Air Circulation Description Cross-flow Fan Propeller Fan
Material ASHT-18 PP
Motor Type Transistor (8-poles) Induction (4-poles)
Input W 44.8 135
Rated Output W 30 66
Fan Speed Low rpm 1,250 450
Medium rpm 1,390 —
High rpm 1,530 785
SuperHigh rpm 1,590 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2 × 15 2 × 34
FPI 21 18
Size (W × H × L) mm 810 × 315 × 25.4 850.5
870.5
× 714.0 × 25.4
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (cm
3
) — FV50S (1,130)
Refrigerant (R410A) g (oz) — 1,470 (51.9)
8
CS-V18DKE CU-V18DKE / CS-V24DKE CU-V24DKE
