Panasonic CU-E18DKD [43/122] Deice control

8.2.3.6. Deice Control

A. Deice operation (Normal Deice Operation)

1. Detection methods

Outdoor heat exchanger temperature sensor, timer.

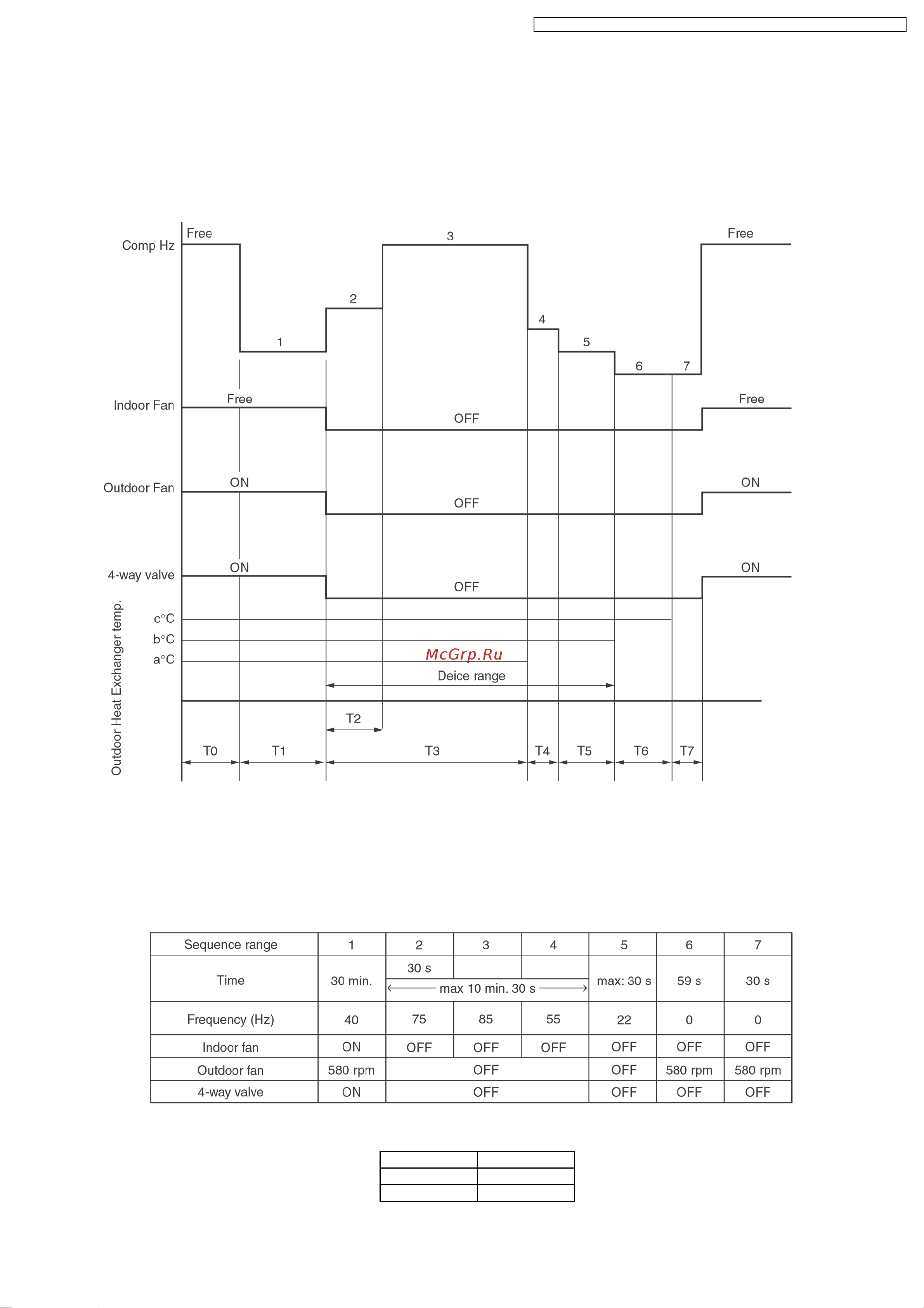

2. Deice operation time chart

Notes

a. During deice operation, the relationship between outdoor pipe temperature and time T1 is such operation will

proceed to next stage.

b. The deice will be performed only after 1 hour from when the operation has started.

c. When Comp. OFF by the sequence No. 1, 6, 7 compressor can restart back without 3 minutes waits (immediate

restart).

Outdoor heat exchanger temperature

a 15°C

b 18°C

c 25°C

CS-E15DKDW CU-E15DKD / CS-E18DKDW CU-E18DKD / CS-E21DKDS CU-E21DKD
